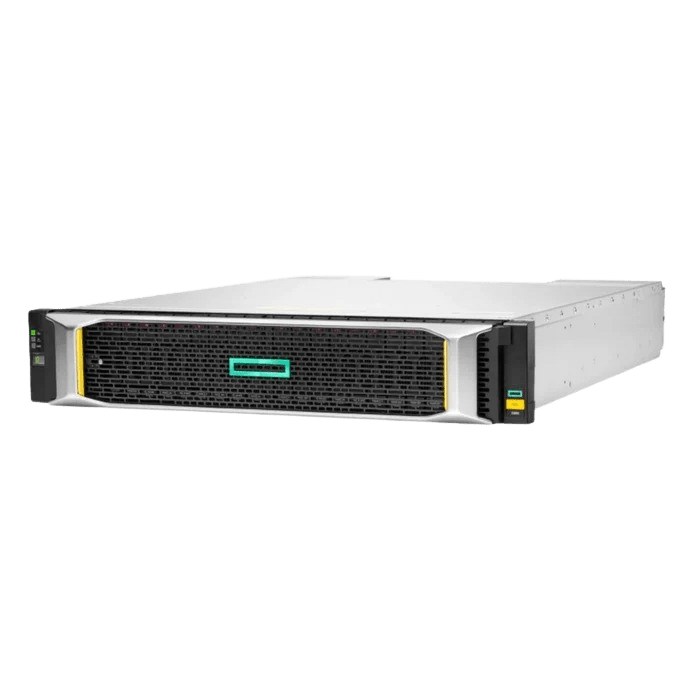

HPE MSA 2062 2U 24-Bay FC Storage Array with 3.84TB SSDs

The HPE MSA 2062 (R0Q80B) is a high-performance, 2U hybrid storage array with 24 SFF bays, dual 16Gb Fibre Channel controllers, and 3.84TB of included storage (2 x 1.92TB RI SSDs). It supports advanced data services like automated tiering, snapshots, and thin provisioning, making it ideal for SMBs running virtualization, databases, or data protection workloads. Expandable up to 96 drives, it offers scalable performance, high availability with dual-active controllers, and efficient management through HPE SMU and RESTful APIs.

Specification for HPE MSA 2062 Storage Chassis (R0Q80B)

---

Key Specifications

Model Information

• Model Name: HPE MSA 2062
• Part Number: R0Q80B
• Form Factor: 2U Rackmount

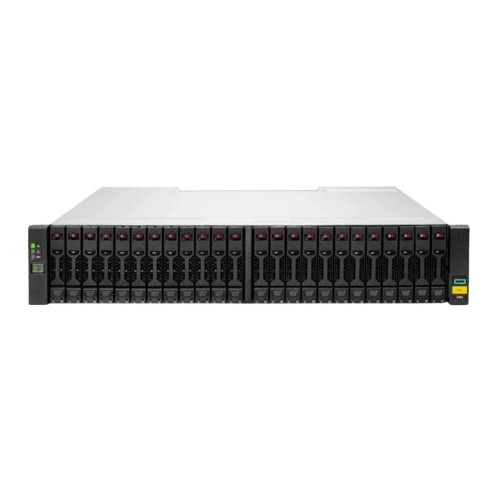

Drive Bays

• Supported Drive Type:
  • 2.5-inch Small Form Factor (SFF) drives
  • Compatible with SSDs and HDDs
• Total Bays: Up to 24 SFF hot-pluggable drives
• Preconfigured Drives: Includes 2 x 1.92TB Read-Intensive (RI) SSDs

Performance

• Host Interface:
  • Dual 16Gb Fibre Channel (FC) controllers
  • Backward-compatible with 8Gb and 4Gb FC
• Maximum Bandwidth: Up to 16Gbps per port

Storage Capacity

• Included Usable Storage:
  • 3.84TB (using the 2 x 1.92TB SSDs)
• Maximum Raw Capacity:
  • SFF Chassis: Up to 96TB (with 24 x 4TB HDDs)
  • Expandable with additional disk enclosures

Controllers

• Controller Features:
  • Dual-active controllers for high availability
  • 4GB cache per controller
  • Data Tiering and Adaptive Caching for improved performance

RAID Support

• RAID Levels:
  • 0, 1, 5, 6, 10
• Advanced Features:
  • Virtual Storage Pools
  • Automated Tiering

Management

• Management Interface:
  • HPE Storage Management Utility (SMU)
  • Command Line Interface (CLI)
  • RESTful API support
• Monitoring: Real-time performance and health monitoring

Connectivity

• Host Ports:
  • 4 x 16Gb Fibre Channel (FC) ports
• Expansion Ports:
  • Support for additional HPE MSA 2060 enclosures

Power and Cooling

• Power Supplies:
  • Dual hot-pluggable, redundant power supplies
  • Rated at 580W each
• Cooling:
  • Redundant hot-pluggable fan modules

Physical Dimensions

• Height: 3.5 inches (8.75 cm)
• Width: 17.5 inches (44.45 cm)
• Depth: 19.0 inches (48.26 cm)
• Weight: Approximately 34 lbs (15.42 kg) without drives

Environmental Specifications

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-Operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Relative Humidity: 10% to 90% (non-condensing)

Software Features

• Data Services:
  • Thin Provisioning
  • Snapshot and Volume Copy
  • Remote Replication (via optional licensing)
• Advanced Data Reduction: Compression and deduplication for SSDs

Warranty

• Hardware Warranty:
  • 3 years parts, labor, and on-site support
• Included Software Licensing:
  • HPE MSA Advanced Data Services Suite (no additional cost)

Scalability

• Expandable Drive Bays: Up to 96 drives with expansion enclosures
• Supported Expansion Chassis: HPE MSA 2060 Disk Enclosures
