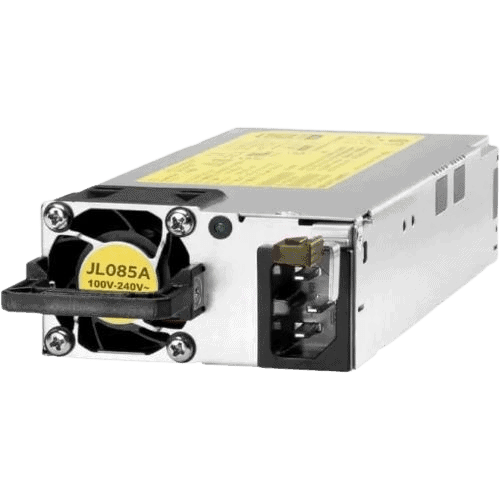

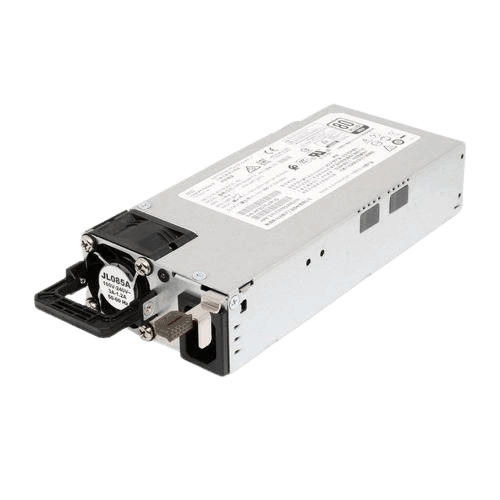

HPE Aruba X371 12VDC 250W Power Supply Switch Component

The HPE Aruba X371 12VDC 250W power supply is designed for Aruba network switches, providing reliable 12V DC power. With a 100-240VAC input range, it offers energy-efficient, hot-swappable operation for uninterrupted performance in Aruba 2920, 3810M, and similar switches.

General Information:

• Product Name: HPE Aruba X371 12VDC 250W 100-240VAC Power Supply
• Part Number: Typically JL261A (for HPE Aruba X371 models)
• Type: Hot-swappable power supply unit (PSU) for Aruba network switches
• Power Output: 250W
• Input Voltage: 100-240VAC (Universal AC input)
• Output Voltage: 12VDC
• Form Factor: Internal, for use in Aruba switch models that support this power supply.

Key Features:

• High Efficiency: Designed to provide high power efficiency, ensuring reliable operation and reducing energy costs.
• Hot-Swappable: Allows for the power supply to be replaced or serviced without shutting down the switch, ensuring continuous uptime and minimizing disruptions.
• Wide Input Voltage Range: Supports input voltages from 100V to 240V AC, providing flexibility for deployment in different regions and environments.
• Compatibility: Specifically designed for Aruba X371 and compatible switches in the Aruba 2920, 3810M, and similar Aruba models.
• Reliability: Built to deliver consistent and stable power to the switch, ensuring reliable network operation.

Electrical Specifications:

• Power Output: 250 Watts
• Output Voltage: 12V DC (Direct Current)
• Efficiency: Typically 80%+ efficiency, depending on load
• Input Voltage Range: 100-240VAC, 50/60 Hz
• Input Current: Typically around 3.5A at 100VAC and 1.7A at 240VAC (varies by voltage)
• Power Factor Correction (PFC): Active PFC for energy efficiency and better power quality

Environmental and Physical Specifications:

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 10% to 90% non-condensing
• Form Factor: Designed for internal use in compatible Aruba switch chassis
• Cooling: Internal fan or passive cooling, depending on the specific switch model
• Dimensions: Typically about 7.5 x 3.5 x 1.5 inches (varies depending on the switch model)

Compatibility:

• Switch Compatibility: Compatible with Aruba X371 and other Aruba switches that require 12V DC input, such as the Aruba 2920, Aruba 3810M, and similar models in the Aruba Series.
• Redundancy: Can be used in configurations that support redundant power supplies for improved availability and failover capability.

Certifications and Compliance:

• Certifications:
  • UL, CE, and other safety certifications.
  • RoHS compliant.
  • Compliance with international standards for energy efficiency and safety.

Additional Features:

• Low Noise Operation: Designed to operate with low noise, suitable for deployment in office and network environments.
• Energy Saving: Optimized for energy-saving operation with intelligent power management.
