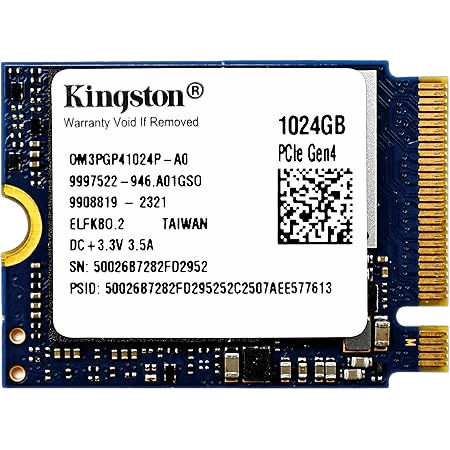

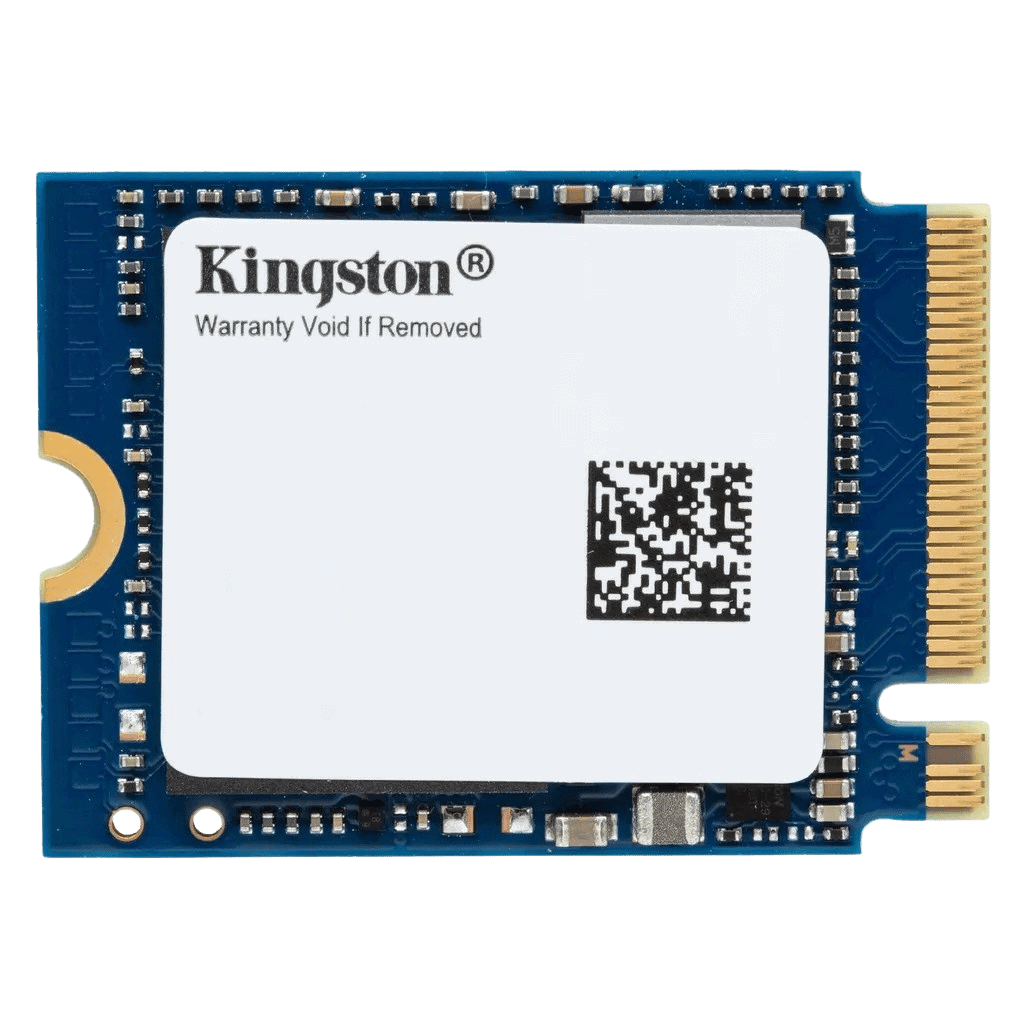

Kingston 1024GB NVMe 2230 3D Internal SSD

The Kingston 1024GB NVMe 2230 3D Internal SSD  is a compact, high-performance storage solution designed for ultra-fast data access with speeds up to 2,500 MB/s. Built on 3D TLC NAND, it offers 1TB of reliable storage in an M.2 2230 form factor, perfect for laptops and compact systems. With a 5-year warranty, it ensures durability and long-term performance.

Kingston 1024GB NVMe 2230 3D Internal SSD

General Specifications:

• Capacity: 1024GB (1TB)
• Form Factor: M.2 2230
• Interface: NVMe PCIe Gen3 x4

Performance:

• Sequential Read Speed: Up to 2,500 MB/s
• Sequential Write Speed: Up to 2,000 MB/s
• Random 4K Read IOPS: Up to 300,000 IOPS
• Random 4K Write IOPS: Up to 250,000 IOPS

Reliability:

• MTBF (Mean Time Between Failures): 1.5 million hours
• Endurance: 300 TBW (Terabytes Written)
• Data Retention: 10 years at 25°C

NAND Technology:

• NAND Type: 3D TLC (Triple-Level Cell)

Power Consumption:

• Active Power Consumption: 3.3W
• Idle Power Consumption: 0.03W

Environmental:

• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Shock Resistance: 1500G/0.5ms
• Vibration Resistance: 20G Peak (10-2000Hz)

Physical Dimensions:

• Dimensions: 22mm x 30mm x 2.15mm (W x L x H)
• Weight: 6 grams

Compatibility:

• Operating System Support: Windows 10/11, Linux
• Compliance: RoHS, CE, FCC

Warranty:

• Warranty Period: 5 years

Features:

• Advanced Wear-Leveling: Ensures even distribution of data writes across the NAND flash.
• TRIM Support: Improves drive longevity by eliminating unused data blocks.
• S.M.A.R.T Monitoring: Provides drive health monitoring.
• ECC (Error Correction Code): Ensures data integrity by correcting errors.
• AES 256-bit Encryption: Hardware-based data encryption for added security.
