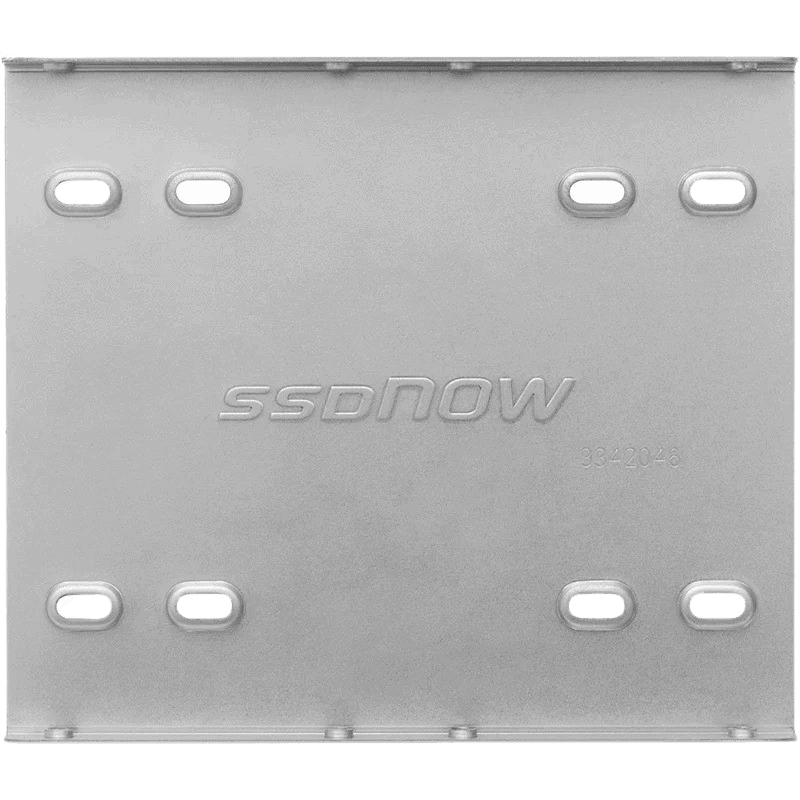

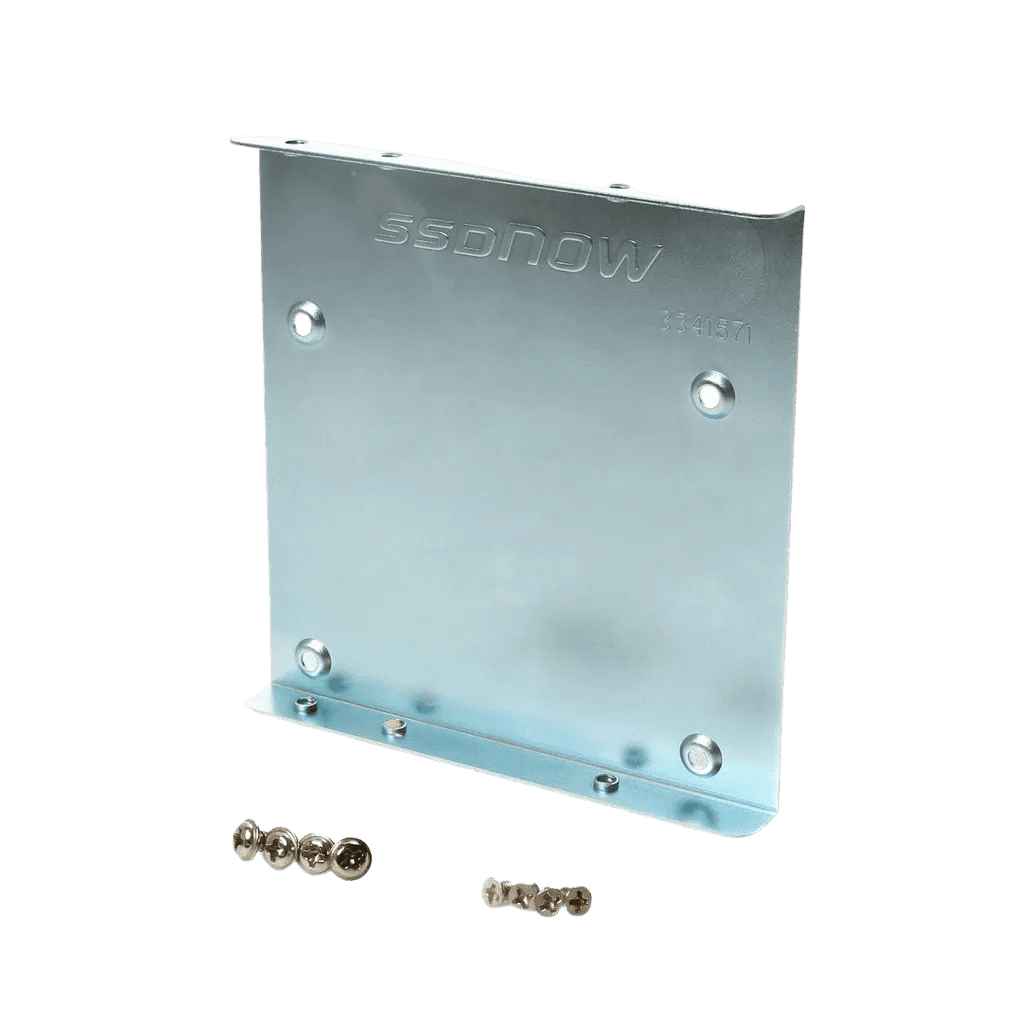

Kingston 2.5-inch to 3.5-inch Brackets and Screws

The Kingston 2.5-inch to 3.5-inch bracket allows you to mount a 2.5-inch SSD or HDD into a 3.5-inch drive bay. Made from durable steel or aluminum, it includes 8 screws for secure installation and features a sleek black powder-coated finish. Ideal for upgrading or expanding desktop storage.

Kingston 2.5-inch to 3.5-inch Brackets and Screws Specifications

Product Overview: The Kingston 2.5-inch to 3.5-inch bracket and screws kit is designed to securely mount a 2.5-inch solid-state drive (SSD) or hard drive (HDD) into a standard 3.5-inch drive bay of a desktop computer case. This bracket kit allows for easy installation, ensuring that smaller SSDs or HDDs can be used in systems with larger drive bays.

Specifications:

• Bracket Material:
  • High-quality, durable steel or aluminum alloy, providing sturdy support for the SSD/HDD.
• Bracket Dimensions:
  • Length: 115 mm (4.53 inches)
  • Width: 102 mm (4.02 inches)
  • Height: 12 mm (0.47 inches)
• Drive Compatibility:
  • Supports any 2.5-inch SSD or HDD with a standard form factor.
• Drive Bay Compatibility:
  • Fits into any standard 3.5-inch drive bay in desktop computers.
• Mounting Options:
  • Multiple mounting holes for flexible placement of the 2.5-inch drive within the bracket.
  • Pre-drilled holes for easy alignment and installation within the 3.5-inch bay.
• Screw Specifications:
  • Quantity:
    • Includes 8 screws total.
    • 4 screws for mounting the 2.5-inch drive to the bracket.
    • 4 screws for securing the bracket into the 3.5-inch drive bay.
  • Screw Type:
    • Standard Phillips head screws.
  • Screw Material:
    • Zinc-plated steel, providing corrosion resistance and durability.
  • Screw Size:
    • 2.5-inch drive mounting screws: M3 x 4mm
    • 3.5-inch bay mounting screws: 6-32 x 1/4 inch
• Weight:
  • Bracket only: Approximately 45 grams (1.59 ounces)
• Color:
  • Black powder-coated finish for corrosion resistance and a sleek appearance.
• Package Contents:
  • 1x 2.5-inch to 3.5-inch bracket
  • 4x M3 screws (for 2.5-inch drive)
  • 4x 6-32 screws (for 3.5-inch bay)
• Installation Instructions:
  • Simple step-by-step guide included for quick and easy installation.
• Compliance:
  • RoHS compliant
  • REACH compliant
• Warranty:
  • Manufacturer’s limited warranty of 2 years.

This bracket and screw kit by Kingston is ideal for users looking to upgrade their desktop systems with a 2.5-inch SSD or HDD while maintaining a neat and secure installation within a 3.5-inch bay.
