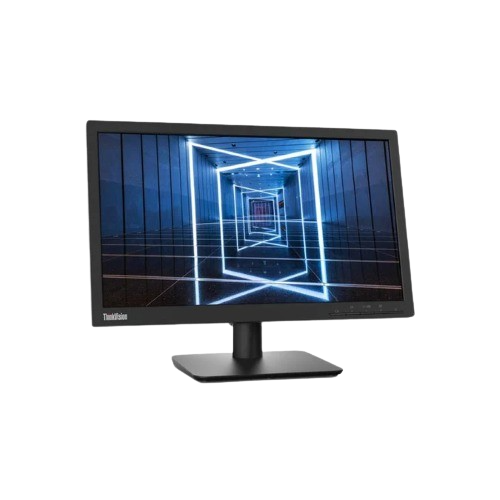

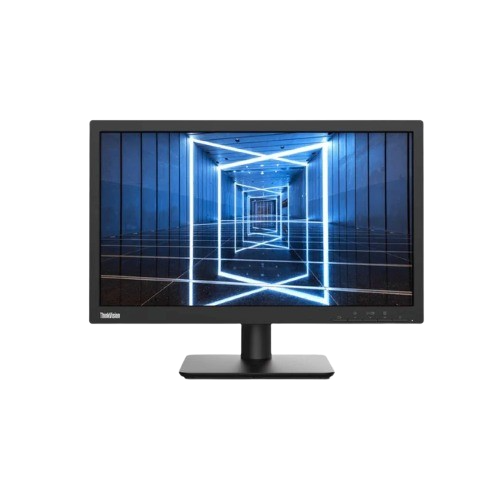

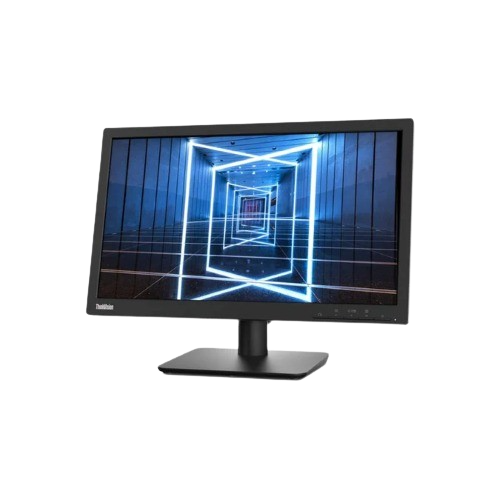

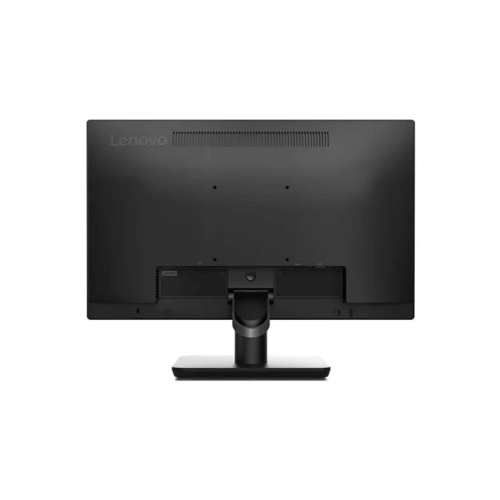

Lenovo ThinkVision E20-30 19.5-inch HD+ TN Monitor

The Lenovo ThinkVision E20-30 is a compact 19.5-inch HD+ TN monitor designed for budget-conscious users seeking reliable performance for everyday tasks. With a resolution of 1600 x 900 pixels and a 16:9 aspect ratio, it offers clear and sharp visuals suitable for office work, browsing, and multimedia consumption. The ThinkVision E20-30 monitor features a 250 cd/m² brightness level, ensuring adequate visibility in well-lit environments. Its 2ms response time contributes to smooth motion handling, reducing motion blur during fast-paced content. Connectivity options include HDMI 1.4 and VGA ports, providing flexibility for various devices.

🖥️ Display

• Panel Size: 19.5 inches

• Panel Type: Twisted Nematic (TN)

• Backlight: WLED

• Resolution: 1600 x 900 pixels (HD+)

• Aspect Ratio: 16:9

• Pixel Pitch: 0.271 mm x 0.264 mm

• Dot/Pixel Per Inch (DPI/PPI): 94

• Brightness (Typical): 250 cd/m²

• Contrast Ratio (Typical): 1000:1

• Dynamic Contrast Ratio (Typical): 3,000,000:1

• Color Gamut: 72% NTSC (CIE 1931)

• Viewing Angle (H x V @ CR 10:1): 170° / 160°

• Response Time: 2 ms (On), 5 ms (Off)

• Refresh Rate: 60 Hz

• Color Support: 16.7 million

• Screen Surface Treatment: Anti-glare, Hard Coating (3H)

🔌 Connectivity

• Video Inputs:

  • 1 x HDMI 1.4

  • 1 x VGA

• USB Ports: None

⚙️ Power

• Power Consumption:

  • Typical: 12W

  • Maximum: 15W

  • Sleep/Off Mode: < 0.5W

  • Switch-Off Mode: < 0.3W

• Voltage Required: AC 100–240 V (50–60 Hz)

• Power Adapter: Integrated

🧭 Mechanical & Ergonomics

• Tilt Angle: -5° to +22°

• VESA Mount Compatibility: 100 x 100 mm

• Security Slot: Kensington Lock Slot

• Cable Management: Yes

• Dimensions (W x D x H):

  • With Stand: 464.8 x 180.4 x 352.6 mm

  • Without Stand: 464.8 x 43.5 x 285.0 mm

• Weight:

  • With Stand: 2.5 kg

  • Without Stand: 2.2 kg

🧾 Certifications

• Environmental:

  • ENERGY STAR Certified

  • EPEAT Silver

  • RoHS Compliant

• Ergonomic:

  • TÜV Rheinland Low Blue Light

  • TÜV Rheinland Flicker Free

📦 What’s in the Box

• Lenovo ThinkVision E20-30 Monitor

• Tilt Stand

• HDMI Cable (1.8 m)

• Power Cable (1.8 m)

• Quick Setup Guide
