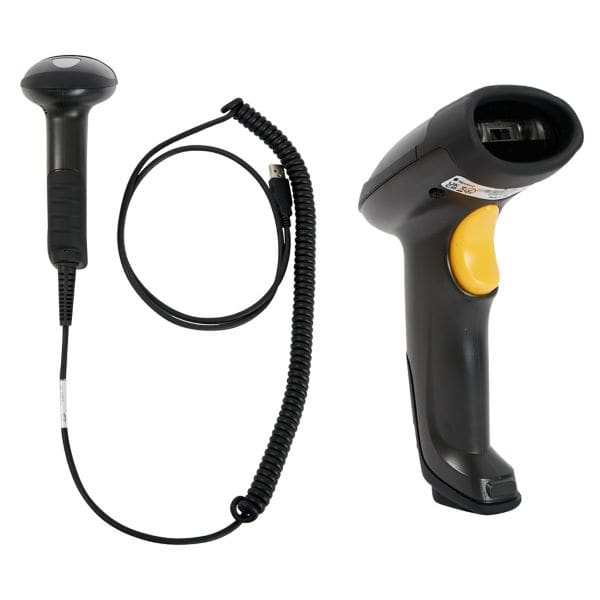

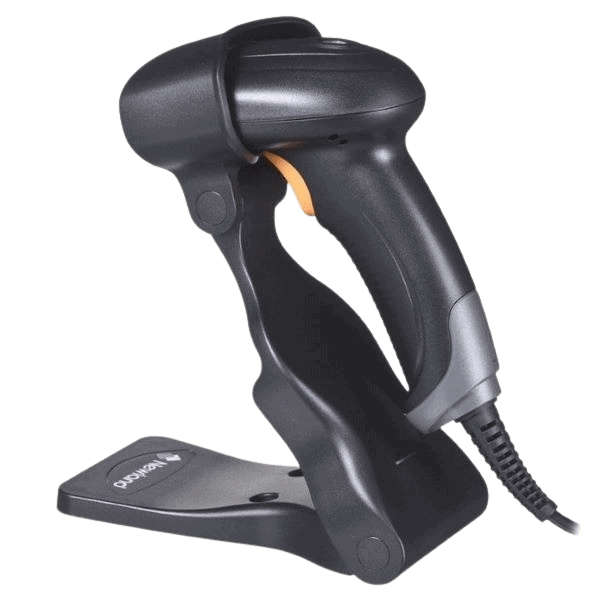

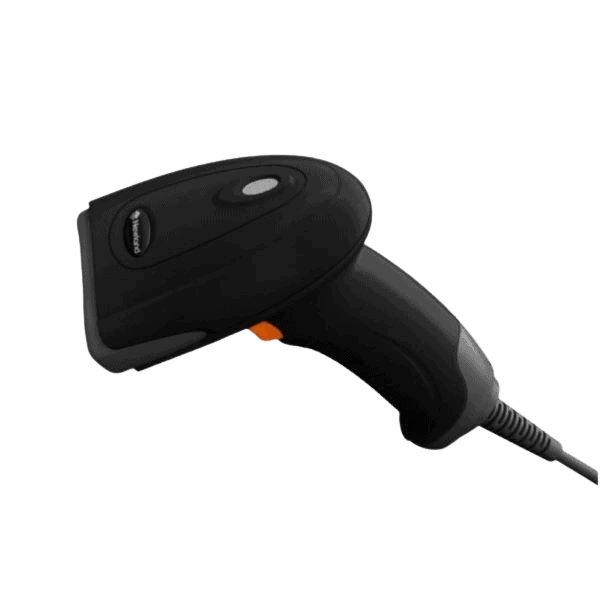

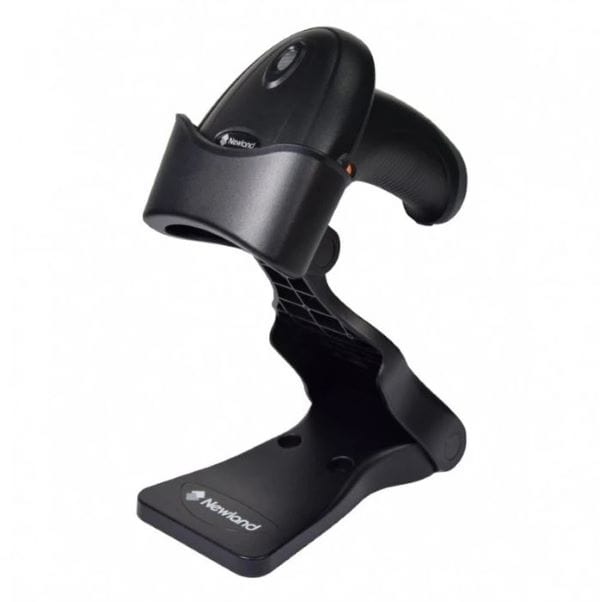

Newland HR22 Dorada II 2D CMOS USB Handheld Reader

The Newland HR22 Dorada II is a compact 2D CMOS USB handheld barcode reader designed for fast and efficient scanning. It supports both 1D and 2D barcodes, making it versatile for various applications, including retail, inventory management, healthcare, and logistics. With a lightweight design, durable construction, and rapid scan rates, the HR22 enhances productivity and accuracy in any environment that requires reliable barcode scanning.

General Specifications

• Scanner Type: 2D CMOS handheld barcode reader
• Barcode Symbologies: Supports 1D (e.g., UPC, EAN, Code 39) and 2D (e.g., QR Code, Data Matrix, PDF417) barcodes

Performance

• Scan Rate: Up to 300 scans per second
• Depth of Field: Effective scanning range varies based on barcode size and type; typically up to 12 inches
• Light Source: 620-630 nm LED

Physical Characteristics

• Dimensions: Approximately 6.3 in (H) x 2.8 in (W) x 4.6 in (D)
• Weight: About 5.6 oz (160 g)
• Color: Black

Environmental

• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Storage Temperature: -40°F to 158°F (-40°C to 70°C)
• Humidity: 5% to 95% non-condensing

Durability

• Drop Specification: Designed to withstand multiple drops from 5 ft (1.5 m) onto concrete
• IP Rating: IP54-rated for dust and moisture resistance

Power

• Power Source: Powered via USB
• Operating Voltage: 5V DC

Connectivity

• Interface: USB (HID, VCOM)
• Cable Length: Typically around 6 ft (1.8 m)

Additional Features

• User Feedback: Visual (LED) and audible (beep) indicators for successful scans
• Configuration: Programmable through barcodes in the user manual for various settings
• Multi-Interface Capability: Supports easy switching between interfaces

Applications

• Retail – Scan products at checkout counters.
• Inventory Management – Stocktaking and inventory tracking in warehouses and stockrooms.
• Shipping and Receiving – Scanning barcodes on incoming and outgoing shipments.
• Healthcare – Scanning medications, wristbands, and other barcoded items.
• Manufacturing – Track parts and products on the production line.
• Libraries – Manage book check-in and check-out processes.
• Event Management – Scan tickets and attendee badges.
• E-commerce Fulfillment – Order picking and packing
• Food Service – Inventory management and tracking in restaurants and food distribution centers.
