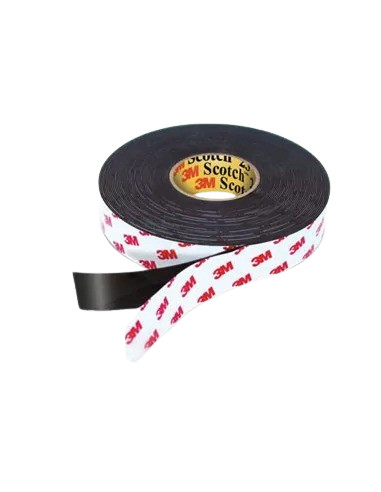

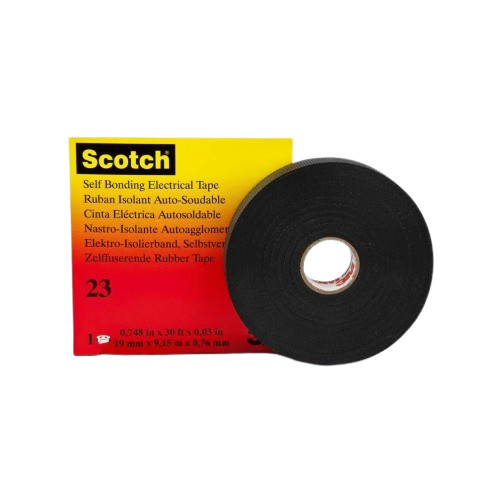

Scotch 3M 23 Self-Amalgamating Tape 10m Roll

The 3M Scotch 23 Self-Amalgamating Tape 10m Roll is a high-performance, rubber-based insulating tape designed for splicing and terminating high-voltage cables. Made from Ethylene Propylene Rubber (EPR), it offers excellent electrical properties and superior thermal stability, making it ideal for use in harsh environments. This 19mm wide, 10-meter roll features a self-fusing design that bonds to itself without the need for heat or adhesive, forming a solid, moisture-resistant insulating layer. Resistant to UV, ozone, and a wide temperature range, Scotch 23 is perfect for primary insulation of cables up to 69kV, moisture sealing, and corrosion protection in both indoor and outdoor applications.

Key Features:

Material & Construction:

• Tape Type: Self-amalgamating, self-fusing Ethylene Propylene Rubber (EPR) tape

• Adhesive: No adhesive required – bonds to itself when stretched and wrapped

• Color: Black

• Liner: Comes with a removable plastic separator liner for easy application

Dimensions:

• Length: 10 meters

• Width: 19mm

• Thickness: 0.76mm (30 mils)

Electrical Performance:

• Voltage Rating: Suitable for high-voltage applications up to 69kV

• Dielectric Strength: >24 kV/mm

• Insulation Resistance: Maintains high electrical insulation even under stress

• Thermal Class: Continuous operation up to 90°C, emergency overload up to 130°C

Physical Properties:

• Self-Fusing: Bonds to itself upon application, forming a void-free, solid insulation layer

• Moisture Resistance: Forms a moisture-proof barrier, ideal for outdoor or buried cable applications

• Weather & UV Resistance: Excellent performance under UV exposure, ozone, and harsh weather conditions

• Flexibility: Conforms easily to irregular shapes and complex surfaces

Applications:

• Primary Cable Insulation: For solid dielectric insulated cables up to 69kV

• Cable Jointing & Terminations: Ideal for high-voltage splicing and end-sealing

• Moisture Sealing: Great for underground and outdoor cable moisture protection

• Corrosion Protection: Provides a protective barrier in harsh environments

• Industrial Use: Suitable for utility, power distribution, and electrical infrastructure projects

Certifications & Standards:

• UL Recognized

• ASTM D4388 Compliant

• RoHS Compliant

This 3M Scotch 23 Self-Amalgamating Tape is trusted by professionals worldwide for its superior insulation, environmental resistance, and ease of use in high-voltage and critical installations.
