Ubiquiti 802.3af to 24VDC Gigabit Outdoor Adapter

The Ubiquiti 802.3af to 24VDC Gigabit Outdoor Adapter is designed to convert standard Power over Ethernet (PoE) from an 802.3af compliant source to 24V DC output, specifically for Ubiquiti devices that require 24V power. Below are the detailed specifications:

1. Electrical Specifications:

• Input Voltage: 48V DC via Power over Ethernet (PoE) from an IEEE 802.3af source.
• Output Voltage: 24V DC.
• Output Power: Typically up to 24W (depends on device requirements and voltage drop).
• Max Output Current: 1A at 24V DC.
• Power Consumption: 48V PoE input, typically using 24W at full load.

2. Connector Types:

• Ethernet Input Port: 1 × RJ45 port for receiving IEEE 802.3af compliant PoE (up to 48V) from a PoE switch or injector.
• Ethernet Output Port: 1 × RJ45 port for output to a device, providing both power and data over the same Ethernet cable. Supports Gigabit Ethernet (10/100/1000 Mbps).
• Power Output: 1 × 2.1mm barrel jack (standard for 24V DC output).

3. PoE Standards:

• Input Power Standard: Complies with IEEE 802.3af (PoE), which delivers 48V DC over Ethernet to power the adapter.
• Power Output: Provides 24V DC output for powered devices (often used for Ubiquiti’s 24V powered products like certain airMAX or Rocket devices).

4. Environmental Specifications:

• Operating Temperature: -30°C to 75°C (-22°F to 167°F), designed for harsh outdoor environments.
• Operating Humidity: 10% to 90% non-condensing.
• Storage Temperature: -40°C to 85°C (-40°F to 185°F), ensuring reliable performance in extreme conditions.

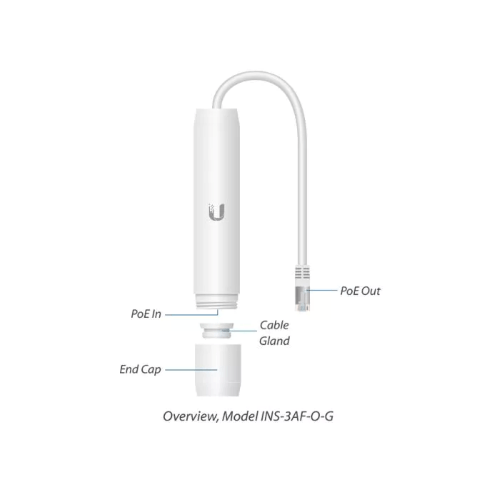

5. Physical Characteristics:

• Form Factor: Designed for outdoor use with a weatherproof enclosure.
• Dimensions: Approximately 120mm x 60mm x 35mm (4.7 inches x 2.4 inches x 1.4 inches).
• Weight: Approximately 0.15 kg
• Enclosure: Weatherproof, designed to withstand outdoor conditions with a rugged plastic housing that resists rain, dust, and UV damage.

6. Safety and Compliance:

• Certifications: CE, FCC, and UL certified for compliance with safety and electromagnetic compatibility standards.
• Surge Protection: Built-in surge protection for added safety against electrical surges.
• Short Circuit Protection: Protects both the adapter and the powered device from short circuits.

7. Applications:

• Outdoor Use: Ideal for powering Ubiquiti’s 24V outdoor devices such as airMAX, Rocket, or NanoStation models when the power source is 802.3af PoE.
• Long-Distance Power Delivery: Used in environments where long-distance Ethernet cabling with PoE (up to 100 meters) is required to deliver power and data to remote devices.
• Ideal for Remote Locations: Perfect for installations where standard 24V DC adapters are impractical, such as in remote or outdoor network setups.

8. Features:

• Gigabit Ethernet Support: Fully supports Gigabit Ethernet, ensuring fast data transmission alongside power delivery.
• Weatherproof Design: Durable and rugged, designed for outdoor deployment in various weather conditions.
• Plug-and-Play: Easy to install, with no configuration required—simply connect PoE input and 24V output.
• Compact and Efficient: Compact size for easy installation in tight spaces or on poles.

These detailed specifications make the Ubiquiti 802.3af to 24VDC Gigabit Outdoor Adapter an excellent choice for outdoor installations where IEEE 802.3af PoE is available and 24V DC is required to power specific Ubiquiti devices.
