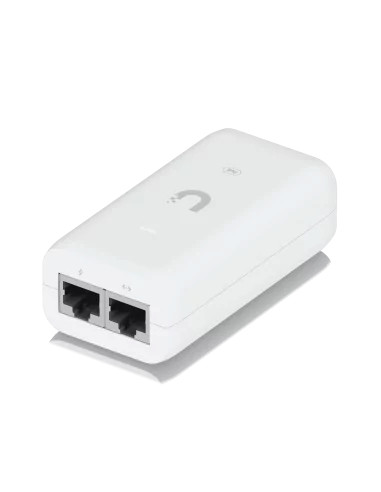

Ubiquiti 802.3at Gigabit PoE+ Adapter 48V, 30W

The Ubiquiti 802.3at Gigabit PoE+ Adapter – 48V, 30W is a high-performance Power over Ethernet (PoE) adapter designed to deliver 48V DC and 30W of power to devices over Ethernet while supporting Gigabit Ethernet data rates. Here are the detailed specifications:

1. Electrical Specifications:

• Input Voltage: 100–240V AC (Universal input)
• Output Voltage: 48V DC (via PoE)
• Output Power: 30W maximum
• Max Output Current: 0.625A at 48V DC
• PoE Standard: Complies with IEEE 802.3at (PoE+), delivering up to 25.5W of power over Ethernet to supported devices.

2. Connector Types:

• Input Port: 1 × RJ45 (for network data input and PoE input from a compatible switch or injector).
• Output Port: 1 × RJ45 (PoE and data output to powered device).
• PoE Output: Delivers both power and data over the same Ethernet cable.

3. Performance:

• Ethernet Speed: Supports Gigabit Ethernet (10/100/1000 Mbps).
• Data Transmission: Delivers high-speed data alongside power through a single Ethernet cable.

4. Physical Characteristics:

• Form Factor: Compact desktop-style adapter.
• Dimensions: Approximately 80mm x 55mm x 30mm (3.1 x 2.2 x 1.2 inches).
• Weight: Around 0.1 kg (3.5 oz).
• Housing: Durable plastic housing for lightweight installation.

5. Environmental Specifications:

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)

6. Safety and Compliance:

• Certifications: CE, FCC, UL, and other safety certifications.
• Surge Protection: Built-in protection against power surges.
• Short Circuit Protection: Protects the adapter and connected devices from short circuits.

7. Applications:

• Ubiquiti Devices: Powers Ubiquiti devices such as UniFi access points, cameras, and switches requiring 48V PoE+.
• Indoor and Outdoor Installations: Suitable for both indoor and outdoor networking environments.

8. Features:

• PoE+ Support: Provides higher power output (30W) for devices that require more power, such as high-performance access points and cameras.
• Gigabit Ethernet: Supports high-speed data transmission alongside power.
• Compact and Efficient: Space-saving design, easy to integrate into networking setups.

9. Included Accessories:

• Ethernet Cable: Typically comes with an Ethernet cable for input or output (varies by package).

The Ubiquiti 802.3at Gigabit PoE+ Adapter – 48V, 30W is ideal for powering Ubiquiti devices that require higher power output, while maintaining high-speed Ethernet performance for data transmission.
