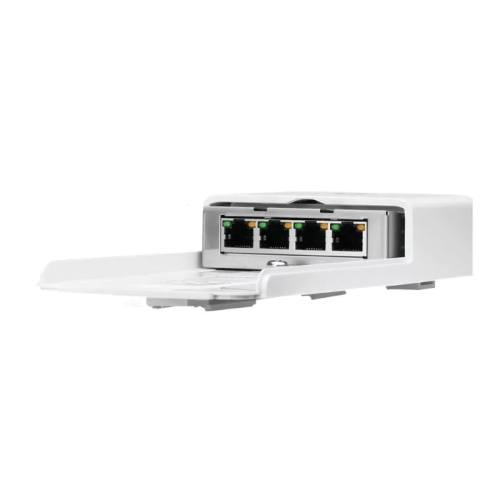

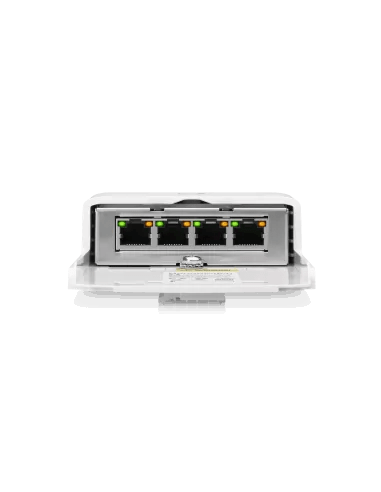

Ubiquiti NanoSwitch Outdoor 4 Port POE switch

The Ubiquiti NanoSwitch Outdoor 4 Port PoE Switch is a compact and weather-resistant switch designed for outdoor use in Ubiquiti’s networking ecosystem. It is a part of the NanoStation series and offers Power over Ethernet (PoE) support, making it ideal for powering and managing devices such as access points, cameras, and other PoE-powered devices in outdoor environments.

Key Features:

• Ports:

  • 4 x Gigabit Ethernet Ports (RJ45):
    • 3 x PoE-out: Provides Power over Ethernet to power PoE-capable devices.
    • 1 x PoE-in: Receives power from a PoE injector or other PoE device.

• PoE Standards:

  • PoE-out: 24V passive PoE (on ports 1, 2, and 3) – ideal for devices like NanoStation, airMAX, or other Ubiquiti gear that support 24V passive PoE.
  • PoE-in: 24V passive PoE for powering the switch itself.

• Power:

  • Power Budget: Total power output of 24W for PoE-out ports.
  • Power Consumption: Typically around 5W for the switch itself (without powered devices).

• Networking:

  • Gigabit Ethernet Ports: Supports up to 1 Gbps data transfer rate per port for fast networking.
  • Ideal for small to medium outdoor deployments where multiple PoE-powered devices need to be managed and connected.

• Enclosure:

  • Weatherproof: IP54-rated enclosure for protection against dust and water, making it suitable for use in outdoor environments.
  • Designed for use in challenging weather conditions such as rain, snow, and high temperatures.

• Mounting:

  • Easy to mount on a pole, wall, or flat surface for flexible installation.
  • Mounting brackets included for installation.

• Power Input:

  • 48V PoE (via the PoE-in port), ensuring efficient power delivery while reducing cabling complexity.
  • Supports passive PoE, which allows a single Ethernet cable to carry both power and data to the device.

• Management:

  • The switch can be managed through Ubiquiti’s UISP (Ubiquiti Internet Service Provider) platform or other management interfaces, offering flexibility in how the network is monitored and controlled.

• Environmental Protection:

  • The IP54 rating ensures that the switch can withstand exposure to dust, rain, and environmental factors, making it suitable for outdoor wireless networks, especially in environments that experience mild weather conditions.

Performance:

• Data Throughput:
  • Supports Gigabit Ethernet speeds, ensuring fast and reliable data transmission for connected devices.
• Power Over Ethernet:
  • The three PoE-out ports supply 24V passive PoE to devices, such as access points or other networking equipment.

Physical Specifications:

• Dimensions (L x W x H):
  • 161.5 x 65.0 x 30.0 mm
  • Weight: 245 grams (0.54 lbs).

Compliance:

• RoHS Compliant: Meets environmental standards and restrictions for hazardous substances.
• Certifications: CE, FCC, and other regional certifications.

Temperature and Humidity:

• Operating Temperature:

  • -20°C to 50°C (-4°F to 122°F).

• Storage Temperature:

  • -30°C to 70°C (-22°F to 158°F).

• Humidity:

  • Operating humidity range: 5% to 95% non-condensing.

Use Cases:

• Small Outdoor Networks: Ideal for small businesses, home office networks, or point-to-point wireless setups requiring PoE-powered devices.
• ISP Deployments: Suitable for ISPs deploying multiple access points or other networking devices in outdoor environments.
• Surveillance Systems: Can be used in conjunction with PoE-powered security cameras in an outdoor surveillance setup.
• Wireless Backhaul: Helps connect devices in outdoor, long-range wireless backhaul installations.

Additional Features:

• Energy Efficient: Low power consumption helps save energy in outdoor deployments.
• Compact Design: Its small form factor makes it easy to integrate into existing networks without taking up too much space.
