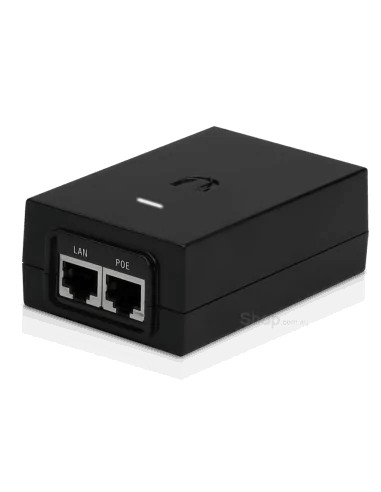

Ubiquiti POE Injector – 48VDC, 24W

The Ubiquiti POE Injector – 48VDC, 24W is a compact and efficient power over Ethernet POE Injector designed to deliver 48V DC power to Ubiquiti devices, such as access points and IP cameras. It supports IEEE 802.3af/at PoE standards, providing a maximum output of 24W. With an input range of 100-240V AC, it operates in temperatures from 0°C to 40°C and offers surge and short-circuit protection for safe use. This plug-and-play injector is ideal for powering Ubiquiti devices in small to medium installations without the need for additional power adapters.

Electrical Specifications:

• Input Voltage: 100–240V AC, 50/60 Hz (Universal input)
• Output Voltage: 48V DC
• Output Power: 24W (Maximum)
• Max Current: 0.5A at 48V DC
• Power Consumption: Typically 0.5A at 100–240V AC input

2. Connector Types:

• Ethernet Input Port: 1 × RJ45 port for network connection (supports standard Ethernet devices).
• Ethernet Output Port: 1 × RJ45 port for PoE output to powered devices (supports 10/100/1000 Mbps Ethernet).

3. PoE Standards:

• Power Output: Complies with IEEE 802.3af/802.3at PoE standards (providing power over Ethernet to supported devices).
• Pinout: Typically uses pins 1, 2 for positive voltage and 3, 6 for negative voltage (standard for IEEE 802.3af/at).

4. Physical Characteristics:

• Form Factor: Compact desktop design, ideal for use in small spaces or on shelves.
• Dimensions: Approximately 3.1 x 1.7 x 1.1 inches (7.9 x 4.3 x 2.8 cm), depending on the model.
• Weight: Approx. 0.2 kg (7 oz)
• Material: Typically made of durable plastic housing.

5. Environmental Specifications:

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)

6. Safety and Compliance:

• Certifications: CE, FCC, and UL certified for safety and compliance with international standards.
• Surge Protection: Built-in surge protection for safety from electrical surges.
• Short Circuit Protection: Protection against short circuits and overloads.

7. Applications:

• Used for powering: Ubiquiti devices like access points (e.g., UniFi), IP cameras, and switches that require PoE.
• Suitable for small and medium-sized installations: Provides a reliable and efficient power source for remote devices over Ethernet cabling.

8. Features:

• Compact Design: Space-efficient, designed for easy desktop or shelf placement.
• Plug-and-Play: No configuration required; simple to connect and start using.
• LED Indicators: Typically includes LED lights for power status and Ethernet connection.
