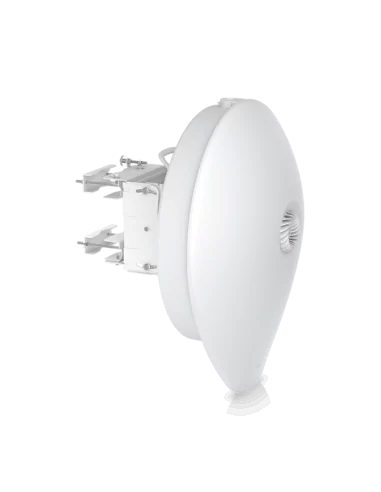

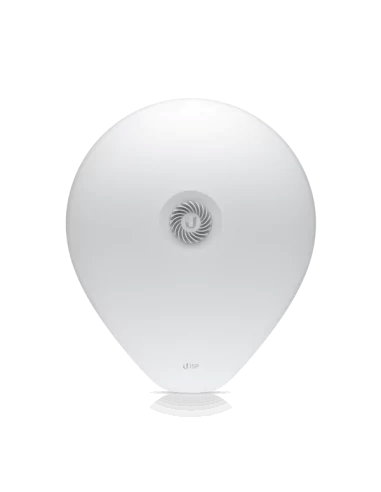

Ubiquiti UISP airFiber 60GHz Xtreme-Range Radio

The Ubiquiti AF60-XR is a high-performance 60 GHz point-to-point (PtP) radio system engineered for long-distance wireless links. Designed to deliver up to 5.4 Gbps total throughput (2.7 Gbps duplex), it offers a maximum range of 15+ km, making it ideal for enterprise backhaul and ISP deployments. The system features a precision alignment mount for easy installation, integrated GPS for accurate synchronization, and Bluetooth management via the UISP app for seamless setup and monitoring. With its low-interference 60 GHz spectrum, the AF60-XR ensures reliable, high-speed connectivity in urban and suburban environments.

📡 Radio System

• Model: AF60-XR (Xtreme-Range)

• Operating Frequency: 57 – 71 GHz (60 GHz band)

• Backup Channel: Integrated 5 GHz radio for link redundancy

• Maximum Throughput: 5.4 Gbps (2.7 Gbps full-duplex)

• Maximum Range: 15+ km (clear line-of-sight)

• Antenna Type: Integrated parabolic reflector

• Antenna Gain:

  • 60 GHz: 43 dBi

  • 5 GHz: 11 dBi

• Beamwidth: 0.4° (extremely narrow for long-distance accuracy)

• Duplex Mode: Time-Division Duplex (TDD)

• Modulation: Up to 64QAM

• Channel Bandwidth: 2160 MHz

🌐 Networking & Interfaces

• Network Interface: (1) Gigabit Ethernet Port (10/100/1000 Mbps)

• Bluetooth: Yes, for setup via UISP mobile app

• Management Platform: UISP (web and mobile)

⚡ Power

• Power Method: Passive PoE (24V, 4-pair)

• Power Supply: 24V, 0.5A Gigabit PoE adapter (included)

• Max Power Consumption: 16.5W

🛠️ Physical & Environmental

• Dimensions: 413 x 413 x 360 mm (16.3 x 16.3 x 14.2″)

• Weight: 2.1 kg (4.6 lbs) without mount

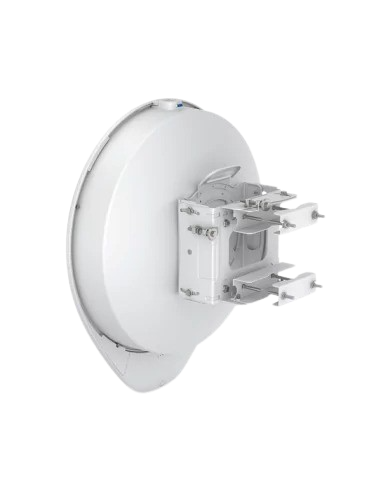

• Mounting: Precision alignment mount included

• Operating Temperature: -40°C to 60°C (-40°F to 140°F)

• Weatherproofing: IPX6 rated (designed for outdoor use)

• Wind Survivability: Up to 200 km/h (125 mph)

🛰️ Additional Features

• GPS Sync: Integrated for precise link timing and channel separation

• Failover Support: Automatic switching to 5 GHz backup link

• Encryption: WPA2-PSK for secure data transmission

• Firmware: Upgradeable via UISP
