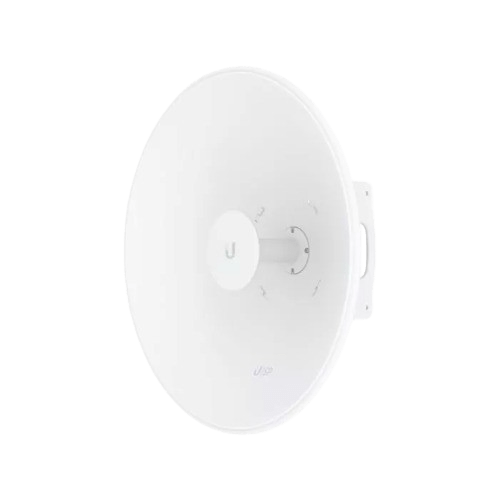

Ubiquiti UISP airMAX 5GHz 30dBi Dish Antenna

The Ubiquiti UISP airMAX 5GHz 30dBi Dish Antenna is a high-gain, directional antenna designed for long-range wireless communication. With a 30 dBi gain and optimized for use in the 5 GHz frequency band, it provides exceptional performance for point-to-point (PtP) links and high-throughput backhaul connections, offering reliable, high-speed connectivity over extended distances.

Specifications:

• Frequency: 5 GHz
• Antenna Type: Dish Antenna (Directional)
• Gain: 30 dBi
• Beamwidth: 4° (Horizontal), 4° (Vertical)
• Polarization: Linear (Vertical or Horizontal)
• Connector: N-Type Female
• Power Handling: 50W (max)
• Impedance: 50 ohms

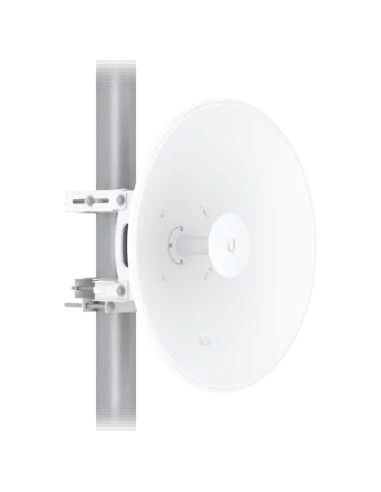

• Mounting: Adjustable, rugged mount included for easy installation
• Construction: Durable, weather-resistant materials for outdoor use
• Dimensions: 600mm x 600mm (dish)
• Weight: 5.2 kg (11.4 lbs)

• Operating Temperature:

  • Range: -40°C to 70°C (-40°F to 158°F)

• Certifications:

  • CE, FCC, IC

Applications:

1. Point-to-Point (PtP) Wireless Links: Ideal for long-distance, high-capacity wireless backhaul connections, such as connecting remote sites, towers, or between buildings in urban or rural environments.
2. High-Capacity Wireless Networks: Perfect for situations where high throughput is required, such as ISP backhaul, fixed wireless access, or high-demand enterprise networks.
3. Rural Internet Connectivity: Useful for providing broadband access to rural areas by enabling reliable, long-distance wireless communication to remote locations.
4. Wireless Infrastructure for Outdoor Deployments: Designed for outdoor environments, the dish antenna’s durable construction ensures reliable performance in harsh weather conditions.
5. High-Interference Environments: The directional design of the 30 dBi gain helps reduce interference from nearby signals, ensuring stable, clear communication.
