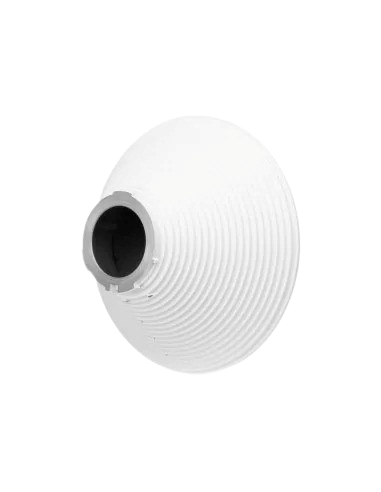

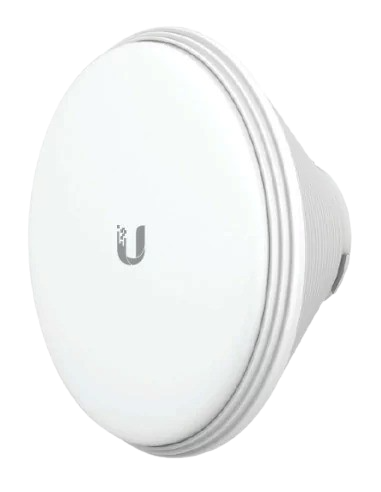

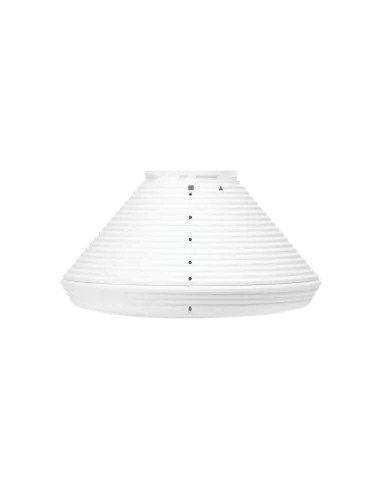

Ubiquiti UISP airMAX PrismStation 5GHz 45° Horn Antenna

The Ubiquiti UISP airMAX PrismStation 5GHz 45° Horn Antenna (Horn-5-45) is a high-performance antenna designed to enhance wireless network deployments by providing precise beam shaping and superior isolation. Operating within the 5.15–5.85 GHz frequency range, it delivers a 15.5 dBi gain with a 45° horizontal, vertical, and elevation beamwidth, making it ideal for point-to-multipoint (PtMP) applications where minimizing interference and maximizing signal clarity are crucial.n

The antenna’s dual-linear polarization ensures consistent performance across various deployment scenarios. Built to withstand harsh outdoor conditions, it offers wind survivability up to 200 km/h and features a robust design suitable for challenging environments. The Horn-5-45 is compatible with Ubiquiti’s PrismStation 5AC and IsoStation radios, offering a modular solution that allows for easy upgrades and scalability in wireless networks.

📦 Mechanical Specifications

• Dimensions: Ø175 x 96 mm (6.9 x 3.78″)

• Weight: 1.34 kg (3 lb)

• Material: UV-stabilized fiberglass with a gray finish

• Mounting: Directly attaches to the PrismStation or IsoStation radios using a single-button release mechanism

• Compatibility: PrismStation 5AC, IsoStation IS-5AC, IsoStation IS-M5, airFiber AF-LTU

• Wind Survivability: 200 km/h (125 mph)

• Wind Loading: 56 N @ 200 km/h (12.6 lbf @ 125 mph)

📡 Radio Frequency

• Operating Frequency Range: 5.15–5.85 GHz

• Gain: 15.5 dBi

• Horizontal Beamwidth (HPOL): 45°

• Vertical Beamwidth (VPOL): 45°

• Elevation Beamwidth: 45°

• Polarization: Dual-linear (horizontal and vertical)

• Maximum VSWR: 1.7:1

• Cross-Polar Isolation: 17 dB

🛠️ Features & Benefits

• Enhanced Co-location Performance: The 45° beamwidth provides a balance between coverage area and interference mitigation, making it suitable for high-density deployments.

• Modular Design: The single-button release mechanism allows for easy antenna swaps without the need for tools, facilitating quick upgrades and maintenance.

• Improved Beam Shaping: The newly designed horn enhances beam shaping, resulting in better signal clarity and reduced side lobes.

• Durable Construction: Built to withstand harsh outdoor conditions, ensuring reliable performance in various environmental scenarios.

• Broad Compatibility: Compatible with a range of Ubiquiti radios, offering flexibility in deployment options.
