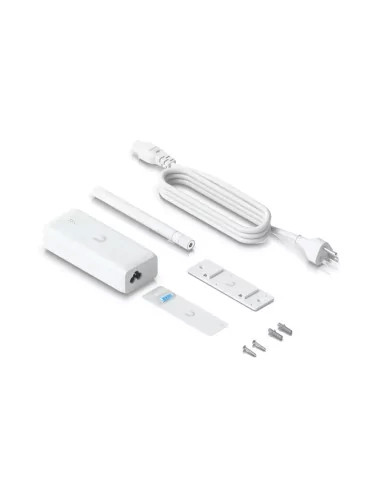

Ubiquiti UniFi Device Bridge WiFi Bridging

The Ubiquiti UniFi Device Bridge is a Wi-Fi bridging solution that enables seamless connection between two remote networks or devices over a wireless link. It allows for the extension of network coverage and the interconnection of distant locations without the need for cables, making it ideal for areas where wired connections are difficult to implement.

General

• Model: UniFi Device Bridge
• Type: Wi-Fi bridging device (Point-to-Point, Point-to-Multipoint)
• Compatibility: Works with UniFi devices supporting wireless bridging, such as UniFi APs
• Wireless Standards: 802.11ac (Wi-Fi 5)
• Frequency Bands: Dual-band (2.4 GHz and 5 GHz)
• Throughput: High throughput for reliable data transmission

Connectivity

• Ethernet Ports: 1 x Gigabit Ethernet port for network connection to the device (Wired connection to the bridge)
• Wi-Fi Mode: WDS (Wireless Distribution System) or mesh bridging mode

Power

• Power Supply: Powered via PoE (Power over Ethernet) using 802.3af or 802.3at standard
• Power Consumption: Approx. 6W

Physical Characteristics

• Dimensions: 4.5 x 3.5 x 1.2 inches (115 x 89 x 31 mm)
• Weight: Approx. 0.5 lbs (0.23 kg)
• Mounting: Wall mountable for outdoor or indoor installations
• Enclosure: Weather-resistant (for outdoor use)

Environmental

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 10% to 90% non-condensing

Usage:

The UniFi Device Bridge is ideal for:

• Long-Distance Connectivity: Bridging two network segments over a long distance without the need for cables.
• Outdoor or Remote Locations: Extending network access to hard-to-reach or remote locations where traditional wired connections are not feasible.
• Site-to-Site Networking: Connecting two buildings or distant areas to create a unified network.
• Mesh Networks: Extending the reach of your UniFi mesh network in environments that require wireless backhaul.
