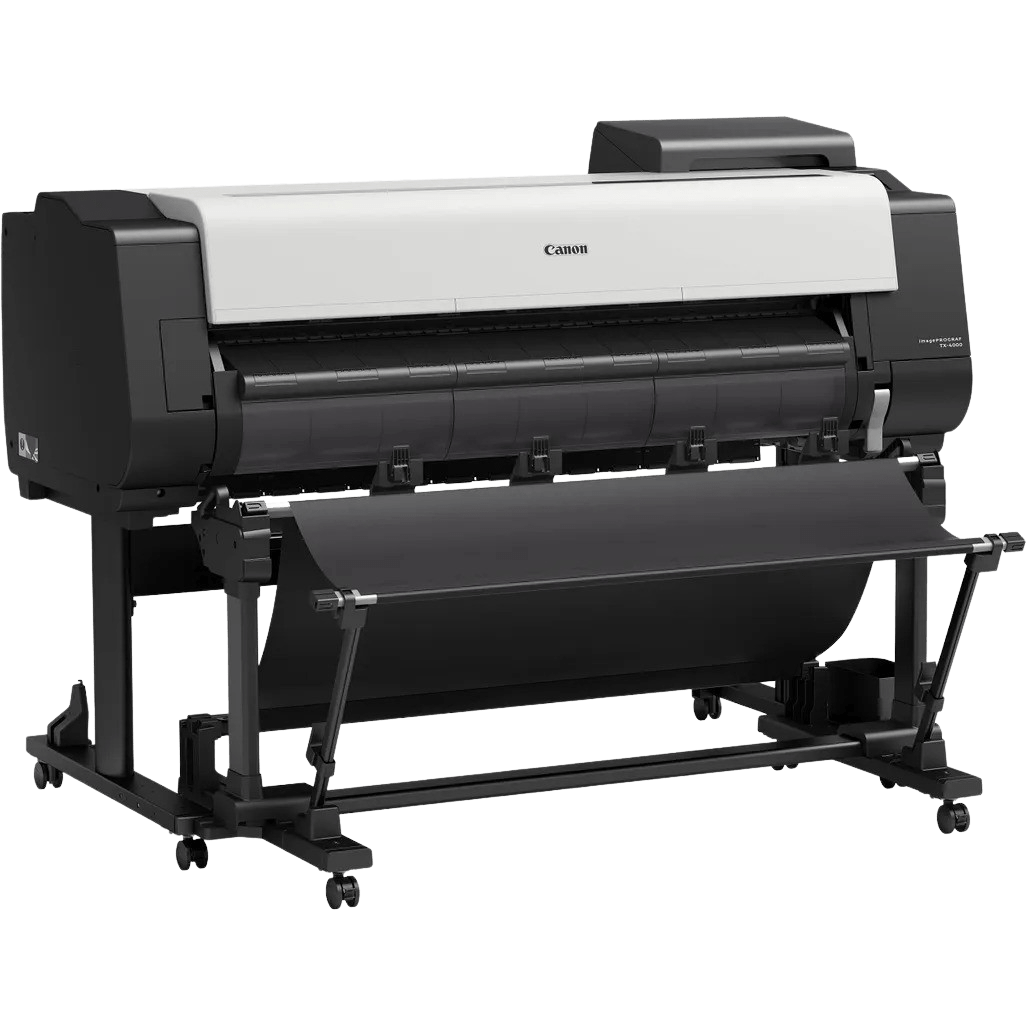

Canon ImagePROGRAF TX-400 Large Format 44” Colour Printer

The Canon ImagePROGRAF TX-400 is a 44-inch wide-format inkjet printer designed for high-quality color printing. It features an 8-color LUCIA PRO pigment ink system, delivering sharp, vibrant prints with a maximum resolution of 2400 x 1200 dpi. The printer supports various media types and sizes, including rolls and sheets, and offers fast print speeds (as quick as 24 seconds for A1 prints). It includes connectivity options like USB, Ethernet, and Wi-Fi, along with mobile printing support. Ideal for professionals needing precise, high-volume printing, it combines ease of use, reliability, and efficiency.

Canon ImagePROGRAF TX-400 44” Colour Printer – Specifications

General Specifications:

• Model Name: Canon ImagePROGRAF TX-400
• Type: Large Format Inkjet Printer
• Print Technology: LUCIA PRO pigment ink system (8-color)
• Media Width: 11” to 44” (A3 to 44” wide roll and sheet formats)
• Print Width: Up to 44 inches (1118 mm)
• Printer Dimensions (W x D x H):
  • Without Stand: 44.7 x 34.7 x 14.5 inches (1137 x 882 x 369 mm)
  • With Stand: 44.7 x 34.7 x 41.4 inches (1137 x 882 x 1050 mm)
• Weight: Approx. 160 lbs (73 kg)
• Power Supply: 100–240V, 50/60Hz

Print Resolution:

• Max. Print Resolution: 2400 x 1200 dpi
• Droplet Size: Minimum 4 picoliters (pl)

Print Speed:

• Standard A1 Print Speed: Approx. 24 seconds for plain paper (color or black-and-white)
• Print Speed for Posters: Up to 47.6 m²/h (fast draft mode on plain paper)

Ink System:

• Ink Type: LUCIA PRO pigment ink system (8 colors)
  • Colors: Matte Black, Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, and Gray
• Ink Cartridge Capacity: 330 ml and 700 ml options
• Ink Tank Type: Refillable, individual tanks

Media Handling:

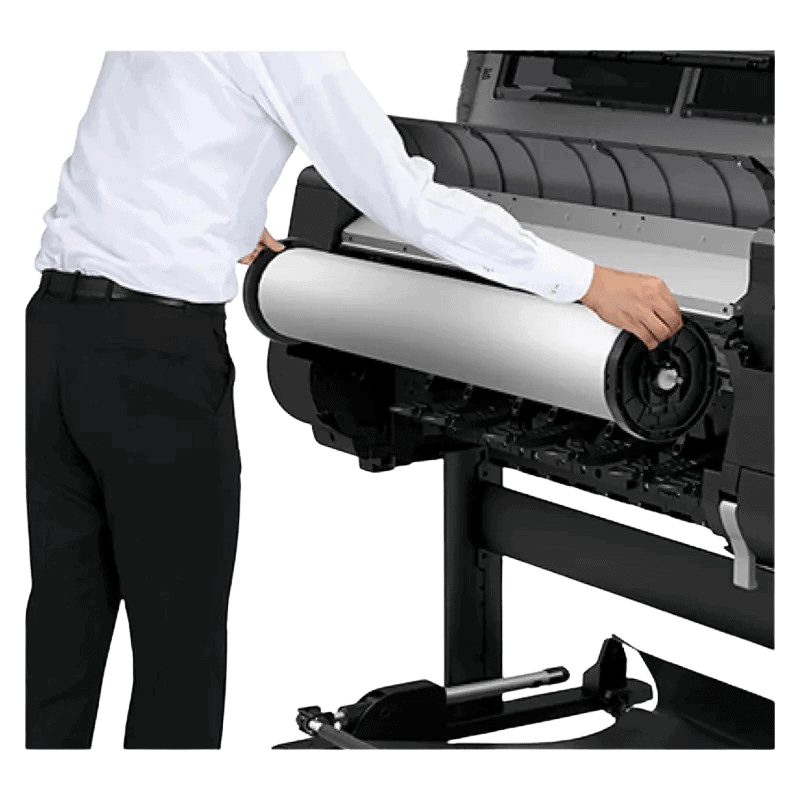

• Roll Paper: Max. width 44” (1118 mm), max. length 164’ (50 meters)
• Sheet Paper: Max. 44” (1118 mm) width
• Media Thickness: 0.07 to 0.8 mm
• Media Types:
  • Plain paper, Glossy paper, Photo paper, Matte paper, Fine art paper, Canvas
  • Roll and cut-sheet options available

Connectivity:

• USB Interface: USB 2.0 Hi-Speed
• Network Connectivity: Ethernet (1000BASE-T/100BASE-TX/10BASE-T)
• Wi-Fi: Yes (via optional Wireless LAN Kit)
• Mobile Printing: Apple AirPrint, Google Cloud Print, Canon Print Service (Android), Mopria
• Software: Canon Print Studio Pro, Direct Print & Share, and other workflow management software

Display:

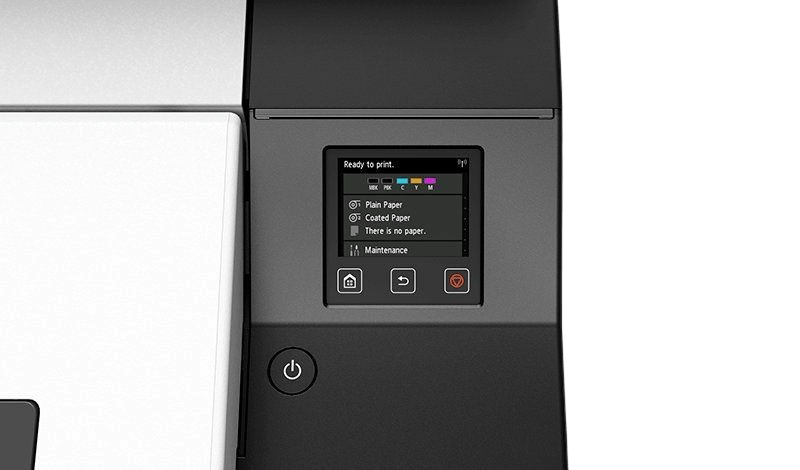

• Screen: 3.0-inch LCD display for easy operation
• Buttons: Touchscreen control panel, LED indicators for status updates

Performance & Productivity:

• Maintenance: Automatic nozzle check and correction
• Print Quality: Enhanced with high-precision mechanical design for consistent, superior color accuracy and detail
• Print Head: 1-inch (300 dpi) print head with 15,360 nozzles
• Additional Features:
  • Sub ink tank system for minimized ink wastage
  • Dual-roll support for efficient media switching
  • Smart Media Sensor for paper type detection
  • Advanced color calibration options to match specific brand or project needs

Environmental & Energy Efficiency:

• Energy Consumption: Approx. 55W (during operation), approx. 1W (standby mode)
• Noise Level: Approx. 47 dB (during printing)

Software & Compatibility:

• Driver Software: Canon driver for Windows and macOS
• ICC Profile Support: Supports custom ICC profiles for precise color management
• Operating System Compatibility: Windows 7 or later, macOS 10.10 or later

Key Features:

• Fast Production: High-speed printing capabilities without sacrificing quality

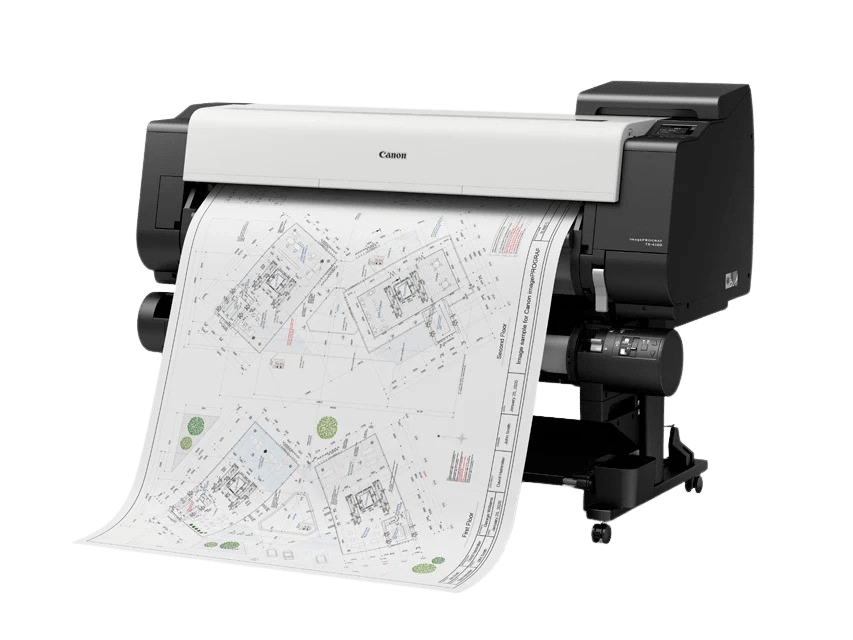

• Wide Media Support: Suitable for banners, posters, graphics, CAD drawings, and fine art prints
• Ease of Use: User-friendly interface with a touch screen for simplified operation and quick job status
• Reliability: Designed for high-volume environments with enhanced durability and consistent performance

Optional Accessories:

• Wireless LAN Kit: For wireless printing from mobile devices and computers
• Media Cutter: For automatic cutting of print jobs for easy handling
• PostScript Kit: For PostScript/PDF printing support
• Additional Roll Feeders: For increased media handling and dual-roll support
