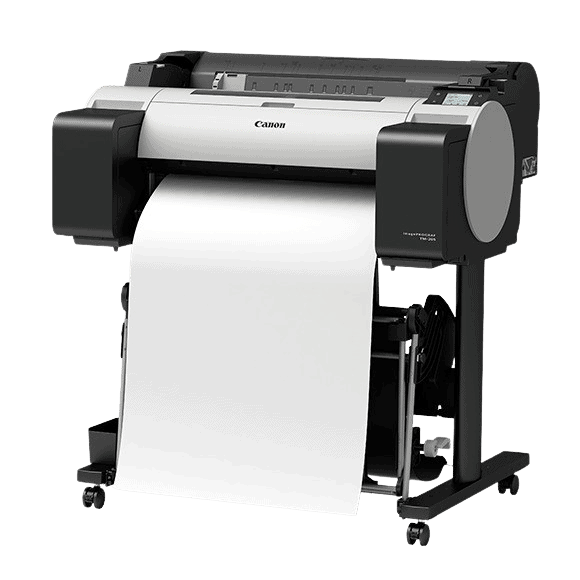

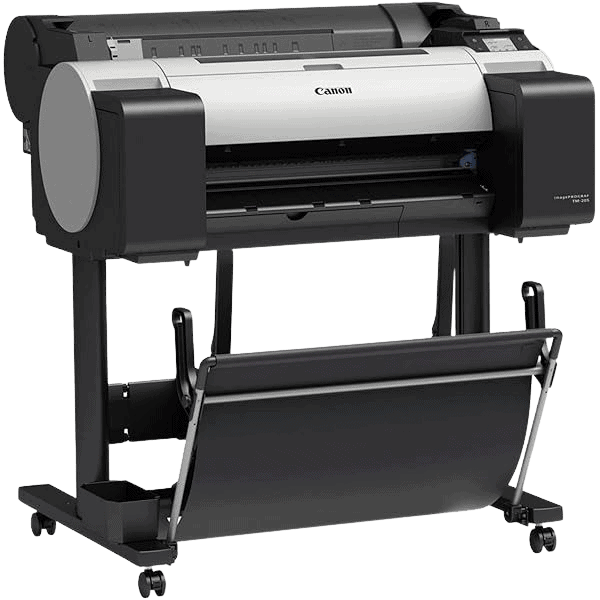

Canon imagePROGRAF TM-305 Large Format Colour 36” Printer

The Canon TM-305 is a 36″ (A0) technical printer with a 5-color pigment ink system, 500GB hard drive, and quiet operation, designed for high-quality CAD, GIS, and poster printing in professional environments.

Specification for Canon TM-305 Technical Printer

Product Overview:

The Canon TM-305 is a highly efficient 36″ (A0 size, 914mm) large-format technical printer designed for precision and productivity. Equipped with a 500GB hard drive and a sturdy stand, it is ideal for producing CAD drawings, GIS maps, and high-quality posters. Its compact design and noise-reduction features make it a great fit for office environments.

---

Key Specifications:

General Information:

• Model Name: Canon TM-305
• Printer Type: Large Format Inkjet Printer
• Usage: CAD, GIS, and poster printing
• Media Size: Up to 36″ (A0, 914mm width)

---

Print Technology:

• Ink Type: 5-color pigment-based Lucia TD Ink System (Cyan, Magenta, Yellow, Black, Matte Black)
• Print Resolution: Up to 2400 × 1200 dpi
• Print Speed:
  • A1 (23.4″ × 33.1″) size: Approx. 24 seconds per print (fast economy mode)
  • A0 size: Approx. 48 seconds per print (fast economy mode)
• Line Accuracy: ±0.1%

---

Media Handling:

• Media Width: 8″ to 36″ (203.2mm to 914mm)
• Media Thickness: 0.07 mm to 0.8 mm
• Roll Feed: 1 Roll (standard)
• Cut-Sheet Support: Manual feed
• Media Types: Bond paper, Coated paper, Glossy paper, Heavyweight paper, etc.

---

Hard Drive & Storage:

• Built-In Hard Drive: 500GB
  • Enables fast data processing and efficient print queue management.

---

Connectivity & Software:

• Interfaces:
  • USB 2.0 (High-Speed)
  • Ethernet 10/100/1000Base-T
  • Wi-Fi (IEEE 802.11n)
• Supported File Formats: HP-GL/2, HP RTL, PDF, TIFF, JPEG
• Operating System Support:
  • Windows 10/8.1/7
  • macOS (latest versions)

---

Noise Reduction:

• Acoustic Level:
  • 44 dB during operation
  • Quiet printing mode reduces environmental noise.

---

Physical Specifications:

• Dimensions (W x D x H): 1390 mm x 757 mm x 1060 mm (with stand)
• Weight: Approx. 63 kg (including stand)

---

Power & Energy Consumption:

• Power Supply: AC 100-240V (50-60Hz)
• Power Consumption:
  • Operational: Approx. 49W
  • Standby: Less than 3.6W

---

Included Accessories:

• Canon TM-305 Printer
• 500GB Built-In Hard Drive
• Printer Stand
• 1 Roll Holder Set
• 1 Maintenance Cartridge
• 1 Set of Starter Inks
