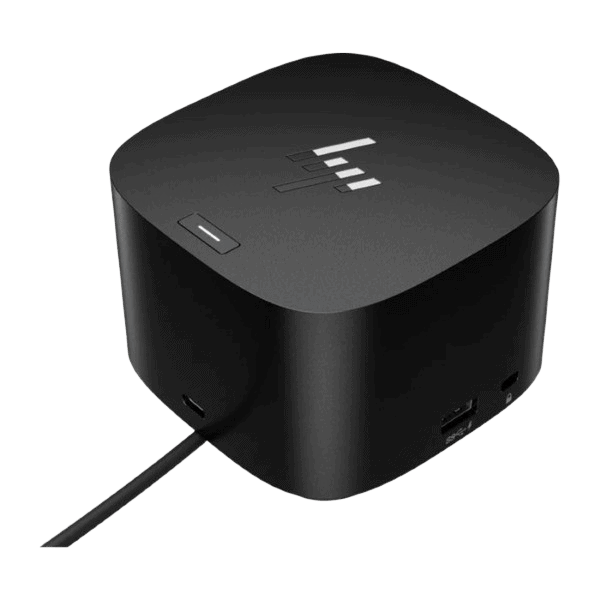

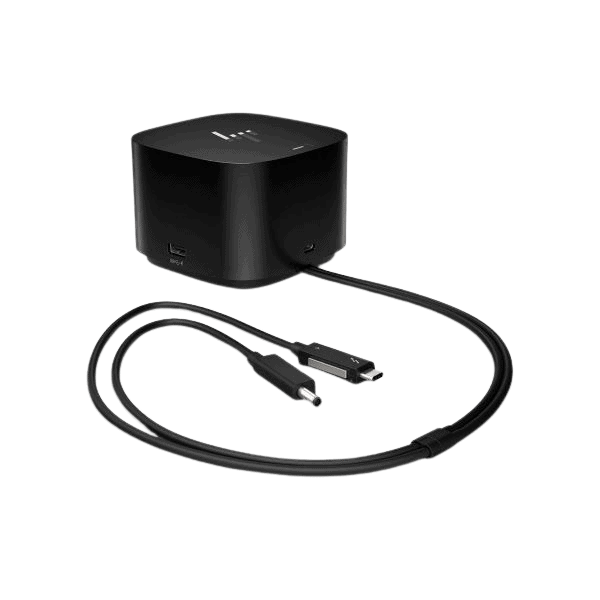

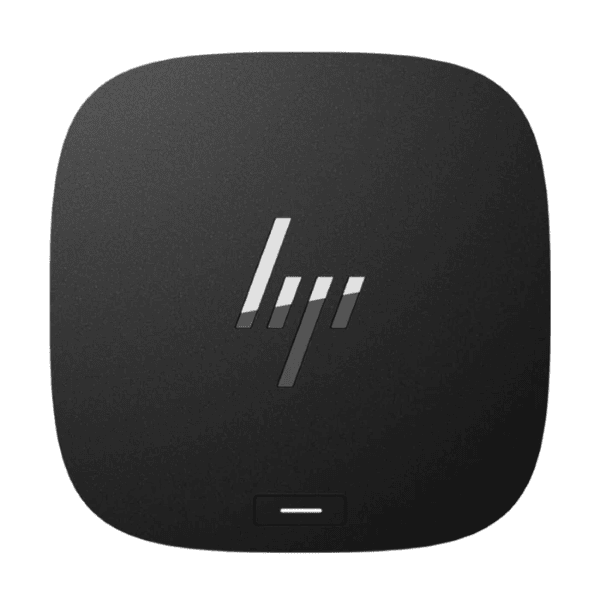

HP 120W Thunderbolt G4 Docking Station

The HP 120W Thunderbolt G4 Docking Station is a powerful and versatile docking solution designed for seamless connectivity. With multiple Thunderbolt 4 and USB ports, dual DisplayPort outputs, and Gigabit Ethernet, it enhances productivity for users with various devices. Ideal for both office and home environments, this dock supports high-resolution displays and delivers up to 120W of power, ensuring your devices stay charged and connected.

General Features

• Model: HP 120W Thunderbolt G4 Docking Station
• Type: Thunderbolt 4 Dock

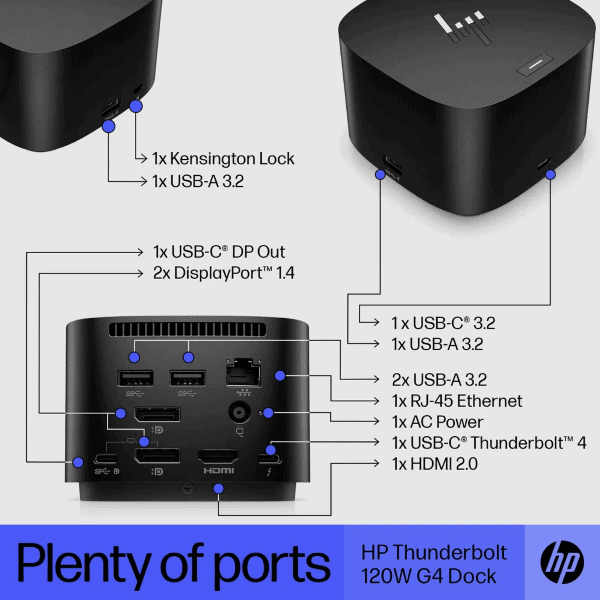

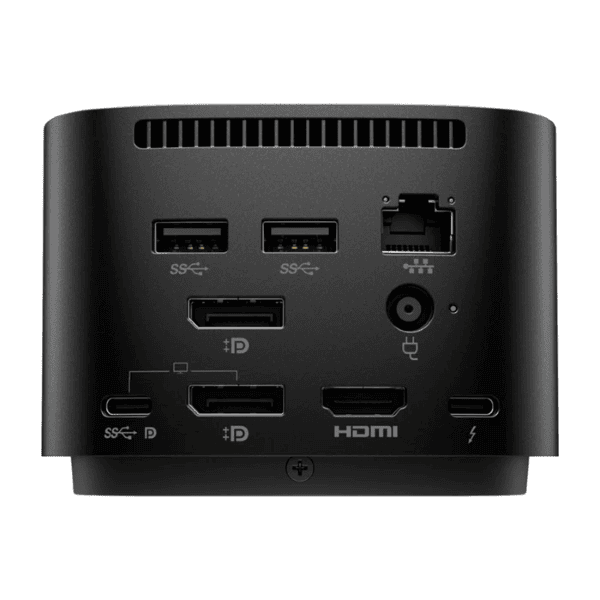

Ports and Connectivity

1. Thunderbolt Ports:
   • 2 x Thunderbolt 4 (one for host connection, one for daisy chaining)
2. USB Ports:
   • 2 x USB 3.2 Gen 1 Type-A
   • 2 x USB 3.2 Gen 1 Type-C (data only, one supports power delivery)
3. Video Outputs:
   • 2 x DisplayPort 1.4 (supports dual 4K displays)
   • 1 x HDMI 2.0
4. Audio:
   • 1 x 3.5mm audio output (combo headphone/microphone)
5. Ethernet:
   • 1 x RJ-45 (Gigabit Ethernet)
6. Security:
   • 1 x Smart card reader (optional)

Power

• Power Delivery: Up to 120W for connected devices

Dimensions and Weight

• Dimensions: ~10.04 x 4.02 x 1.38 inches (255 x 102 x 35 mm)
• Weight: Approximately 2.04 lbs (0.93 kg)

Compatibility

• Compatible with Thunderbolt 4 and USB-C devices, as well as select USB 3.0 devices.

Additional Features

• LED Indicators: Connection and power status indicators.
• Compact Design: Suitable for home and office environments.
• Fanless Design: Operates quietly.
