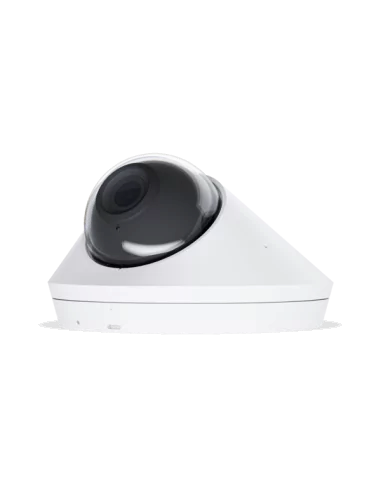

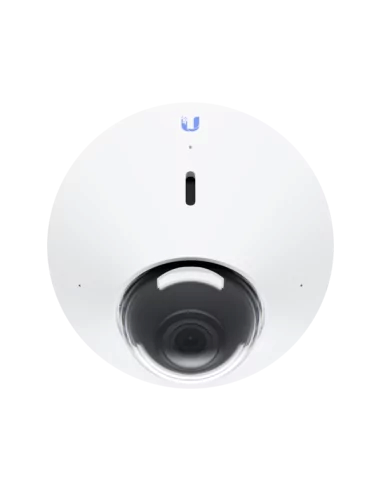

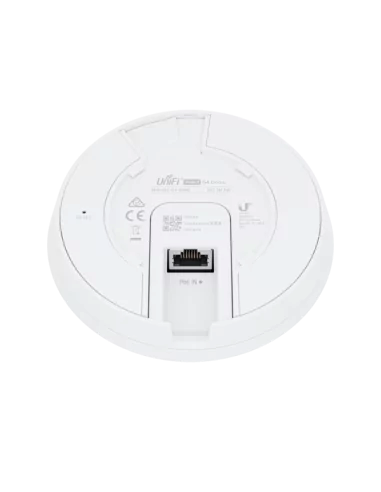

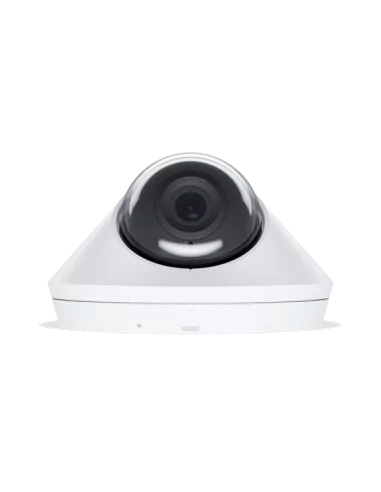

Ubiquiti UniFi Protect G4 Dome 4MP IP Camera

The Ubiquiti UniFi Protect G4 Dome is a high-performance 4MP IP camera designed for both indoor and outdoor surveillance. Equipped with a 5MP CMOS sensor and a fixed 4mm lens, it delivers crisp 2688 x 1512 resolution at 24 frames per second, ensuring clear and detailed video capture. Its integrated infrared LEDs and automatic IR cut filter provide reliable night vision capabilities, with a viewing angle of 86° horizontally, 60° vertically, and 111° diagonally.

The camera’s compact design features a weather-resistant IPX4-rated enclosure and IK08-rated vandal resistance, making it suitable for various installation environments. Powered via 802.3af PoE, it offers easy integration into existing networks and is managed through the UniFi Protect software platform. Additionally, the G4 Dome includes built-in two-way audio with a microphone and speaker, enhancing communication capabilities. Its advanced image processing is supported by an Ambarella SoC and 512 MB of memory, ensuring smooth and efficient operation.

🔧 Technical Specifications

General

• Model: UVC-G4-DOME

• Processor: Quad-core ARM Cortex-A53

• Networking Interface: Gigabit Ethernet (RJ45)

• Power Method: 802.3af PoE (44–57V DC)

• Max Power Consumption: 5W

• Operating Temperature: -20 to 40°C (-4 to 104°F)

• Operating Humidity: 0 to 90% non-condensing

• Certifications: CE, FCC, IC

Camera

• Sensor: 5MP CMOS

• Lens: Fixed focal length

• Field of View: Horizontal: 86°, Vertical: 60°, Diagonal: 111°

• Resolution: 2688 x 1512 (16:9)

• Max Frame Rate: 24 FPS

• Night Vision: Built-in IR LEDs with IR cut filter, up to 9m (30 ft) range

• Video Compression: H.264

• Image Settings: Brightness, contrast, sharpness, saturation, noise reduction, 50/60 Hz

Audio

• Microphone: Yes (can be disabled in software)

• Speaker: Yes

• Two-Way Audio: Supported

Mounting

• Included Mounts: Wall and ceiling mount

• Optional Mounts: Junction box, arm mount

• Mount Diameter: 1.5–2″ (38–50 mm)

Enclosure

• Materials: Aluminum alloy, polycarbonate, hard-coated dome

• Dimensions (without mount): Ø109.2 x 64.5 mm (Ø4.3 x 2.5″)

• Weight (without mount): 370 g (13.05 oz)

• Weight (with mount): 390 g (13.76 oz)

• Weatherproofing: IPX4

• Impact Resistance: IK08

Software Compatibility

• UniFi Protect Web Application: Version 2.7.18 and later

• UniFi Protect Mobile App: iOS™ and Android™ Version 1.11.0 and later
