Huawei IdeaHub OPS PC I5-10500 DDR4 8GB 128GB SSD W10

The Huawei IdeaHub OPS PC I5-10500 DDR4 8GB 128GB SSD W10 is a compact and powerful computing module designed for seamless integration with Huawei IdeaHub displays. It features an Intel Core i5-10500 processor, 8GB DDR4 RAM, and a 128GB SSD, making it ideal for high-performance tasks. With built-in Wi-Fi, Bluetooth, and multiple connectivity options, this OPS PC offers robust performance in a sleek, fanless design, perfect for modern collaborative environments.

Huawei IdeaHub OPS PC with Intel Core i5-10500, DDR4 8GB RAM, 128GB SSD, Windows 10:

General Specifications:

• Brand: Huawei
• Model: IdeaHub OPS PC
• Operating System: Windows 10 (Pre-installed)

Processor:

• Processor Type: Intel Core i5-10500
• Cores: 6 Cores
• Threads: 12 Threads
• Base Clock Speed: 3.10 GHz
• Max Turbo Frequency: 4.50 GHz
• Cache: 12 MB Intel Smart Cache
• TDP (Thermal Design Power): 65W

Memory:

• Installed RAM: 8GB DDR4
• Memory Speed: 2666 MHz
• Expandable: Yes, up to 32GB

Storage:

• Primary Storage: 128GB SSD
• Storage Type: M.2 NVMe SSD
• Additional Storage Options: Expandable via additional SSD or HDD slots

Graphics:

• Integrated Graphics: Intel UHD Graphics 630

Connectivity:

• Wi-Fi: Yes, 802.11ac
• Bluetooth: Yes, Bluetooth 5.0
• Ethernet: Yes, Gigabit Ethernet

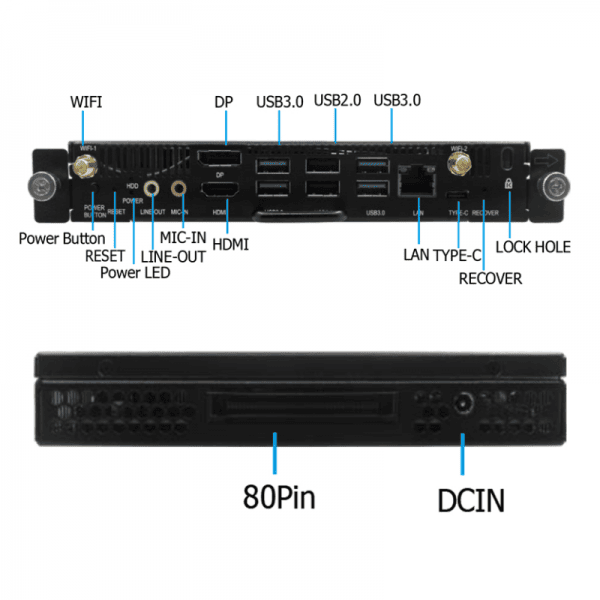

Ports and Interfaces:

• USB Ports: Multiple USB 3.0/2.0 ports
• HDMI: Yes, 1 HDMI output
• DisplayPort: Yes, 1 DisplayPort output
• Audio: 3.5mm audio jack
• Other Ports: RJ45 Ethernet port, COM port, and others as specified by Huawei

Form Factor:

• Form Factor: OPS (Open Pluggable Specification) PC
• Dimensions: Standard OPS dimensions (100mm x 30mm x 200mm, approximate)

Power Supply:

• Power Supply: 19V/4.74A (90W)

Additional Features:

• Fanless Design: Yes, for silent operation
• Compatibility: Compatible with Huawei IdeaHub series for seamless integration

Certifications:

• Compliance: RoHS, CE, FCC

This compact and powerful OPS PC is designed to work seamlessly with Huawei’s IdeaHub series, offering robust performance in a small form factor ideal for collaborative environments.
