Huawei IdeaHub Wall Mount Bracket 65/75/86 Inch

The Huawei IdeaHub Wall Mount Bracket 657586 Inch is a durable, high-strength mounting solution designed for 65-inch, 75-inch, and 86-inch Huawei IdeaHub displays. It features a secure, fixed position with VESA compatibility, supporting up to 100 kg. Ideal for corporate and educational environments, it offers easy installation on concrete, brick, or wood stud walls, with safety features like a locking mechanism and optional anti-theft design.

Huawei IdeaHub Wall Mount Bracket Specifications

Compatibility:

• Supported Sizes: 65-inch, 75-inch, 86-inch Huawei IdeaHub displays
• Supported Models:
  • Huawei IdeaHub S Series
  • Huawei IdeaHub Pro Series

Design:

• Mount Type: Wall mount bracket
• Orientation: Landscape
• Material: High-strength steel and aluminum alloy
• Color: Matte black
• Finish: Anti-corrosion, powder-coated

Dimensions & Weight:

• Bracket Dimensions:
  • Adjustable to fit the different display sizes (specific dimensions provided in the installation guide)
• Weight Capacity: Supports up to 100 kg (220 lbs)
• Bracket Weight: Approx. 5-10 kg (varies with size)

Installation:

• VESA Compatibility:

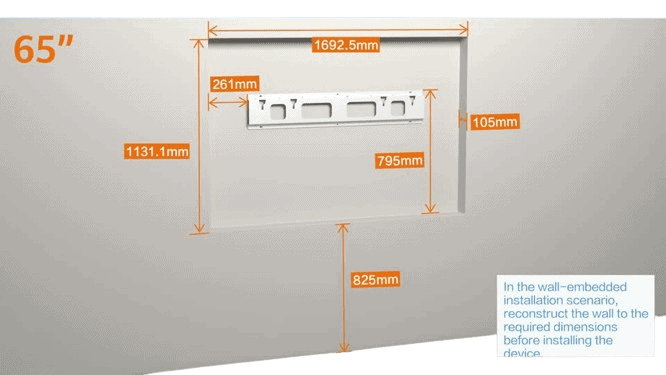

  • 65-inch: 400 x 400 mm
  • 75-inch: 600 x 400 mm
  • 86-inch: 800 x 400 mm
• Wall Compatibility:
  • Suitable for concrete, brick, and wood stud walls
• Tilt Adjustment: 0° (fixed position, no tilt)
• Mounting Hardware:
  • Includes bolts, screws, and washers for installation
  • Mounting template and user manual included

Safety & Compliance:

• Safety Features:
  • Secure locking mechanism to prevent accidental dislodging
  • Anti-theft design (optional padlock compatibility)
• Certifications:
  • CE, FCC, RoHS compliant

Environmental Conditions:

• Operating Temperature: -10°C to 40°C (14°F to 104°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity: 10% to 90% non-condensing

Warranty:

• Warranty Period: 1-year limited warranty
