Ubiquiti UniFi Security Gateway Pro (USG-PRO-4) Controller

The Ubiquiti UniFi Security Gateway Pro (USG-PRO-4) is a high-performance router with 4 Gigabit LAN ports and advanced security features, including firewall and VPN support. It integrates with the UniFi Controller for easy management and is ideal for medium to large-scale network deployments.

Ubiquiti UniFi 4-Port Security Gateway Pro-Version (USG-PRO-4) Specification

Overview:

The Ubiquiti UniFi Security Gateway Pro (USG-PRO-4) is a high-performance router designed to provide secure and efficient networking solutions for enterprise and professional environments. It offers advanced firewall protection, VPN support, and scalability for UniFi networks.

Key Features:

• Advanced Security: Includes firewall and VPN features to protect your network from external threats.
• Routing Features: Supports dynamic routing protocols (RIP, OSPF, BGP), VLANs, and advanced routing.
• Scalability: Ideal for medium to large-scale deployments with scalability options for growing networks.
• UniFi Controller Integration: Seamless integration with the UniFi Controller software for simplified management and monitoring.
• Reliable Performance: High throughput and low latency for consistent network performance.

Hardware Specifications:

• Processor: Dual-core 1.7 GHz ARM Cortex-A9 CPU
• Memory: 2 GB DDR3 RAM
• Storage: 1 GB Flash Storage
• Ethernet Ports:
  • 4 Gigabit Ethernet Ports (LAN)
  • 1 Gigabit Ethernet WAN port (for connecting to the Internet)
• Power Supply: 100-240V AC, 50-60Hz, Power over Ethernet (PoE)
• PoE Output: 24V Passive PoE for powering UniFi devices (e.g., Access Points)
• Cooling: Active fan cooling for efficient heat dissipation
• Form Factor: Rackmountable (1U height)

Networking Features:

• Routing Protocols: Supports static routing, dynamic routing (RIP, OSPF, BGP), and VLAN support.
• Firewall: Advanced firewall policies, security groups, and traffic filtering to ensure secure data flow.
• VPN Support: Supports VPN services such as IPsec, L2TP, PPTP, and OpenVPN, allowing remote access to the network.
• Quality of Service (QoS): Helps prioritize network traffic for optimized performance in high-demand environments.
• Load Balancing: Automatic load balancing for Internet connections to optimize bandwidth utilization.

Management & Monitoring:

• UniFi Controller Software: Fully integrated with the UniFi Controller for management and monitoring of network devices.
• Remote Management: Cloud-based or local access via the UniFi Controller app to manage network settings and troubleshoot issues.
• Performance Monitoring: Real-time performance statistics, logs, and alerts for network health.

Environmental Specifications:

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -25°C to 70°C (-13°F to 158°F)
• Operating Humidity: 5% to 95% non-condensing
• Dimensions: 1.7 x 17.7 x 11.0 inches (44.2 x 449.6 x 279.4 mm)
• Weight: 2.2 kg (4.85 lbs)

Certifications:

• FCC: Compliant with FCC regulations for electronic devices
• CE: Compliant with CE (Conformité Européene) standards

Use Cases:

• Enterprise Networks: Perfect for businesses requiring secure, high-performance routing with advanced security features.
• Large Scale Deployments: Suitable for larger network environments, offering the flexibility for future expansions.
• Remote Work Solutions: Ideal for organizations offering remote VPN access for employees.

Warranty:

• Warranty: 1-year limited warranty

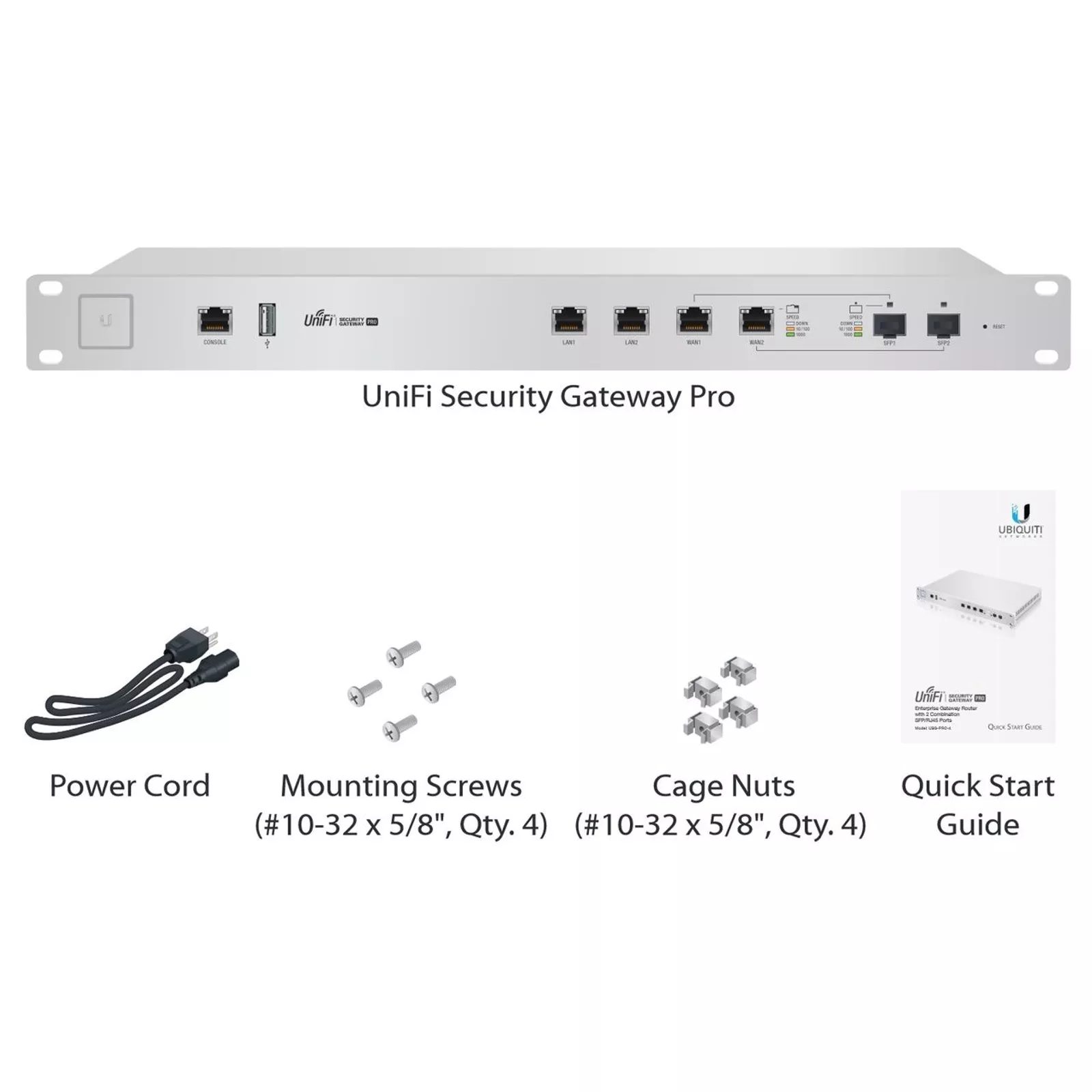

Included in Box:

• USG-PRO-4 Security Gateway
• Rackmount Kit
• Power Cord
• Quick Start Guide
