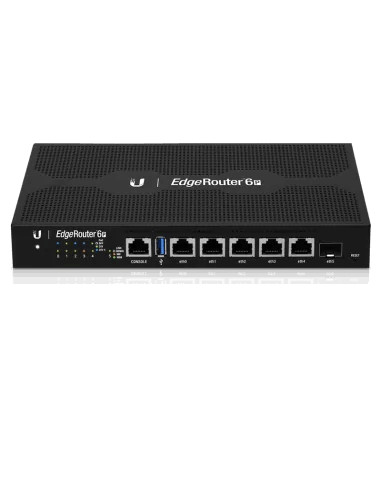

Ubiquiti UISP EdgeRouter 6Port Gigabit with PoE

The Ubiquiti UISP EdgeRouter 6-Port is a versatile and powerful router that offers advanced networking features, including Layer 3 routing, advanced firewall rules, and VPN support. It is equipped with six Gigabit Ethernet ports, with four PoE-enabled ports that can power Ubiquiti devices like airMAX radios, access points, and cameras directly through the Ethernet cable. It also offers a dedicated SFP port for fiber optic connectivity, making it ideal for both wired and wireless network environments.

Key Specifications:

1. Ports:

   • Total Ports: 6 Gigabit Ethernet ports (10/100/1000 Mbps)
   • PoE Ports: 4 PoE (Power over Ethernet) ports supporting 24V passive PoE to power devices like Ubiquiti access points, airMAX radios, and IP cameras.
   • WAN Port: 1 dedicated WAN port.
   • LAN Ports: 3 dedicated LAN ports for local devices.
   • SFP Port: 1 x Gigabit SFP (fiber optic) port for long-range uplinks or high-speed connectivity.

2. PoE Support:

   • PoE Standards: 24V passive PoE (not IEEE 802.3af/at), supporting devices that require passive PoE for power.
   • PoE Output Power: Up to 15.4W per port (maximum power provided for devices like Ubiquiti wireless radios, cameras, etc.).

3. Performance:

   • CPU: Dual-Core 880 MHz processor for efficient routing and handling multiple network tasks simultaneously.
   • RAM: 512MB DDR3 memory for seamless multitasking.
   • Flash Storage: 2GB for system functions and software storage.
   • Routing Capacity: Capable of throughput up to 3.4 Gbps depending on network traffic and configuration.
   • Switching Capacity: Supports high-speed data transmission with a forwarding rate of up to 4.0 Gbps.

4. Power Input:

   • Power Supply: 24V DC (via a 1A power adapter included).
   • PoE: Can receive power through 24V passive PoE on any of the Ethernet ports, eliminating the need for a separate power adapter.
   • Power Consumption: Maximum power consumption is 12W for the router itself.

5. Software Features:

   • EdgeOS Interface: Managed via the intuitive EdgeOS graphical interface, which allows easy configuration, monitoring, and management of the router.
   • Advanced Routing: Supports advanced routing protocols like OSPF, BGP, VLAN tagging, and static routing.
   • VPN Support: Provides secure remote access with support for IPsec, PPTP, L2TP, and OpenVPN protocols.
   • Firewall Features: Configurable stateful firewall rules for managing inbound and outbound traffic.
   • Traffic Shaping: Enables traffic prioritization to improve Quality of Service (QoS) for critical applications.
   • DHCP Server: Built-in DHCP server for assigning IP addresses to network devices.
   • Dynamic DNS (DDNS): Allows the router to automatically update a DNS record when the external IP changes.

6. Security Features:

   • Advanced Firewall Protection: Customizable firewall rules to protect the network from unauthorized access.
   • VPN Security: Encrypts data traffic for secure remote access via IPsec, PPTP, L2TP, or OpenVPN.
   • Intrusion Detection and Prevention (IDS/IPS): Built-in security features to protect against network threats.

7. Management and Monitoring:

   • EdgeOS Interface: Easy-to-use web interface for quick setup and monitoring of network health.
   • Command-Line Interface (CLI): For advanced users, the router can also be configured via CLI commands.
   • SNMP Support: For integration with network management systems and monitoring tools.
   • Syslog Support: Enables logging for network diagnostics and troubleshooting.
   • Remote Management: Can be remotely managed via UNMS (Ubiquiti Network Management System) for centralized control of multiple Ubiquiti devices.

8. Environmental Ratings:

   • Operating Temperature: -5°C to +45°C (23°F to 113°F), suitable for a wide range of environments.
   • Storage Temperature: -25°C to +70°C (-13°F to 158°F).
   • Humidity: 5% to 95% non-condensing.

9. Physical Dimensions:

   • Dimensions (L x W x H): 185 x 130 x 35 mm (7.28 x 5.12 x 1.38 inches)
   • Weight: 0.55 kg (1.2 lbs)

10. Cooling:

    • Cooling Method: Passive cooling (no fans), ensuring quiet operation and reduced maintenance.

11. Mounting:

    • Wall Mountable: Includes wall-mounting brackets for easy installation in tight spaces.
    • Rack Mountable: Optional rackmount kit available for 19-inch racks.

Features:

• 6 Gigabit Ethernet Ports: Ideal for connecting multiple devices with high-speed, reliable Ethernet ports.
• 4 PoE Ports: Powers Ubiquiti devices directly over Ethernet, reducing cable clutter and eliminating the need for additional power adapters.
• SFP Port: Offers fiber optic connectivity for high-speed and long-distance uplinks.
• Advanced VPN Support: Secure, encrypted remote access via multiple VPN protocols.
• Firewall & Security: Provides advanced firewall configurations to secure your network.
• EdgeOS Software: Full-featured management interface with advanced network configurations and monitoring.
• Traffic Management: Bandwidth management and QoS to optimize critical applications.

Applications:

• Small to Medium Business Networks: Ideal for businesses requiring advanced security, routing, and network management features.
• Home Networks: Perfect for advanced home networking setups requiring multiple wired and PoE-powered devices.
• WISP (Wireless Internet Service Providers): Suitable for WISP networks needing to power remote devices like airMAX radios, cameras, and access points.
• Remote Office VPN Access: Provides secure access to corporate networks via VPN.
• Fiber Optic Connectivity: For long-range, high-speed connections using the SFP port.
