Ubiquiti UniFi Switch 16 Port Gigabit 8PoE 42W 2SFP | USW

The Ubiquiti UniFi USW-16-POE is a 16-port managed Gigabit switch with 8 PoE+ ports (42W budget) and 2 SFP uplink ports. It offers 36 Gbps switching capacity, silent fanless operation, and centralized management via the UniFi Network Controller, making it ideal for small-to-medium businesses.

Specification for Ubiquiti UniFi 16-Port Gigabit Switch with 8 PoE Ports (42W) and 2 SFP Ports | Model: USW-16-POE

---

General Description:

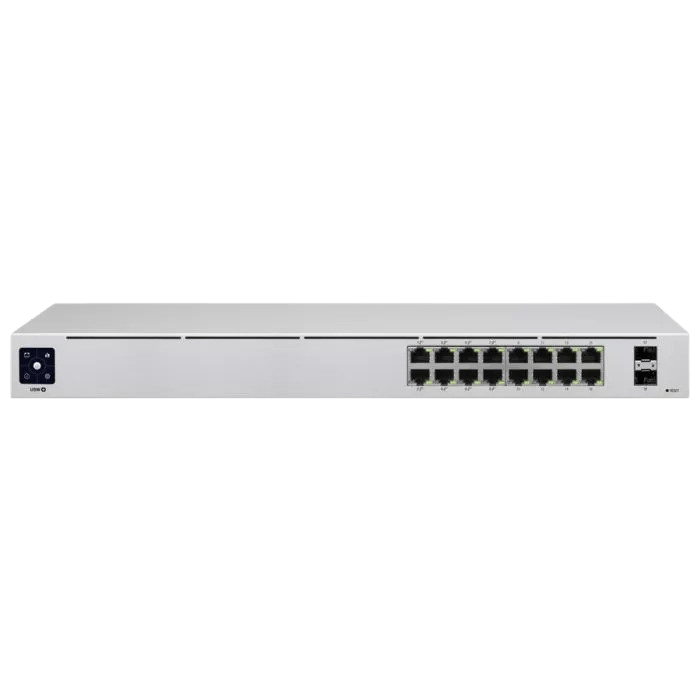

The Ubiquiti UniFi USW-16-POE is a fully managed Layer 2 switch designed for advanced network configurations. It offers 16 Gigabit Ethernet ports, 8 of which support Power over Ethernet (PoE), delivering a total PoE budget of 42W. Additionally, the switch includes 2 SFP ports for fiber connectivity, enabling seamless uplink and aggregation options.

---

Key Features:

• Port Configuration:
  • 16 x Gigabit RJ45 Ethernet Ports.
  • 8 x PoE+ Ports (802.3af/at) with a total PoE power budget of 42W.
  • 2 x SFP Ports for high-speed fiber connectivity.
• Performance:
  • Switching Capacity: 36 Gbps.
  • Forwarding Rate: 26.78 Mpps.
  • Packet Buffer: 512 KB.
  • Non-Blocking Throughput.
• Power and PoE:
  • Total PoE Power Budget: 42W.
  • PoE Standards Supported: IEEE 802.3af/at.
• Management:
  • Managed via UniFi Network Controller for centralized control.
  • Supports advanced Layer 2 features such as VLAN, port isolation, and link aggregation.
• Design:
  • Fanless, silent operation.
  • Desktop or rack-mountable design (rack ears included).
• Environment:
  • Operating Temperature: -5°C to 40°C (23°F to 104°F).
  • Operating Humidity: 10% to 90% Noncondensing.

---

Technical Specifications:

Feature	Specification
Model	USW-16-POE
Interfaces	16 x RJ45 Gigabit Ethernet Ports
	2 x SFP Ports
PoE Ports	8 x 802.3af/at
PoE Budget	42W
Switching Capacity	36 Gbps
Forwarding Rate	26.78 Mpps
Layer Support	Layer 2
Management Interface	UniFi Network Controller
Dimensions	442.4 x 43.7 x 200 mm
Weight	2.55 kg (5.62 lbs)
Power Input	100-240VAC, 50/60 Hz, Universal
Certifications	CE, FCC, IC
Fan	Fanless Design

---

Application Scenarios:

• Ideal for small to medium-sized businesses.
• Supports IP cameras, VoIP phones, and wireless access points with PoE+ power.
• High-speed uplinks with SFP modules for connectivity to core switches or servers.

---

Additional Information:

• Compatible with the UniFi Network ecosystem for seamless integration.
• Requires UniFi Network Controller version 5.11.27 or newer for management.
