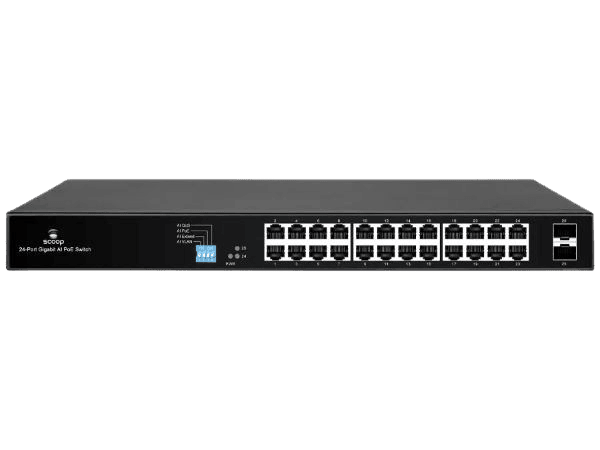

Scoop 24 Port Gigabit AI PoE 250W 2SFP Switch

The Scoop 24 Port Gigabit AI PoE Switch features 24 Gigabit Ethernet ports with a total PoE power budget of 250W, making it ideal for powering devices like IP cameras and access points. With 2 SFP uplink ports, it supports flexible network expansion.

This smart managed switch offers robust performance with a switching capacity of 48 Gbps, VLAN support, and QoS features, all in a compact, fanless design suitable for various environments. It’s perfect for businesses looking to enhance their network infrastructure efficiently.

General Specifications

• Model: Scoop 24 Port Gigabit AI PoE Switch
• Ports:
  • 24 x 10/100/1000 Mbps Gigabit Ethernet ports
  • 2 x SFP (Small Form-factor Pluggable) uplink ports

Power over Ethernet (PoE)

• PoE Standard: IEEE 802.3af/802.3at
• Total PoE Power Budget: 250W
• PoE Ports: All 24 Gigabit ports support PoE

Performance

• Switching Capacity: 48 Gbps
• Forwarding Rate: 35.7 Mpps (million packets per second)
• MAC Address Table: 16,384 entries
• Jumbo Frame Support: Up to 9K bytes

Management Features

• Management Type: Smart managed
• Web Management: Yes
• SNMP Support: Yes
• VLAN Support: Yes, supports up to 4096 VLANs (IEEE 802.1Q)
• QoS (Quality of Service): Yes, with 802.1p priority tagging

Networking Features

• Link Aggregation: Yes, supports LACP (Link Aggregation Control Protocol)
• Spanning Tree Protocol: Yes, supports STP/RSTP/MSTP
• DHCP Snooping: Yes
• Static Routing: Yes
• IGMP Snooping: Yes

Physical Specifications

• Dimensions: Approx. 440mm x 220mm x 44mm (17.3″ x 8.7″ x 1.7″)
• Weight: Approx. 3.5 kg

Environmental Specifications

• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90% (non-condensing)

Power Specifications

• Power Input: 100-240V AC, 50/60 Hz
• Power Consumption: Typically less than 300W (including PoE power)

Additional Features

• Cooling: Fanless design for silent operation
• Mounting: Rack mountable (1U height)

Applications include:

1. IP Surveillance: Ideal for connecting and powering IP cameras in security systems, providing both data and power through a single cable.
2. Wireless Access Points: Supports the deployment of multiple wireless access points to extend Wi-Fi coverage in offices or large areas.
3. VoIP Phones: Powers Voice over IP phones, simplifying installation and reducing cable clutter.
4. Smart Building Solutions: Suitable for connecting and powering smart devices in smart buildings, such as sensors and controllers.
5. Network Expansion: Enhances existing networks by providing additional ports for devices in business environments, schools, or hospitals.
6. VLAN Segmentation: Supports VLANs to segment traffic for improved network performance and security.
7. QoS Management: Ensures prioritized bandwidth for critical applications, such as voice and video, enhancing overall network performance.
