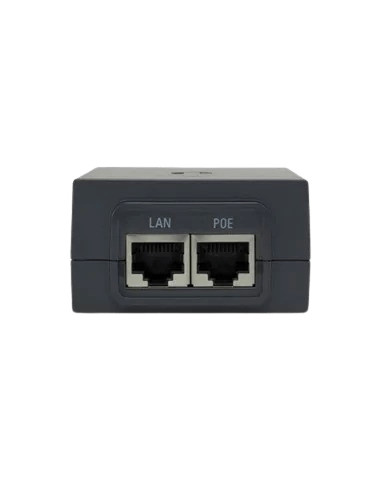

Ubiquiti POE Injector – 24V

The Ubiquiti POE Injector – 24V is designed to deliver 24V power over Ethernet (PoE) to compatible Ubiquiti devices. It simplifies the installation process by providing both power and data over a single Ethernet cable. Below are the key specifications:

1. Electrical Specifications:

• Input Voltage: 100–240V AC (Universal input)
• Output Voltage: 24V DC (PoE)
• Output Power: Typically up to 24W
• Max Output Current: 1A at 24V DC

2. Connector Types:

• Input Port: 1 × RJ45 (Ethernet data input)
• Output Port: 1 × RJ45 (PoE output to powered device)
• PoE Output: Delivers both power and data over the same Ethernet cable.

3. Performance:

• Ethernet Speed: Typically supports 10/100 Mbps Ethernet.
• PoE Standard: Designed for devices that require 24V PoE power.

4. Physical Characteristics:

• Form Factor: Compact, desktop design for small installations.
• Dimensions: Approximately 80mm x 55mm x 30mm (3.1 x 2.2 x 1.2 inches).
• Weight: Around 0.1 kg (3.5 oz).
• Housing: Made of durable plastic.

5. Environmental Specifications:

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)

6. Safety and Compliance:

• Certifications: CE, FCC, UL certified for safety and electromagnetic compatibility.
• Surge Protection: Built-in surge protection to prevent damage from power surges.
• Short Circuit Protection: Protects both the injector and powered devices from short circuits.

7. Applications:

• Ubiquiti Devices: Powers Ubiquiti devices such as certain models of airMAX, NanoStation, or other 24V-powered equipment.
• Indoor Use: Primarily designed for indoor network installations.

8. Features:

• Plug-and-Play: Easy to install with no configuration required.
• Compact and Space-Efficient: Ideal for small installations and limited space.

9. Included Accessories:

• Ethernet Cable: Usually included for connecting the injector to the device (varies by package).

The Ubiquiti POE Injector – 24V is an effective solution for powering Ubiquiti 24V devices, offering convenient PoE power and data transmission over a single Ethernet cable for efficient installation.
