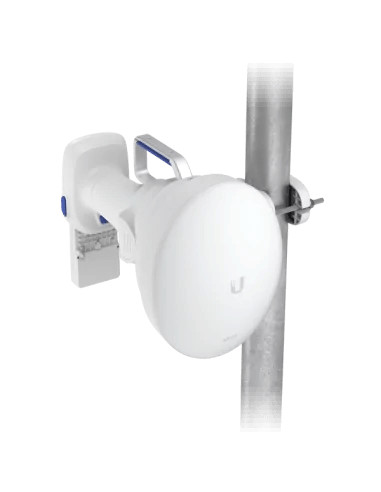

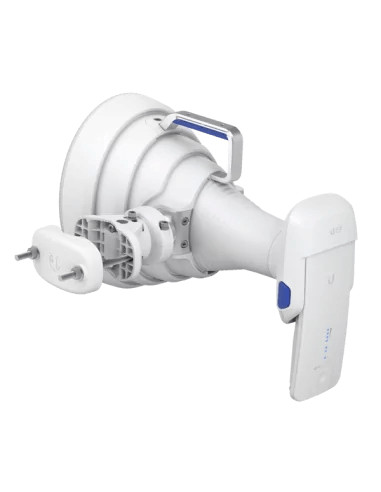

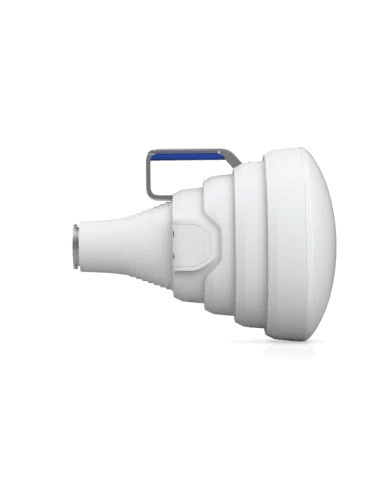

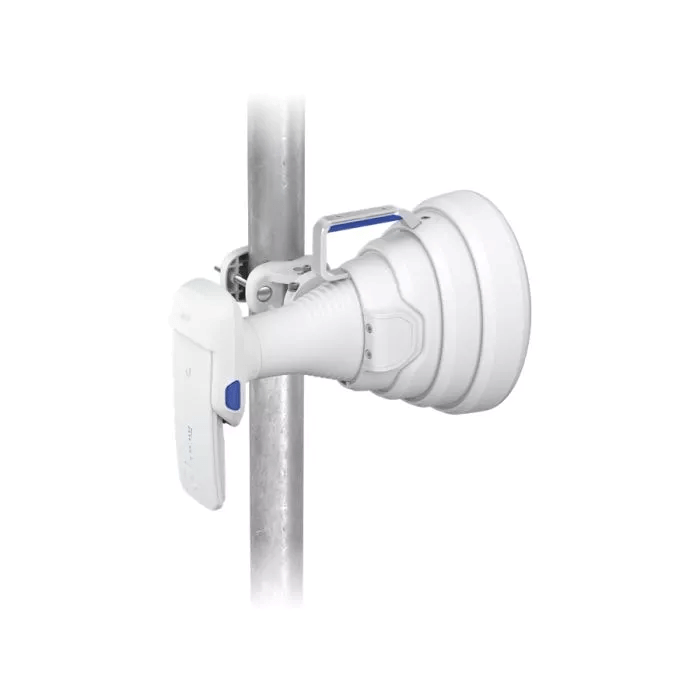

Ubiquiti UISP 5GHz High-isolation horn antenna

The Ubiquiti UISP 5GHz High-Isolation Horn Antenna is a powerful, directional antenna designed to enhance long-range wireless connectivity. With a high isolation design, it provides superior signal strength and reduced interference, making it perfect for point-to-point (PtP) and point-to-multi-point (PtMP) wireless communication in demanding environments.

Specifications:

• Frequency: 5 GHz
• Antenna Type: High-Isolation Horn Antenna
• Gain: 24 dBi
• Beamwidth: 15° (Horizontal), 15° (Vertical)
• Polarization: Linear (Vertical or Horizontal)
• Isolation: > 35 dB (High isolation for reduced interference)
• Connector: N-Type Female
• Power Handling: 50W (max)
• Impedance: 50 ohms
• Mounting: Standard 1.5-inch mounting bracket included
• Construction: Weather-resistant, durable materials suitable for outdoor use
• Dimensions: 240mm x 240mm x 520mm
• Weight: 2.8 kg (6.2 lbs)

• Operating Temperature:

  • Range: -40°C to 70°C (-40°F to 158°F)

• Certifications:

  • CE, FCC, IC

Applications:

1. Point-to-Point (PtP) Links: Ideal for long-distance, high-capacity wireless links between two locations, such as backhaul connections or connecting remote sites.
2. Point-to-Multi-Point (PtMP) Networks: Suitable for providing high-performance wireless connectivity to multiple endpoints in a PtMP configuration, ensuring minimal interference and maximum throughput.
3. High-Density Networks: Perfect for environments with high interference, like urban areas, offering superior isolation to maintain signal integrity.
4. Outdoor Wireless Networks: Excellent for use in outdoor wireless deployments, such as connecting remote buildings or areas that require reliable, high-speed wireless links.
5. Fixed Wireless Access (FWA): Provides high throughput and stable connections for fixed wireless access networks, such as rural broadband solutions.
