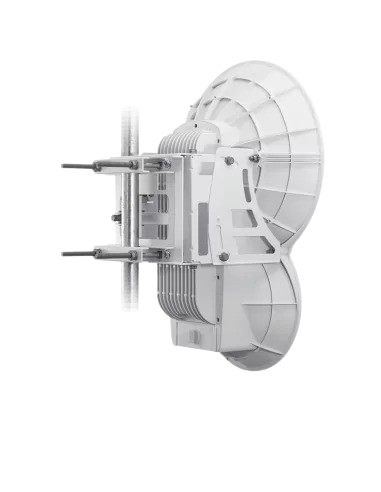

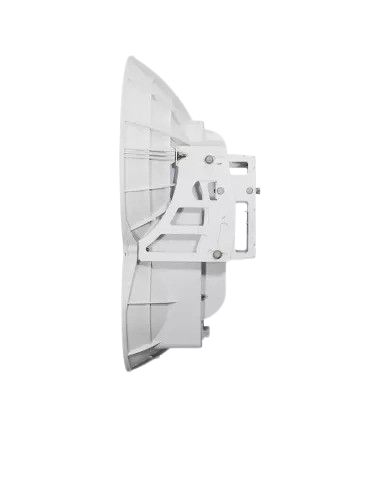

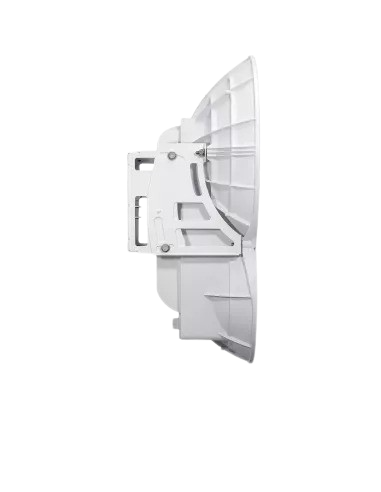

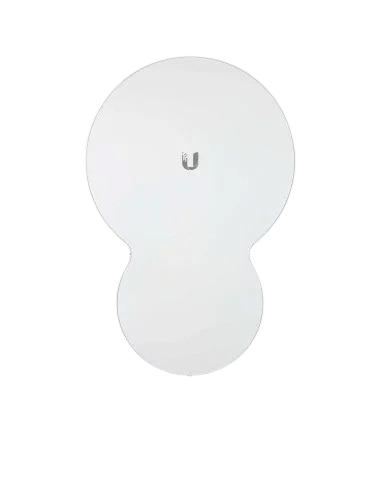

Ubiquiti UISP airFiber 24GHz PtP Pro Radio

Experience ultra-high-speed, low-latency wireless backhaul with the Ubiquiti Ubiquiti UISP airFiber 24GHz PtP Pro Radio. Engineered for long-range, point-to-point connectivity, this 24GHz airFiber radio delivers fiber-like performance without the hassle of trenching. Designed for ISPs and enterprise networks, it features advanced beamforming technology, robust weather resistance, and seamless UISP integration for remote monitoring and management. Ideal for bridging network gaps in challenging environments, it offers unmatched reliability, precision, and throughput—perfect for mission-critical links where performance is non-negotiable.

🔧 Mechanical Specifications

• Dimensions: 649 x 426 x 303 mm (25.6 x 16.8 x 11.9″)

• Weight: 10.5 kg (23.2 lb)

• Mounting: Pole mount kit included

• Wind Loading: 480 N @ 200 km/h (108 lbf @ 125 mph)

• Wind Survivability: 200 km/h (125 mph)

⚙️ Hardware & Connectivity

• Networking Interfaces:

  • (1) Gigabit Ethernet (GbE) RJ45 port

  • (1) 10/100 Mbps Ethernet RJ45 port

• Auxiliary Port: (1) RJ-12, alignment tone port

• Power Method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-, )

• Power Supply: 50V, 1.2A Gigabit PoE adapter (included)

• Supported Voltage Range: 42–58V DC

• Max. Power Consumption: 50W

🌐 System Performance

• Max. Throughput: 1.5+ Gbps

• Max. Range: 13+ km

• Packets per Second: 1 million

• Encryption: 128-bit AES

• Uplink/Downlink Ratio: Programmable in Half Duplex mode

• Latency:

  • Full Duplex Mode: < 200 µs at full throughput

  • Half Duplex Mode: < 2 ms at full throughput

• MTU (Maximum Transmission Unit): Up to 9600

📡 Radio Frequency (RF)

• Operating Frequency: 24.05 – 24.25 GHz

• Operating Channels: 24.1 GHz, 24.2 GHz

• Channel Bandwidth: 100 MHz

• Modulation:

  • 64QAM MIMO

  • 16QAM MIMO

  • QPSK MIMO

  • QPSK SISO

  • ¼x QPSK SISO

• EIRP (Effective Isotropic Radiated Power):

  • ~33 dBm (FCC/IC)

  • ~20 dBm (CE)

  • ~40 dBm (Other Regions)

• Frequency Accuracy:

  • ±2.5 ppm without GPS synchronization

  • ±0.2 ppm with GPS synchronization

• GPS: GPS clock synchronization

📡 Antenna & Beamforming

• TX Gain: 33 dBi

• RX Gain: 38 dBi

• Beamwidth: < 3.5°

• Front-to-Back Ratio: 70 dB

• Polarization: Dual-slant

• Cross-Polarity Isolation:

• 28 dB

  💡 LED Indicators

• (8) Status LEDs:

  • Data port speed

  • Data port link/activity

  • Configuration port speed

  • Configuration port link/activity

  • GPS synchronization

  • Modulation mode

  • Master/slave

  • RF status

• (1) Two-digit LED display calibrated in dBm

🌡️ Environmental & Compliance

• Operating Temperature: -40 to 55°C (-40 to 131°F)

• Certifications: CE, FCC, IC

• NDAA Compliant: Yes
