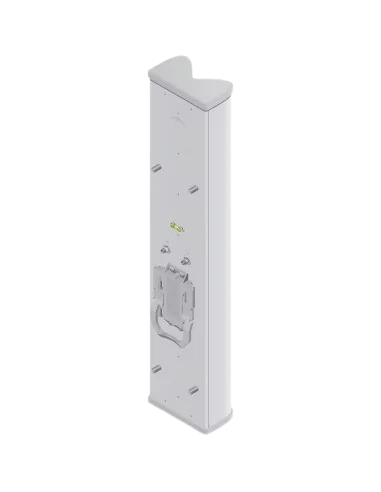

Ubiquiti UISP airMAX 2.4GHz 15dBi 120º Sector

The Ubiquiti AM-2G15-120 is a high-performance 2.4 GHz sector antenna designed for Point-to-MultiPoint (PtMP) deployments. With a 120° horizontal beamwidth and 15 dBi gain, it provides wide-area coverage, making it ideal for base station applications. The AM-2G15-120 antenna features dual-linear polarization, ensuring improved signal quality and reduced interference. Its robust mechanical design is built to withstand outdoor environments, and it is compatible with Ubiquiti’s RocketM series radios for seamless integration.

📡 Antenna Specifications

• Operating Frequency: 2.3 – 2.7 GHz

• Gain: 15 dBi

• Polarization: Dual-linear (Horizontal and Vertical)

• Horizontal Beamwidth: 120°

• Vertical Beamwidth: 15°

• Max VSWR: 1.5:1

• Cross-Polarity Isolation: >25 dB

• Front-to-Back Ratio: >20 dB

• Max. Input Power: 100 W

• Impedance: 50 Ohms

• Connectivity: 2 x RP-SMA connectors (for use with Rocket radios)

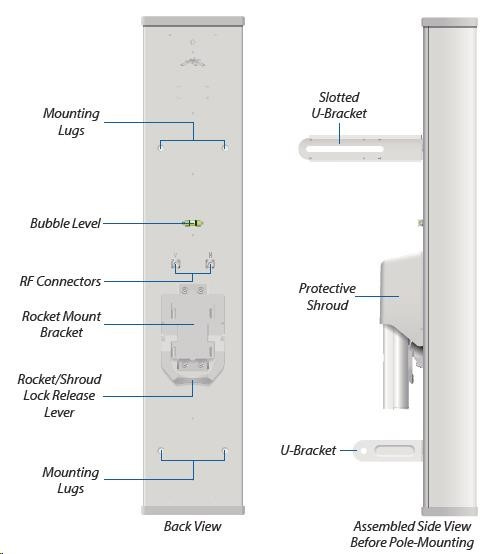

🛠️ Mechanical & Environmental

• Dimensions: 367 x 63 x 41 mm (14.45 x 2.48 x 1.61 in)

• Weight: 5.9 kg (13 lbs) including mounting

• Wind Survivability: 200 km/h (125 mph)

• Mounting: Pole-mount kit included

• Compatible Radios: RocketM2 and other Rocket series radios

• Material: Outdoor UV-stabilized plastic, metal reinforcement

• Weatherproofing: Yes (built for outdoor use)

🔧 Compatibility & Integration

• Designed for: airMAX PtMP deployments

• Integration: Seamless with Ubiquiti RocketM2 (attaches directly)

• RF Shielding: Compatible with optional RF Armor kits for additional noise isolation
