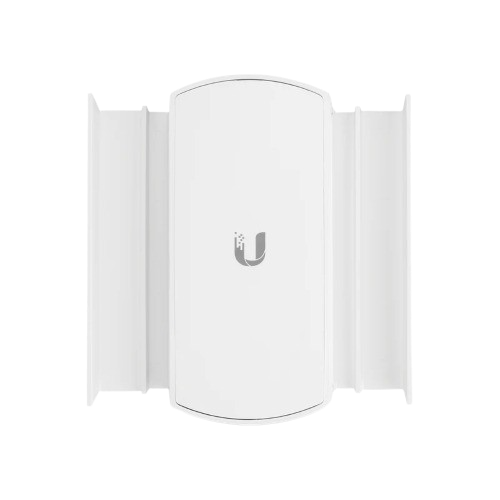

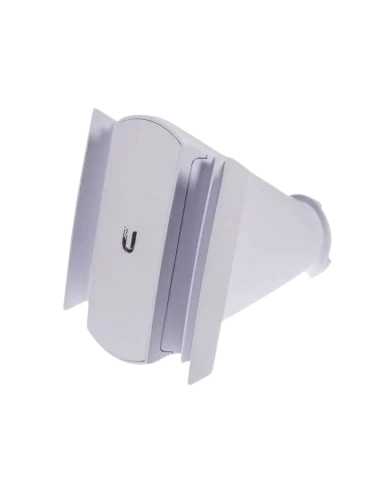

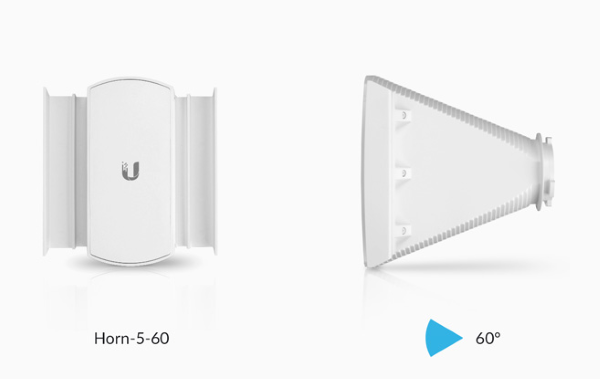

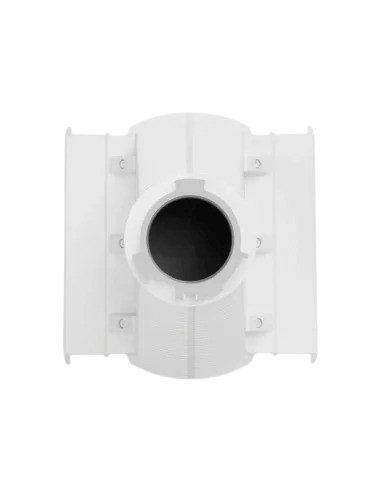

Ubiquiti UISP airMAX AC PrismStation 5GHz 60° Horn Antenna

The Ubiquiti UISP airMAX AC PrismStation 5GHz with 60° Horn Antenna is a powerful and highly directional radio system designed for efficient and focused point-to-multipoint (PtMP) deployments in congested RF environments. It integrates airMAX ac technology with a modular 60° horn antenna, delivering enhanced beam shaping, reduced interference, and improved co-location performance. The 60° horn provides a well-defined radiation pattern for optimal sector coverage, ideal for medium-density deployments. With airPrism active filtering, GPS sync capability, and support for high-throughput data rates, this PrismStation configuration ensures reliable, low-latency wireless communication. It is weather-resistant, compact, and managed via the UISP platform, making it perfect for ISPs and enterprise networks seeking scalable, interference-resistant connectivity.

📡 Wireless & RF Specifications

• Frequency Range: 5.15 – 5.85 GHz

• Gain: 16 dBi

• Beamwidth:

  • Horizontal: 60°

  • Vertical: 60°

  • Elevation: 30°

• Polarization: Dual-Linear

• Cross-Polar Isolation: 17 dB

• Maximum VSWR: 2:1

🧱 Mechanical & Environmental

• Dimensions: 161.6 × 173.3 × 170.9 mm (6.36 × 6.82 × 6.73″)

• Weight: 720 g (1.59 lb)

• Wind Loading (with PrismStation): 50 N at 200 km/h (11.24 lbf at 125 mph)

• Wind Survivability: 200 km/h (125 mph)

🔌 Compatibility

• Compatible Radios:

  • IsoStation IS-M5

  • IsoStation IS-5AC

  • PrismStation PS-5AC

  • airFiber AF-LTU

This antenna is ideal for medium-density deployments, offering enhanced co-location performance and reduced interference. Its modular design allows for easy integration with compatible Ubiquiti radios, making it a versatile choice for wireless network operators seeking efficient and scalable solutions.
