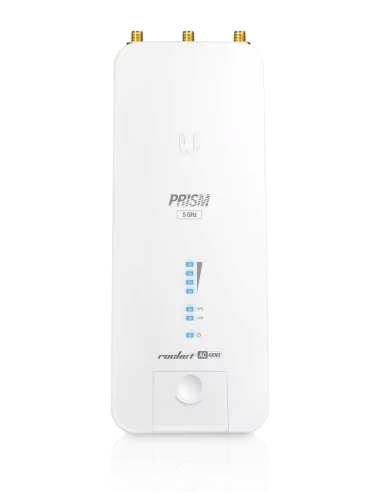

Ubiquiti UISP airMAX Rocket Prism AC 5GHz Radio

The Ubiquiti UISP airMAX Rocket Prism 5AC (RP-5AC-Gen2) is a high-performance 5 GHz base station designed for Point-to-MultiPoint (PtMP) and Point-to-Point (PtP) wireless links. It delivers up to 500+ Mbps of real TCP/IP throughput, making it suitable for high-density deployments. Equipped with airPrism technology, it offers advanced RF filtering to minimize interference and enhance signal quality. The device features a dedicated spectral analysis radio for real-time spectrum analysis and an integrated GPS sync for precise timing and coordination in large-scale networks. Its rugged design includes EMI-shielded metal housing and is capable of withstanding harsh environmental conditions. With support for various channel widths and advanced QoS features, the Rocket Prism 5AC is a versatile solution for demanding wireless networking applications

Mechanical Specifications

• Dimensions: 88 x 40 x 230 mm (3.47 x 1.58 x 9.06″)

• Weight: 400 g (14.1 oz)

• Enclosure Material: Die-cast aluminum with white powder coating

• Mounting: Pole mount kit included

• Wind Loading: 342.5 N at 200 km/h (77 lbf at 125 mph)

⚙️ Hardware Specifications

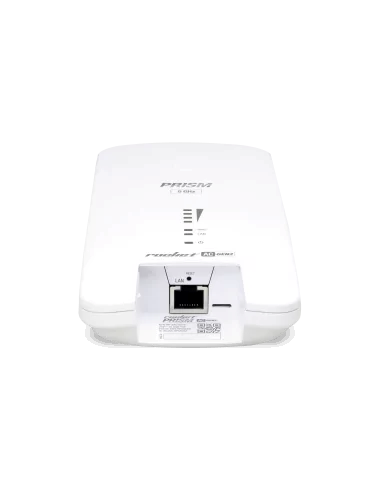

• Networking Interface: 1× Gigabit Ethernet (RJ45)

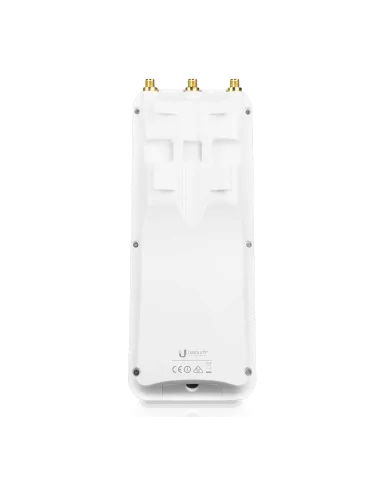

• RF Connectors: 2× RP-SMA (waterproof), 1× GPS (waterproof)

• Power Method: Passive PoE (pairs 4, 5+; 7, 8 return)

• Power Supply: 24V, 1A Gigabit PoE adapter (included)

• Supported Voltage Range: 18–27V DC

• Max Power Consumption: 9.5W

• Processor: MIPS 74Kc

• Memory: 128 MB DDR2 SDRAM

• LED Indicators: 4× Signal strength (software-adjustable), GPS, LAN, Power

• Operating Temperature: -40 to 80°C (-40 to 176°F)

• Operating Humidity: 5 to 95% noncondensing

• Certifications: CE, FCC, IC, RoHS

• ESD/EMP Protection: ±24 kV contact/air for Ethernet

• Shock and Vibration: ETSI300-019-1.4

📡 Radio Frequency (RF) Specifications

• Operating Frequency (Worldwide): 5150–5875 MHz

• Management Radio (Worldwide): 2412–2472 MHz

• Management Radio (USA): 2412–2462 MHz

🛠️ Software & Management Features

• Operating Modes: Access Point, Station

• Channel Sizes (PtP Mode): 10/20/30/40/50/60/80 MHz

• Channel Sizes (PtMP Mode): 10/20/30/40 MHz

• Services: Web server, SNMP, SSH server, Telnet, Ping watchdog, DHCP, NAT, Bridging, Routing

• Utilities: airMagic, airView, Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test

• Distance Adjustment: Dynamic Ack and Ackless mode

• Power Adjustment: Software adjustable UI or CLI

• Security: WPA2 AES only

• Quality of Service (QoS): Supports packet-level classification, WMM, and user/customer level: High/Medium/Low

• Statistical Reporting: Uptime, packet errors, data rates, wireless distance, Ethernet link rate

• Ubiquiti Specific Features: 30/50/60 MHz Channels, airMAX ac mode, traffic shaping with burst support, discovery protocol, frequency band offset, Ackless mode
