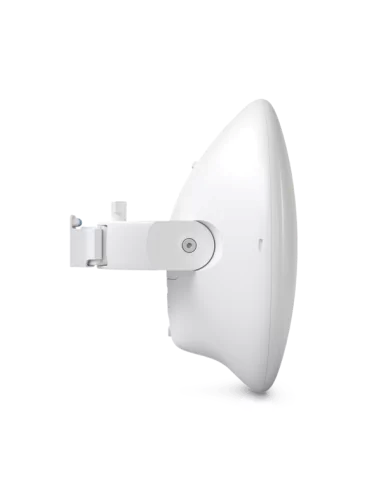

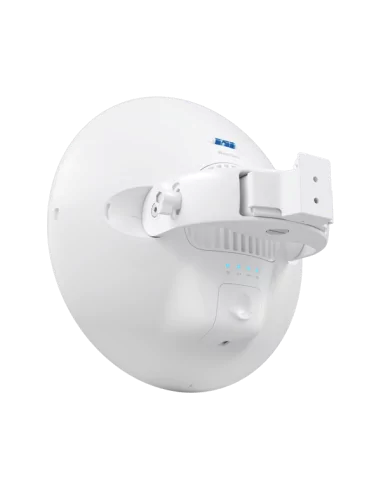

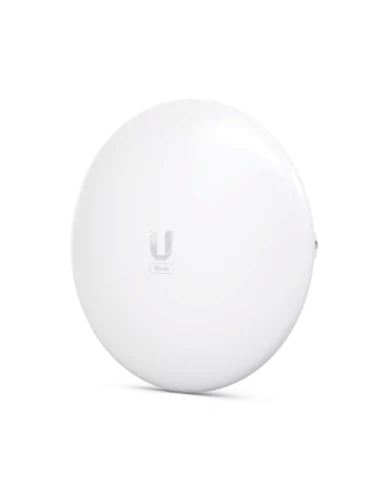

Ubiquiti UISP Wave Nano 60GHz/5GHz PtMP CPE Unit

The Ubiquiti UISP Wave Nano is a compact, high-speed customer premises equipment (CPE) device designed for Point-to-MultiPoint (PtMP) deployments using both 60GHz mmWave and 5GHz bands. Ideal for short to medium-range connections, it delivers up to 2 Gbps of low-latency throughput with robust fallback to 5GHz for weather resilience. Optimized for seamless integration into the UISP ecosystem, the Wave Nano features simple Bluetooth app setup, centralized network management, and advanced diagnostic tools. Its sleek, weather-resistant design ensures reliable outdoor performance, making it perfect for delivering last-mile gigabit connectivity in dense urban and suburban environments.

Mechanical Specifications

• Dimensions: Ø256.5 x 113.5 mm (Ø10.1 x 4.5″)

• Weight: 932 g (2.1 lb) without mount; 1.2 kg (2.6 lb) with mount

• Enclosure Materials: Aluminum alloy and UV-stabilized plastic

• Mounting Materials: Aluminum alloy and UV-stabilized plastic

• Pole Mount Diameter: 25 to 63.5 mm (1 to 2.5″)

• Wind Loading: 127 N at 200 km/h (28.6 lbf at 125 mph)

• Weatherproofing: IPX6

⚙️ Hardware Specifications

• Processor: Dual-core ARM Cortex-A53 at 1 GHz

• Memory: DDR3L 512 MB

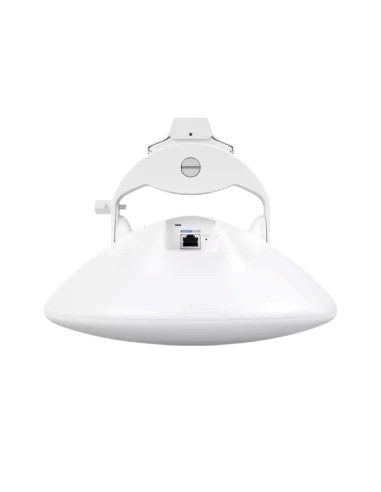

• Networking Interface: 1× Gigabit Ethernet (RJ45)

• Max. Power Consumption: 18W

• Power Input: 48V DC or 24V DC passive PoE

• Power Supply: 48V DC, 0.65A gigabit PoE adapter (included)

• GPS: Yes

• Button: Factory reset

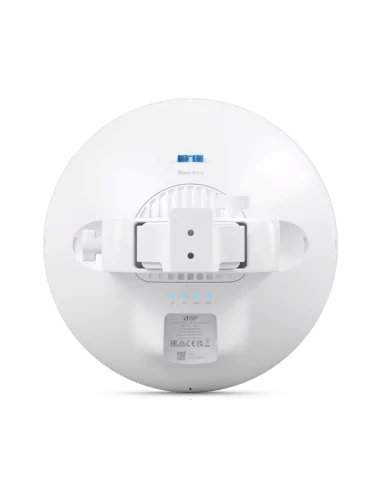

• LED Indicators: Power, Ethernet, GPS, link

• Operating Temperature: -40 to 60°C (-40 to 140°F)

• Operating Humidity: 5 to 95% noncondensing

• Certifications: FCC, IC, CE

🛠️ Software & Management

• Operating Mode: PtMP station

• Ubiquiti Features: Wave AI, discovery protocol

• Services: UISP, ping watchdog, NTP client, SNMP

• Tools: Antenna alignment, discovery utility, ping, trace route, speed test

• Network Modes: Bridge/Router (available in PtMP station mode only)

• Software Management: Bluetooth management for easy setup over UISP app; web UI

• Minimum Software Requirements: Any modern web browser or iOS/Android-based smartphone

📡 Radio Frequency (RF) Specifications

60 GHz Radio (Primary Link)

• Operating Frequency: 57–71 GHz (depends on regulatory region)

• Channel Bandwidth: 2160, 1080 MHz

• Operating Channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz (depends on regulatory region)

• Modulation: 16QAM, QPSK

• Antenna Gain: 41 dBi

• Beamwidth (3 dB): 1°

• Beamwidth (6 dB): 1.4°

5 GHz Backup Radio

• Wi-Fi Standard: 802.11ax (Wi-Fi 6)

• Operating Frequency: 5150–5875 MHz (depends on regulatory region)

• Channel Bandwidth: 20, 40, 80 MHz

• Modulation: BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM (5/6)

• Antenna Gain: 19 dBi

• Polarization: Dual-linear

• Cross-polarization Isolation: 20 dB

• Beamwidth (3 dB): 14–17° (both azimuth and elevation)
