Ubiquiti UniFi Protect 1SFP+ GbE 7 Bay NVR Pro

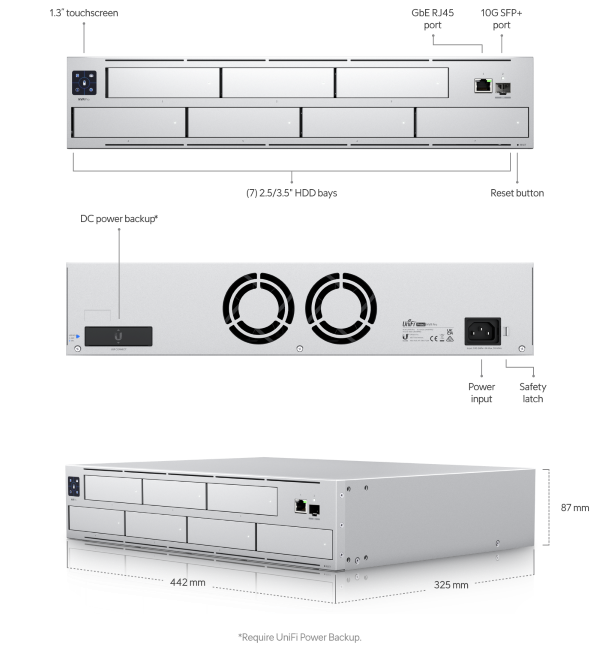

The Ubiquiti UniFi Protect 1SFP+ GbE 7 Bay NVR Pro is a high-performance network video recorder designed for enterprise-grade surveillance systems. It features a 2U rackmountable chassis with seven 2.5″/3.5″ HDD bays, supporting RAID 1, 5, or 10 configurations for reliable data redundancy. Equipped with a 1.3-inch touchscreen for video event previewing, the NVR Pro offers seamless integration with the UniFi Protect application. Connectivity options include a 10G SFP+ port and a Gigabit Ethernet RJ45 port, ensuring fast data transfer rates. The device also supports Bluetooth-powered setup via the UniFi Protect mobile app and can be connected to the UniFi SmartPower Redundant Power System (USP-RPS) for enhanced power supply failover protection.

🧠 Hardware & Physical

• Processor: Quad-Core ARM Cortex-A57 at 1.7 GHz

• Memory: 4 GB DDR4 RAM

• On-Board Flash Storage: 32 GB SPI NOR + 8 GB USB Flash

• Networking Ports:

  • (1) 10/100/1000 Mbps RJ45 Ethernet

  • (1) 1/10 Gbps SFP+ Ethernet

• Bluetooth: v4.1

• Power Input:

  • (1) Universal AC input, 100–240V AC, 3A Max, 50/60 Hz

  • (1) USP-RPS DC input, 11.5V DC, 13.91A

• Power Supply: AC/DC, internal, 200W

• Max Power Consumption: 160W

• Max Power Budget for Drives: 135W

• ESD/EMP Protection:

  • Air: ±12kV

  • Contact: ±8kV

• Dimensions: 442 x 325 x 87 mm (17.4 x 12.8 x 3.4″)

• Weight:

  • Without Rackmount Brackets: 9.2 kg (20.3 lb)

  • With Rackmount Brackets: 9.5 kg (20.8 lb)

• Enclosure Material: SGCC Steel

• Mount Material: SGCC Steel

• Operating Temperature: -5°C to 40°C (23°F to 104°F)

• Operating Humidity: 5% to 95% non-condensing

• Certifications: FCC, CE, IC

📷 Storage & Capacity

• Drive Bays: 7 x 2.5″/3.5″ HDD/SSD

• RAID Configurations: Automated RAID 1, 5, or 10

• Supported Cameras:

  • 70 HD (1080p)

  • 35 2K (1440p)

  • 24 4K (2160p)

📱 Management & Display

• Management Interface: Ethernet In-Band Management

• Display: 1.3″ Touchscreen with Video Event Previewing

• Setup: Bluetooth-powered setup via UniFi Protect mobile app

🔄 Redundancy & Power

• USP-RPS Support: Yes (sold separately)

• RAID Data Protection: Yes

• Power Redundancy: Yes
