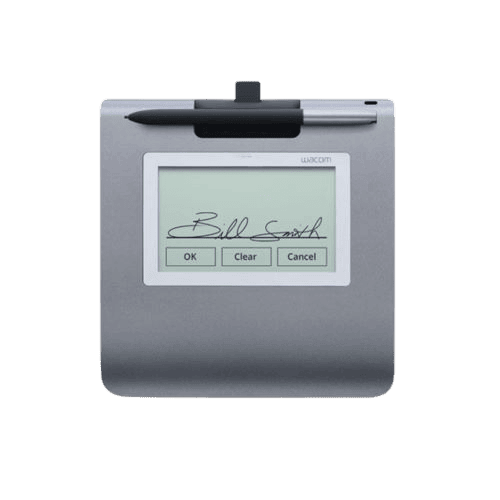

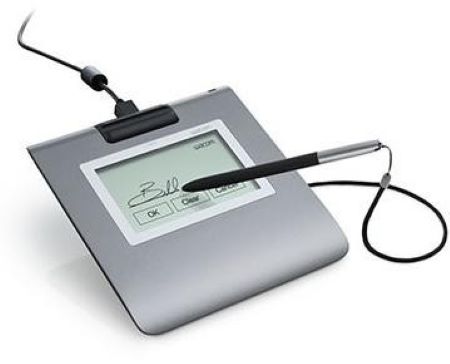

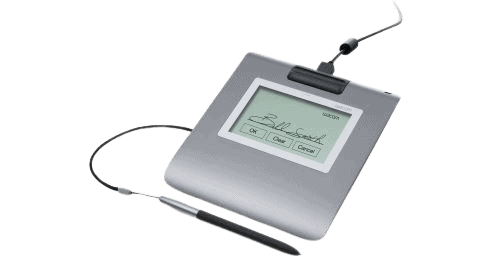

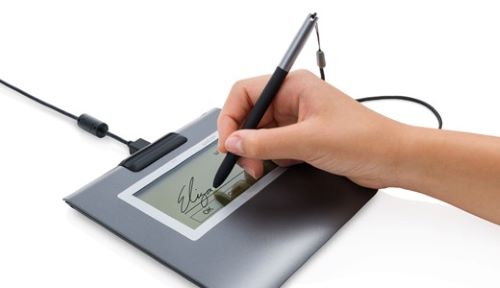

Wacom LCD Signature Pad STU-430

The Wacom LCD Signature Pad is a compact, high-quality LCD signature pad designed for secure electronic signature capture. Featuring a 4.5″ x 2.8″ monochrome display, it offers 1024 levels of pressure sensitivity for accurate and natural signatures. The pen is battery-free, and the device connects via USB, making it easy to integrate into systems for retail, banking, healthcare, and more. With a durable, scratch-resistant surface and secure signature encryption, the STU-430 is ideal for environments where security and reliability are essential.

Wacom STU-430 Signature Pad Specifications:

Display:

• Type: LCD screen with Reflective Technology (no backlight)
• Active Area (Display Size):
  • 4.5 inches (width) x 2.8 inches (height)
  • 115.5 mm (W) x 71.2 mm (H)
• Resolution:
  • 400 x 600 pixels
• Color:
  • Monochrome (Black and White)
• Brightness:
  • Non-backlit display for enhanced readability in bright environments
• Display Surface:
  • Matte finish, designed to reduce glare and enhance signature clarity.

• Stylus (Pen):

  • Pen Type: Wacom electromagnetic resonance (EMR) pen
  • Pressure Sensitivity:
    • 1024 levels of pressure sensitivity
  • Pen Features:
    • Battery-free, no need for charging or batteries
    • Ergonomically designed for comfortable signature signing
  • Stylus Tip:
    • Interchangeable tips for customization (e.g., soft, medium, or hard tips)
  • Stylus Accuracy:
    • High precision and accuracy for capturing detailed signatures

  • Connectivity:

    • Interface:
      • USB 2.0 (cable provided)
    • USB Cable:
      • Typically around 1.8 meters (6 feet) in length
    • Driver Support:
      • Compatible with Windows (Windows 7, 8, 10, 11) and macOS (macOS 10.15 or later)
    • Software:
      • Includes SDK (Software Development Kit) for easy integration into custom applications and systems
      • Supports Wacom’s proprietary signature capture software, as well as third-party solutions

    • Security Features:

      • Signature Data Encryption:
        • Captures and securely transmits signature data for compliance with digital signature laws
      • Pen Stroke Data:
        • Tracks pen pressure, speed, and angle for additional authenticity verification
      • Tamper-Proof:
        • Captured signatures can be encrypted and stored securely, ensuring data integrity


          . Power:

          • Power Source:
            • Powered via the USB connection (no external power adapter required)
          • Power Consumption:
            • Low power usage, powered when connected via USB

          • Durability:

            • Surface:
              • Scratch-resistant surface, designed for frequent use and durability
            • Operating Temperature:
              • 0°C to 40°C (32°F to 104°F)
            • Storage Temperature:
              • -20°C to 60°C (-4°F to 140°F)
            • Humidity Range:
              • 30% to 90% relative humidity (non-condensing)

            • User Interface:

              • Buttons:
                • Some versions include customizable buttons on the side of the device (e.g., clear or accept signature), though the STU-430 primarily focuses on its signature area for simplicity.
              • Touch Input:
                • Supports only pen input, with no touch functionality, to ensure signature accuracy and prevent accidental inputs

                • Software & Compatibility:

                  • Operating Systems Supported:
                    • Windows: Windows 7, 8, 10, 11
                    • macOS: macOS 10.15 (Catalina) or later
                  • Wacom Signature Software:
                    • Comes with Wacom’s signature capture software for easy deployment in commercial environments.
                  • SDK/Integration:
                    • Software Development Kit (SDK) available for custom application integration (e.g., custom forms, POS systems, document signing platforms).

• Support:

  • Support:
    • 24/7 customer support via Wacom’s website, including technical assistance and troubleshooting
  • Documentation:
    • Comprehensive user manual and installation guide included

• Applications and Use Cases:

• The Wacom STU-430 is ideal for a variety of use cases, including:
  • Retail: Signature capture for deliveries, purchases, and credit card transactions
  • Banking: Secure signing of contracts, loan agreements, and other financial documents
  • Healthcare: Patient consent forms, medical records, and insurance forms
  • Government and Legal: Document signing and contract management

• Benefits of the Wacom STU-430:

  • Compact Design: Small footprint, making it suitable for environments with limited space.
  • High-Quality Signature Capture: Accurate, natural signature input with pressure sensitivity.
  • Ease of Integration: Compatible with many third-party software systems, allowing for easy adoption in existing workflows.
  • Security: Ensures the integrity and confidentiality of captured signatures through encryption.
