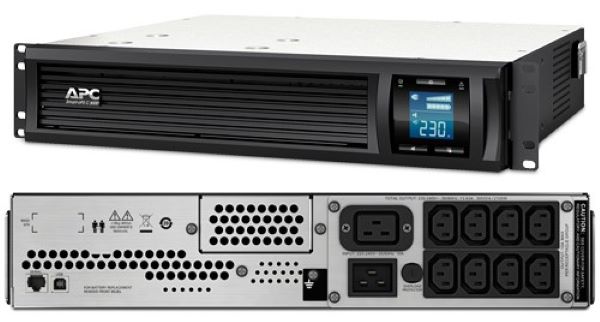

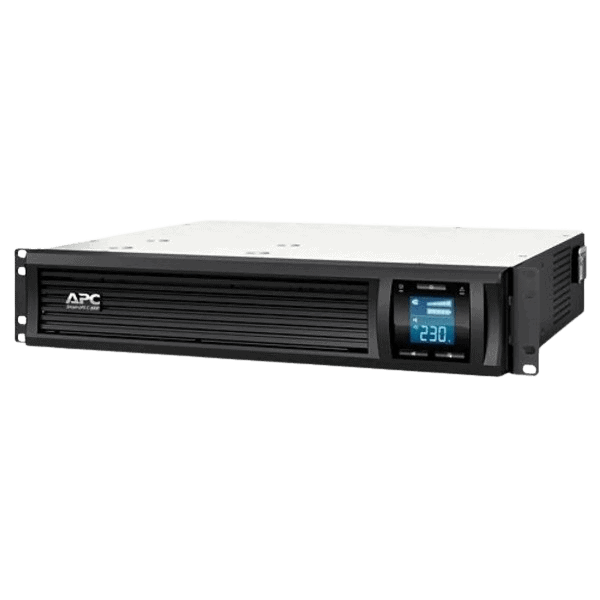

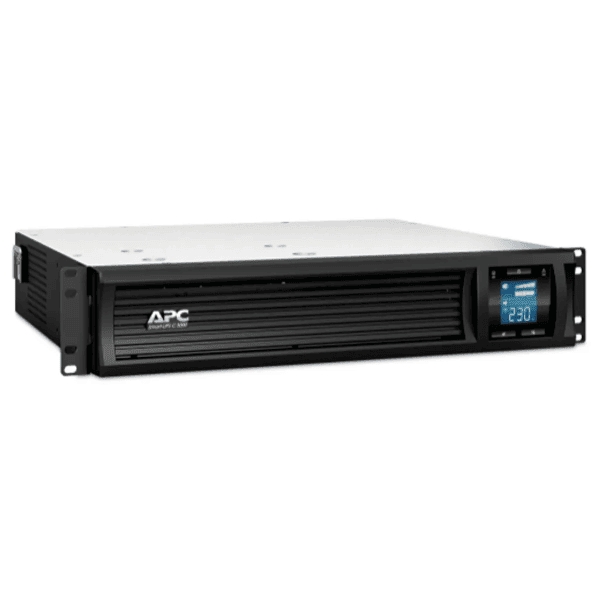

APC Smart-UPS C 3000VA 2.1kW 2U Rack Mount LCD 230V

The APC Smart-UPS C 3000VA (2.1kW) is a reliable line-interactive uninterruptible power supply designed for critical IT infrastructure. With a 2U rackmount form factor, it features an LCD for real-time monitoring, eight IEC outlets, and automatic voltage regulation (AVR) to correct power fluctuations. This UPS offers user-replaceable batteries and a typical recharge time of 3-4 hours, ensuring continuous operation and protection for servers and networking equipment in data centers and enterprise environments.

Specifications:

• Model: APC Smart-UPS C 3000VA (2.1kW)
• Type: Line-Interactive UPS

Electrical Specifications:

• VA Rating: 3000VA
• Power Output: 2100W
• Input Voltage: 230V
• Input Frequency: 50/60 Hz (auto-sensing)
• Output Voltage: 230V
• Output Frequency: 50/60 Hz (synchronized with the input)

Battery Specifications:

• Battery Type: Sealed lead-acid, maintenance-free
• Number of Batteries: 2 (user-replaceable)
• Typical Recharge Time: 3-4 hours (to 90% capacity)
• Runtime: Varies based on load; typically provides several minutes of backup for critical systems.

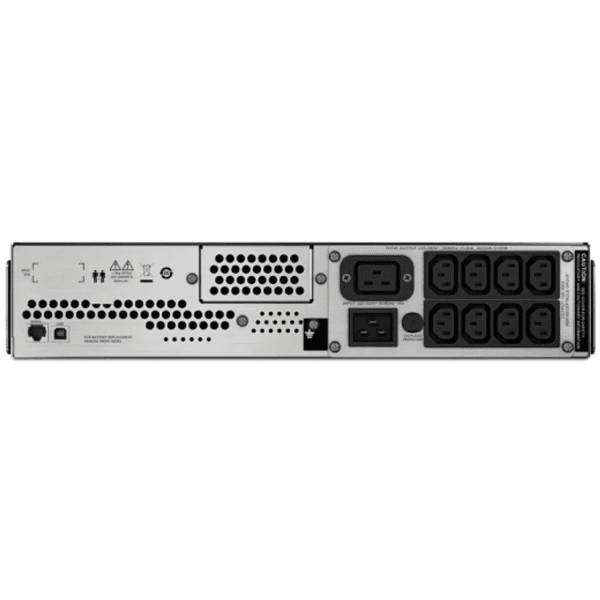

Connections:

• Input Connection: IEC 320 C14
• Output Connections:
  • 8 x IEC 320 C13 outlets (with battery backup and surge protection)
  • 1 x IEC 320 C19 outlet (for larger loads)

Management and Monitoring:

• Display: LCD for real-time information on status, load, battery health, and alarms
• Communication Ports:
  • USB port for monitoring and management
  • RS-232 port for additional connectivity
  • Optional SNMP/WEB card for network management

Physical Specifications:

• Form Factor: Rackmount (2U)
• Weight: Approximately 29 kg
• Dimensions (H x W x D): 89 x 432 x 600 mm

Environmental Specifications:

• Operating Temperature: 0 to 40°C
• Operating Humidity: 0 to 95% non-condensing
• Altitude: Up to 3000 m without derating

Safety and Certifications:

• Certifications: CE, RoHS, and other regional certifications may apply.

Additional Features:

• Line-Interactive Technology: Provides automatic voltage regulation (AVR) to correct minor power fluctuations without using the battery.
• Hot-Swap Batteries: Allows for battery replacement without turning off the UPS.
• Energy Efficient: Designed for lower energy consumption and reduced heat generation.

Ideal Use Cases:

• Suitable for servers, networking equipment, and other critical electronics in data centers and enterprise environments.
