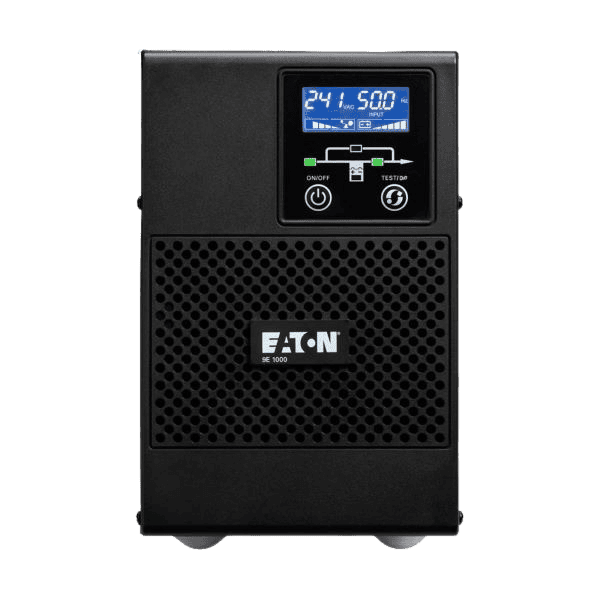

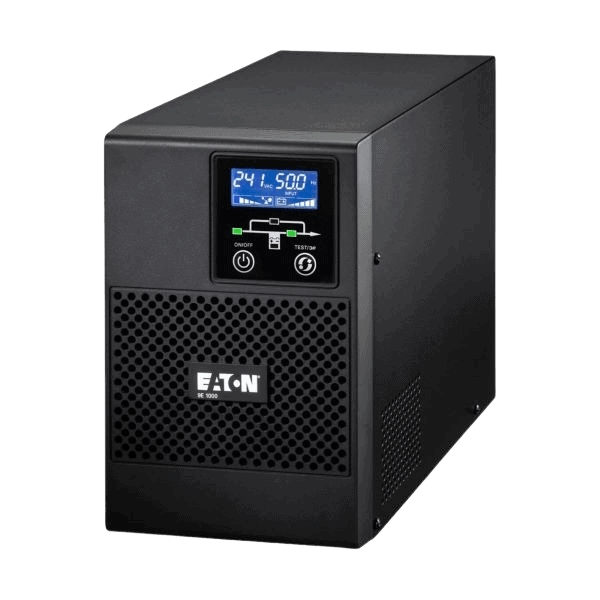

Eaton 9E 1000I On-Line Tower UPS

The Eaton 9E 1000I On-Line Tower UPS is a robust uninterruptible power supply designed for reliable protection of critical IT equipment. With a capacity of 1000VA (800W), it features double conversion technology for continuous, clean power. The UPS includes six IEC outlets, an LCD display for real-time monitoring, and user-replaceable batteries with a typical recharge time of 4 hours. Ideal for small to medium-sized businesses, it ensures stable operation during power disruptions.

Eaton UPS Specifications:

• Model: Eaton 9E 1000I
• Type: On-Line UPS (Double Conversion)

Electrical Specifications:

• VA Rating: 1000VA
• Power Output: 800W
• Input Voltage: 220-240V
• Input Frequency: 50/60 Hz (auto-sensing)
• Output Voltage: 220-240V
• Output Frequency: 50/60 Hz (synchronized with the input)

Battery Specifications:

• Battery Type: Sealed lead-acid, maintenance-free
• Number of Batteries: Typically 2 (user-replaceable)
• Typical Recharge Time: 4 hours (to 90% capacity)
• Runtime: Varies based on load; approximately 15-30 minutes for typical loads.

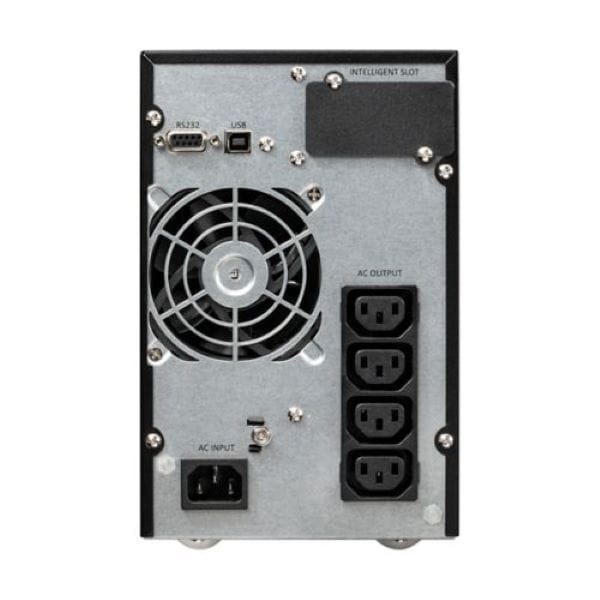

Connections:

• Input Connection: IEC 320 C14
• Output Connections:
  • 6 x IEC 320 C13 outlets (battery backup and surge protection)
  • 1 x IEC 320 C19 outlet (for larger loads)

Management and Monitoring:

• Display: LCD for real-time information on status, load, and battery
• Communication Ports:
  • USB port for monitoring and management

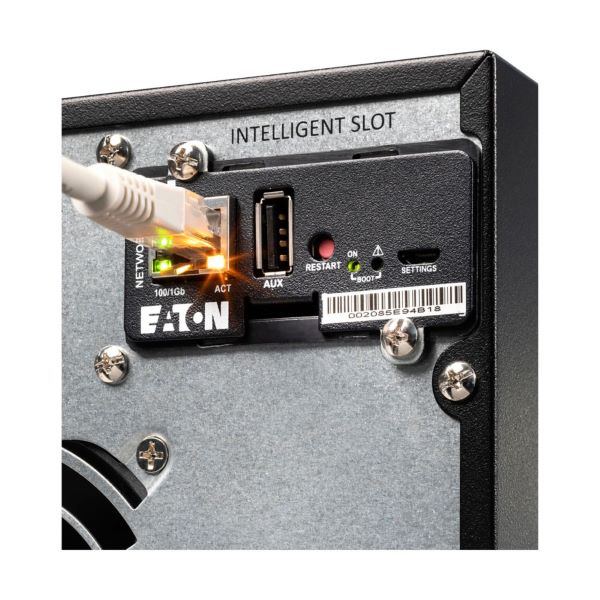

  • Optional SNMP/WEB card for network management

Physical Specifications:

• Form Factor: Tower
• Weight: Approximately 14 kg
• Dimensions (H x W x D): 360 x 150 x 400 mm (may vary slightly)

Environmental Specifications:

• Operating Temperature: 0 to 40°C
• Operating Humidity: 0 to 95% non-condensing
• Altitude: Up to 3000 m without derating

Safety and Certifications:

• Certifications: CE, IEC, RoHS compliant, and other regional certifications as applicable.

Additional Features:

• Double Conversion Technology: Provides continuous, clean power regardless of input quality.
• Hot-Swap Batteries: Batteries can be replaced without turning off the UPS.
• Energy Efficient: Designed for lower energy consumption and reduced heat generation.

Ideal Use Cases:

• Suitable for small to medium-sized businesses, server rooms, and critical IT equipment that require reliable power protection.
