APC SMART-UPS X 1500VA 8AC RACK TOWER LCD 23

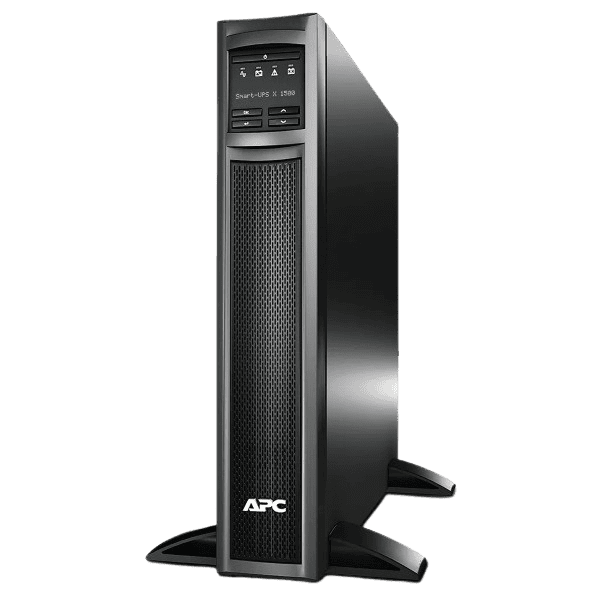

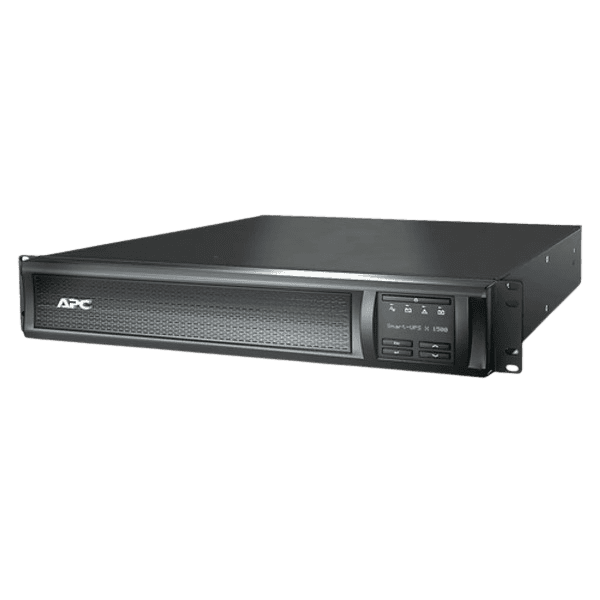

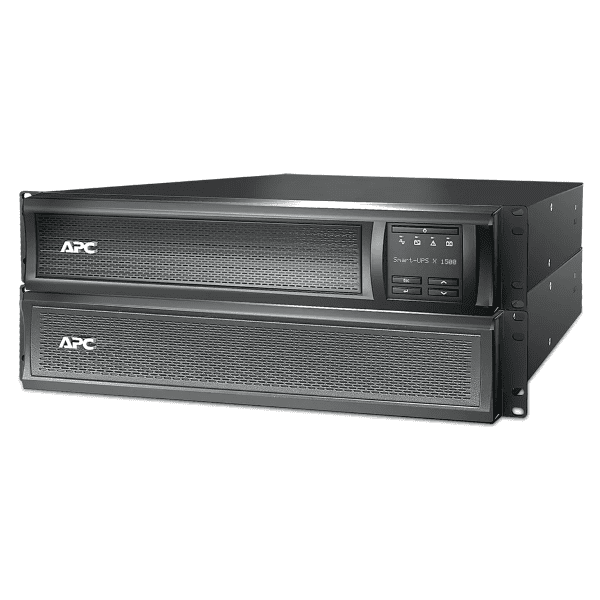

The APC Smart-UPS 1.5kVA (1200W) is a reliable line-interactive uninterruptible power supply designed for home and small office environments. With eight IEC outlets, it provides battery backup and surge protection for critical devices. Featuring an LED display for status monitoring and automatic voltage regulation, this UPS ensures stable power during outages and fluctuations. It has a typical recharge time of 4-6 hours and is ideal for protecting computers, networking equipment, and small servers.

APC Smart-UPS 1.5kVA Specifications:

• Model: APC Smart-UPS 1.5kVA
• Type: Line-Interactive UPS

Electrical Specifications:

• VA Rating: 1500VA
• Power Output: 1200W
• Input Voltage: 230V
• Input Frequency: 50/60 Hz (auto-sensing)
• Output Voltage: 230V
• Output Frequency: 50/60 Hz (synchronized with input)

Battery Specifications:

• Battery Type: Sealed lead-acid, maintenance-free
• Number of Batteries: Typically 2 (user-replaceable)
• Typical Recharge Time: 4-6 hours (to 90% capacity)
• Runtime: Varies based on load; typically provides several minutes to tens of minutes of backup depending on connected equipment.

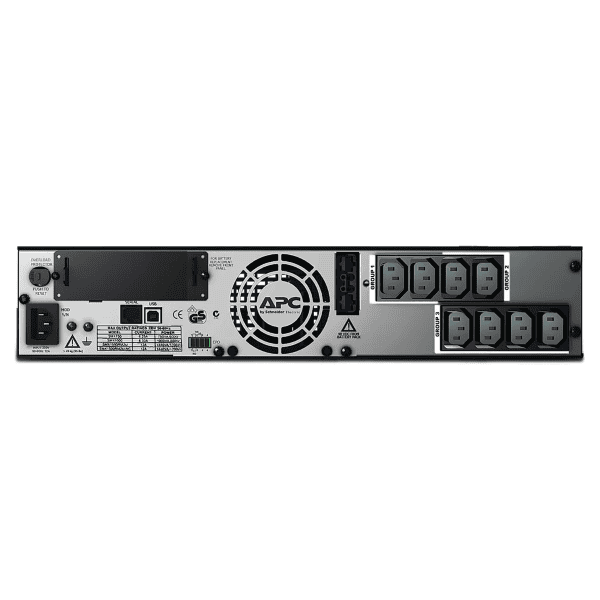

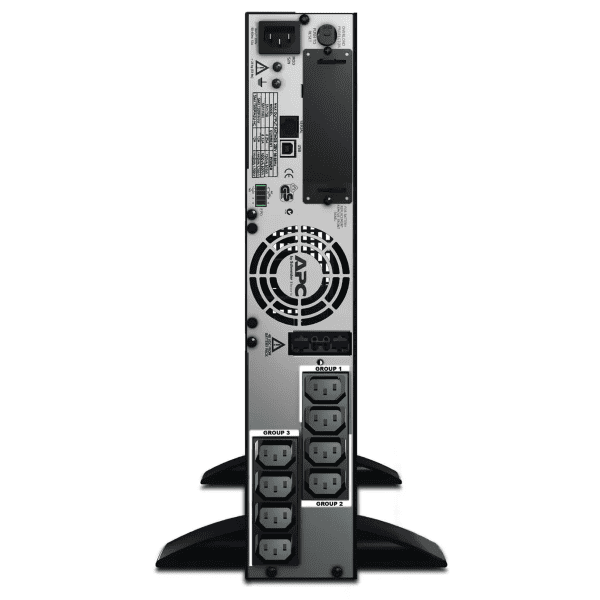

Connections:

• Input Connection: IEC 320 C14
• Output Connections:
  • 8 x IEC 320 C13 outlets (with battery backup and surge protection)
  • Hardwired output options may be available in some models.

Management and Monitoring:

• Display: LED indicators for status and alerts
• Communication Ports:
  • USB port for monitoring and management
  • RS-232 port for additional connectivity
  • Optional SNMP/WEB card for network management

Physical Specifications:

• Form Factor: Tower
• Weight: Approximately 12 kg
• Dimensions (H x W x D): 250 x 150 x 400 mm (may vary slightly)

Environmental Specifications:

• Operating Temperature: 0 to 40°C
• Operating Humidity: 0 to 95% non-condensing
• Altitude: Up to 3000 m without derating

Safety and Certifications:

• Certifications: CE, RoHS, and other regional certifications may apply.

Additional Features:

• Line-Interactive Technology: Automatically adjusts voltage fluctuations without switching to battery, improving efficiency.
• Surge Protection: Protects connected equipment from power surges and spikes.
• Energy Efficient: Designed to minimize energy consumption and heat generation.

Ideal Use Cases:

• Suitable for desktop computers, network devices, and small servers in home and office environments requiring reliable power protection.
