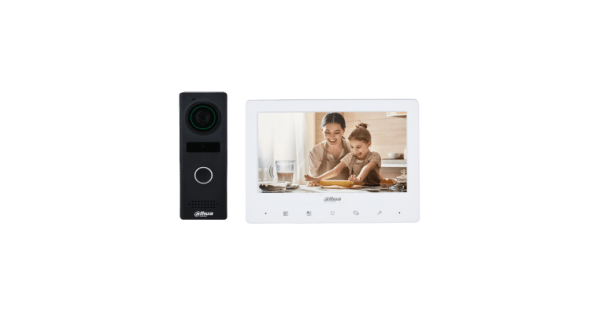

Dahua KTA02M 7-inch Video Intercom Kit

Indoor Monitor (Dahua KTA02M):

• Display: 7.0″ TFT screen, resolution 1024 × 600
• Functionality:
  • Video intercom: unlock, voice call, video call
  • Volume adjustment
  • Doorway monitoring
• System Capacity:
  • 2 door stations
  • 3 indoor monitors
• Communication Method: Analog
• Casing Material: PC + ABS
• Power Supply: DC 12V/1A
• Power Consumption: ≤ 2W (standby), ≤ 5W (working)
• Operating Temperature: -10°C to +55°C (14°F to 131°F)
• Operating Humidity: 10% RH to 95% RH
• Installation: Surface mount
• Dimensions: 133.90 mm × 182.70 mm × 17.70 mm (5.27″ × 7.19″ × 0.70″)
• Weight: Net weight: 0.25 kg (0.55 lb), Gross weight: 0.48 kg (1.05 lb)
• Indicator Light: Green (Power on)
• Certifications: CE/FCC
• Additional Features: Multiple bell sounds, digital wide dynamic range (DWDR), touch keypad

Outdoor Door Station (Dahua DHI-VTO1000JM):

• Camera: 1/4″ 1.3 MP CMOS
• Field of View: Horizontal: 70°, Vertical: 40°
• WDR: DWDR (Digital Wide Dynamic Range)
• Illuminator Type: Auto IR for night vision
• Audio Input: 1 channel microphone, pickup distance: 0.5 m
• Audio Output: 1 channel to speaker
• Unlock Mode: Remote unlock
• Casing Material: ADC12
• Power Supply: Powered by indoor monitor
• Power Consumption: ≤ 1W (standby), ≤ 3W (working)
• Operating Temperature: -30°C to +60°C (-22°F to +140°F)
• Operating Humidity: 10% RH to 95% RH
• Protection Grade: IP66 (rain cover included)
• Installation: Surface mount
• Dimensions: 131.45 mm × 46.00 mm × 33.80 mm (5.18″ × 1.81″ × 1.33″)
• Weight: Net weight: 0.18 kg (0.40 lb), Gross weight: 0.40 kg (0.84 lb)
• Certifications: CE/FCC

Key Features:

• Touch keypad on the indoor monitor
• Multiple bell sounds for user customization
• IP66 weatherproof rating for the outdoor unit
• Rain cover included for the door station
• Digital Wide Dynamic Range (DWDR) for better visibility in various lighting conditions.

The Dahua KTA02M 7-inch Video Intercom Kit is suitable for a variety of applications, including:

1. Residential Buildings: Ideal for apartment complexes, gated communities, or single-family homes, providing secure entry management and communication with visitors.
2. Office Buildings: Used in commercial office settings to allow employees to control access to the building and communicate with visitors or delivery personnel remotely.
3. Residential Gated Communities: Ensures secure access and communication at entrance gates for residents and visitors.
4. Hotels & Guesthouses: Enables efficient visitor management with video and audio communication, as well as remote unlocking for guest access.
5. Schools & Universities: Used for monitoring entry points, allowing students and staff to securely interact with visitors and access buildings.
6. Healthcare Facilities: Suitable for hospitals, clinics, and other healthcare environments, offering secure access control to specific areas or rooms.
7. Retail & Commercial Spaces: Can be installed in retail stores, malls, or other public spaces for secure entry management and visitor communication.
8. Industrial & Warehouse Sites: Used for controlling access to secure areas within industrial or warehouse environments, enhancing security and communication with remote entry points.
