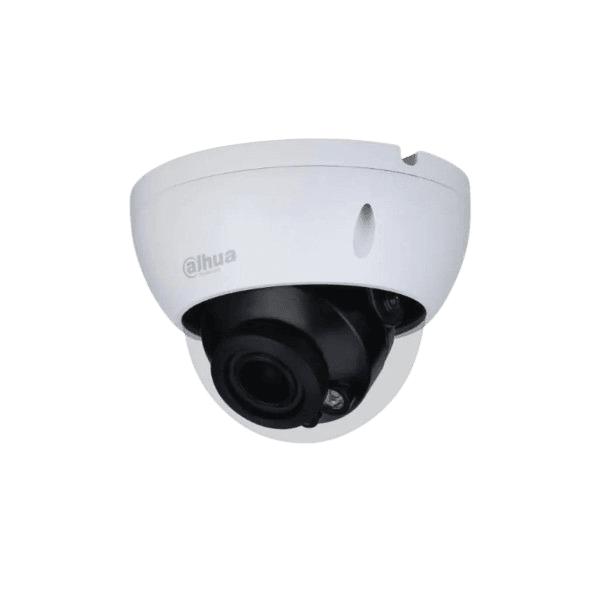

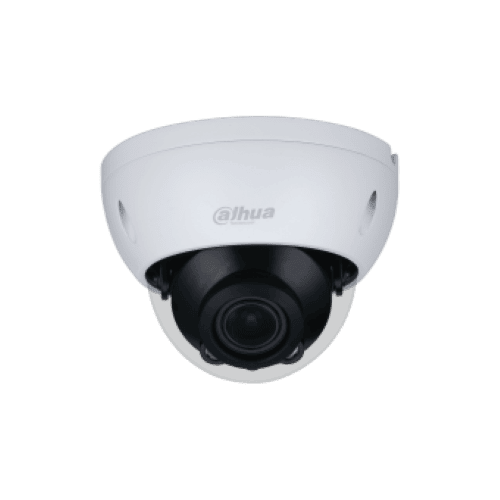

Dahua Lite Series Vari-Focal Starlight Analog Dome Camera

The Dahua Lite Series HDBW1500R is a 5MP motorized vari-focal dome camera designed for versatile surveillance. Featuring a 2.7-12mm lens, it offers excellent image quality with Starlight technology for low-light performance and 120 dB WDR. With built-in IR illumination up to 30 meters, it’s ideal for both indoor and outdoor use. Its IP67 rating ensures durability in various weather conditions, making it perfect for applications in retail, schools, and parking lots.

General Specifications

• Model: HDBW1500R
• Type: Analog Dome Camera

Image Sensor

• Sensor Type: 1/2.7″ CMOS
• Effective Pixels: 5MP (2560 x 1944)

Lens

• Lens Type: Motorized Vari-Focal
• Focal Length: 2.7 mm to 12 mm
• Aperture: F1.3
• Field of View:
  • Horizontal: 103.7° (at 2.7 mm) to 28.5° (at 12 mm)
  • Vertical: 55.1° (at 2.7 mm) to 15.5° (at 12 mm)
  • Diagonal: 122.3° (at 2.7 mm) to 33.4° (at 12 mm)

Day/Night Functionality

• Starlight Technology: Enhanced low-light performance
• Minimum Illumination:
  • Color: 0.005 Lux
  • B/W: 0 Lux (with IR on)

IR Illumination

• IR LEDs: 6 pcs
• IR Distance: Up to 30 meters (98 ft)
• Smart IR: Yes

Video

• Video Output: HDCVI (High Definition Composite Video Interface)
• Max Frame Rate: Up to 30 fps at 5MP
• Video Compression: H.265/H.264

Features

• WDR (Wide Dynamic Range): 120 dB
• Noise Reduction: 3DNR
• Backlight Compensation: BLC, HLC
• Privacy Masking: Yes (up to 4 zones)

Connectivity

• Video Output: 1-channel HDCVI output
• Power Supply: DC 12V ± 30% / PoC (Power over Coax)

Physical Specifications

• Housing: IP67 rated (weatherproof)
• Operating Temperature: -40°C to +60°C (-40°F to +140°F)
• Dimensions: 119 mm x 88 mm (Diameter x Height)
• Weight: Approximately 0.65 kg (1.43 lbs)

Certification

• Certifications: CE, FCC, and RoHS compliant

Applications

Ideal for various surveillance environments, including:

• Retail stores
• Parking lots
• Schools
• Office buildings
• Outdoor areas
