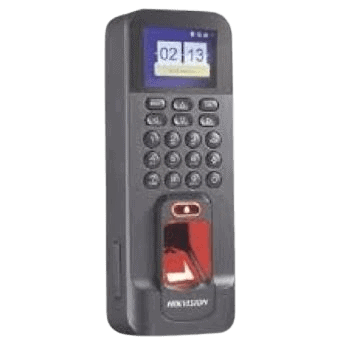

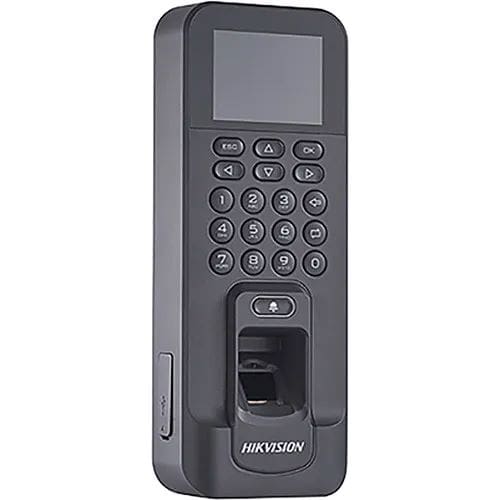

Hikvision Pro Series Fingerprint Terminal

The Hikvision DS-K1T804AMF is a reliable and feature-rich fingerprint terminal that offers fast, secure access control for a variety of environments. With multiple authentication methods, anti-spoofing capabilities, large capacity for users and logs, and seamless integration with other Hikvision products, it provides a comprehensive solution for access management in both commercial and residential applications. The compact 2.4-inch display ensures user-friendly operation, while the anti-tamper and security features enhance the system’s reliability and safety.

General Specifications:

• Display:

  • 2.4-inch TFT color screen for easy interaction.
  • Resolution: 320 x 240 pixels.

• Fingerprint Authentication:

  • Fingerprint Capacity: 3,000 fingerprints.
  • Fingerprint Matching Speed: ≤ 0.5 seconds.
  • Fingerprint Sensor: Optical sensor with high security and anti-fake features.

• Authentication Methods:

  • Fingerprint recognition.
  • RFID card support (13.56 MHz, Mifare or IC cards).
  • PIN code for added flexibility and security.
  • Multi-factor authentication: Combine fingerprint + card or fingerprint + PIN for increased security.

Connectivity:

• TCP/IP for network communication, allowing integration with larger access control systems.
• Wiegand input/output for connecting with external devices such as card readers or other access control systems.
• RS-485 for integration with access control panels.
• Relay Output: For unlocking doors or triggering other devices.

Power Supply:

• DC 12V input.
• Power consumption: ≤ 3W.
• POE (Power over Ethernet) supported for easy installation and wiring.

Capacity:

• User Capacity: Supports up to 3,000 users for fingerprint recognition.
• Event Logs: Stores up to 50,000 event logs for tracking access activity.

Physical Specifications:

• Dimensions: 130 x 105 x 27 mm.
• Weight: Approximately 0.4 kg.

Environmental Conditions:

• Operating Temperature: -10°C to +60°C (14°F to 140°F).
• Operating Humidity: 10% to 90% (non-condensing).

Security Features:

• Anti-spoofing technology to prevent fake fingerprints.
• Tamper detection alerts when the device is tampered with.
• Data Encryption: Secure communication via HTTPS.
• Anti-passback: Ensures that users cannot re-enter through the same door multiple times without proper authentication.

Software Integration:

• Compatible with iVMS software for centralized management and monitoring.
• Supports integration with Hikvision access control panels and door stations.
• SDK available for integration with third-party systems and applications.

Key Features:

• 2.4-inch Display for easy navigation and user interface.
• Fast Fingerprint Recognition: ≤ 0.5 seconds.
• Multiple Authentication Modes: Fingerprint, RFID card, and PIN.
• Large User Capacity: Up to 3,000 users.
• Event Logging: 50,000 logs for detailed access records.
• Secure Communication: Data encryption and HTTPS support.
• Tamper Detection & Anti-spoofing technology for enhanced security.

Applications:

• Office and Business environments with medium to high security needs.
• Industrial facilities, corporate buildings, and secure access areas.
• Residential complexes and apartment buildings requiring reliable, scalable access control.
