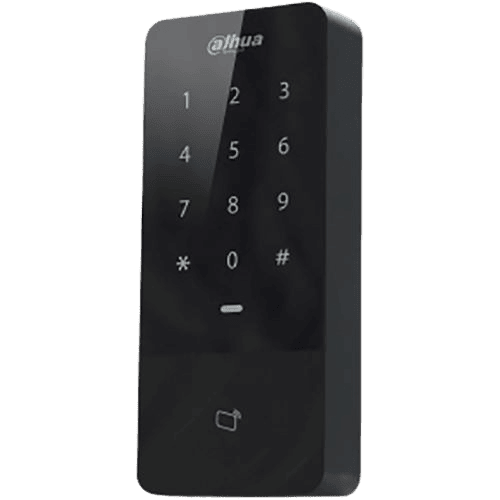

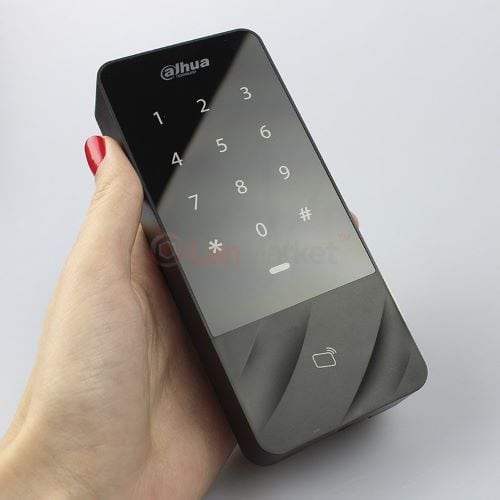

Dahua ASI1201E Water-proof RFID Standalone Terminal

General Features:

• Main Processor: 32-bit
• Memory: 16 MB
• Input Ports:
  • Door Sensor x 1
  • Exit Button x 1
• Output Ports:
  • Relay x 1 (for door lock)
• Reader Interface: 1 (Wiegand or RS-485)

Card Reading:

• Card Types Supported: IC card (default), ID EM card (optional for “-D” models)
• Reading Frequency:
  • 13.56 MHz (Mifare)
  • 125 KHz (EM)
• Read Range: 3-6 cm (max)
• Response Time: < 0.1s

Capacity:

• Cardholders: 30,000
• Event Logs: 150,000

Functions:

• Authentication Methods: Card, Password, Combination (Card + Password)
• User Management Types: General, VIP, Guest, Patrol, Blocklist, Duress
• Alarms:
  • Door timeout alarm
  • Intrusion alarm
  • Duress alarm
  • Tamper alarm
• Time & Holiday Periods:
  • Supports 128 time periods
  • 128 holiday periods
  • 128 schedule groups

Interfaces:

• PC Communication: RJ45 (10/100 Mbps)
• Reader Interface: Wiegand or RS-485

General Features:

• Real-Time Clock (RTC): Yes
• Voice Prompt: No
• Beep Tone: Buzzer
• Keypad: Sensitive touch keypad with blue backlight
• Power Supply: 9-15V DC, 200mA
• Operating Environment:
  • Temperature: -30°C to +60°C
  • Humidity: ≤ 95% RH
• Device Dimensions: 62 x 23 x 142 mm

Additional Features:

• Waterproof Design: Yes
• Anti-passback: Yes
• Multi-card Access: Yes
• Watchdog Function: Ensures device stability and prevents halting

Ideal for various access control applications, including:

1. Outdoor Security Installations: Its waterproof design makes it suitable for outdoor environments, such as building entrances, gates, or perimeters.
2. Industrial & Commercial Buildings: Perfect for managing employee or visitor access in large facilities, factories, or office complexes.
3. Government & High-Security Areas: Useful in secure locations that require advanced authentication features, such as military bases, embassies, or data centers.
4. Residential Complexes: For secure access to gated communities or apartment buildings, offering flexibility in managing both residents and guests.
5. Parking Garages & Entrance Control: Suitable for controlling access to parking areas with card-based entry systems.
6. Educational Institutions: Provides secure entry to campuses, dormitories, or classrooms, supporting both staff and student access.
7. Public Access Areas: Can be used for controlling access to public or restricted areas in libraries, hospitals, or public transport stations.
8. Retail & Event Venues: Ideal for controlling access to high-traffic areas like stores or event venues, where quick and secure identification is needed.

Overall, the Dahua ASI1201E is versatile and designed for any environment where secure, efficient access control is required.
