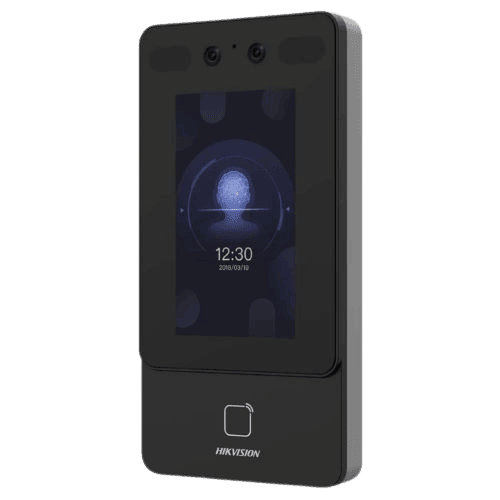

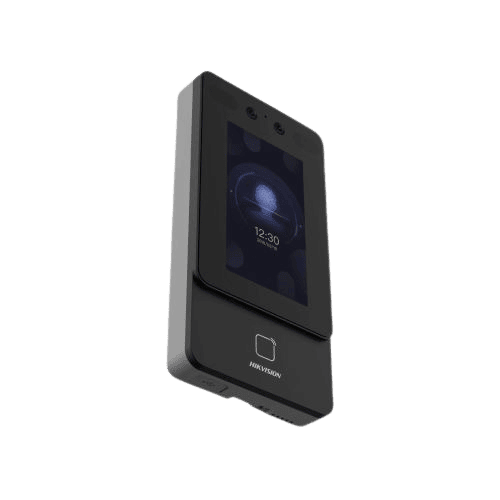

Hikvision Face Recognition Access Control Terminal

The Hikvision DS-K1T342MWX-E1 is a versatile and secure face recognition access control terminal designed for a wide range of applications. With fast recognition speed, multiple authentication options, anti-spoofing technology, and the ability to integrate with other Hikvision security systems,it offers a high level of convenience and security for businesses and organizations. Its compact design and scalable features make it an ideal choice for both small and large deployments.

General Specifications:

• Display:

  • 4.3-inch color TFT touch screen.
  • Resolution: 480 x 272 pixels.

• Face Recognition:

  • Recognition Capacity:
    • Supports up to 3,000 face templates.
    • Supports up to 50,000 event logs.
  • Face Recognition Distance: 0.3m to 1.5m.
  • Face Recognition Time: < 1 second.
  • Face Recognition Angle: 20° – 30°.
  • Anti-spoofing Technology: Detects photo or video spoofing attempts.

• Fingerprint (Optional):

  • Fingerprint Capacity: 1,000 fingerprints.
  • Fingerprint Matching Speed: ≤ 0.5 seconds.

• Card Access:

  • Supports Mifare/IC card (13.56 MHz).
  • Card Capacity: 10,000 cards.

• Authentication Modes:

  • Face recognition.
  • Card (RFID).
  • PIN code (optional).
  • Face + Card, Face + PIN (multi-factor authentication).

Performance and Connectivity:

• CPU: High-performance processing unit.

• Communication:

  • TCP/IP (Ethernet).
  • Wiegand input/output.
  • RS-485 for integration with external access control systems.
  • Alarm input/output (supports door sensor, exit button, etc.).
  • Relay output for door control.

• Power Supply:

  • DC 12V.
  • Power consumption: ≤ 5W.
  • Supports POE (Power over Ethernet) for easy installation.
• Operating System: Embedded Linux.

Video and Audio:

• Camera:

  • 2MP (1920 x 1080 pixels) camera with wide-angle lens.
  • IR Illumination for night operation (up to 2 meters).
  • Wide dynamic range (WDR) for better image clarity under varying lighting conditions.

• Audio:

  • Built-in microphone and speaker for user interaction and feedback.

Software Integration:

• Software Compatibility:
  • Integrates with Hikvision iVMS software for management and monitoring.
  • SDK for third-party software and system integration.
• Access Control Integration:
  • Supports integration with Hikvision’s Access Control Panels (e.g., DS-K2600 series) and other access control systems.

Physical Specifications:

• Mounting Type: Wall-mounted (with optional bracket).

• Dimensions:

  • 186 x 115 x 40 mm.
• Weight: 1.1 kg (approx.).

• Environmental Conditions:

  • Operating Temperature: -10°C to +60°C (14°F to 140°F).
  • Operating Humidity: 10% to 90% (non-condensing).

Security and Encryption:

• Supports encryption for secure data transfer (e.g., HTTPS).
• Secure data storage with backup options.

Other Features:

• Anti-spoofing Technology: Prevents unauthorized access via photos or videos.
• Voice Prompt: Offers audio prompts for user interaction.
• Tamper Detection: Alerts when the device is being tampered with.
• Multi-Authentication: Supports multiple authentication methods (Face, Card, PIN).
• Event Log: Logs up to 50,000 events for tracking and reporting.

Key Features:

• Face Recognition: Fast and secure face recognition with an accuracy rate of < 1 second.
• Compact and Sleek Design: A compact form factor with a 4.3-inch touch screen, ideal for modern access control setups.
• Flexible Authentication: Multiple authentication methods (Face, Card, PIN) to meet different security requirements.
• High Security: Anti-spoofing, encryption, and tamper detection for secure access control.

Applications:

• Enterprise and Office Access Control
• Residential Buildings and Apartments
• Secure Facilities
• Educational Institutions
• Hospitals, Airports, and Other Public Buildings
