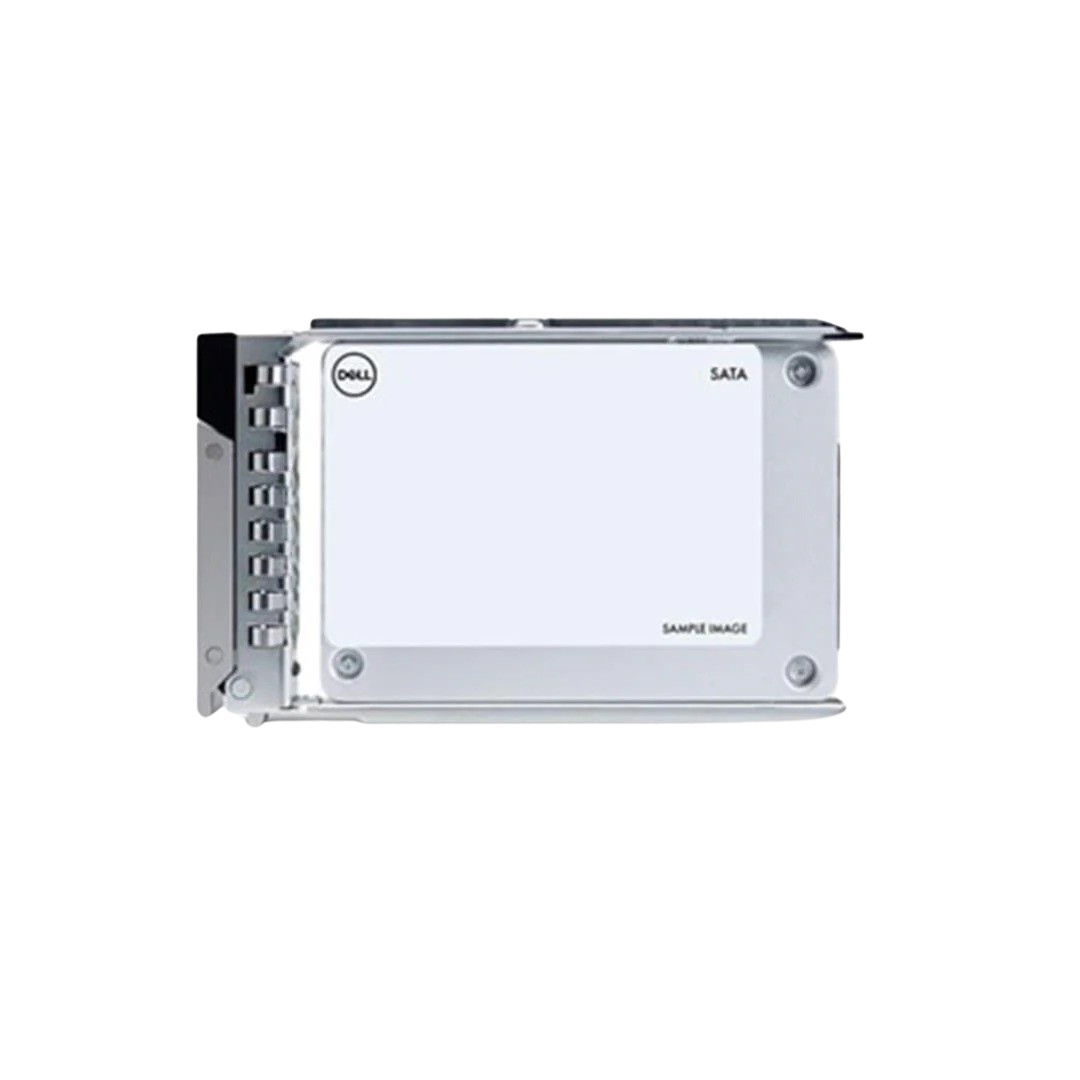

Dell 480GB SSD SATA Read Intensive 6Gbps 2.5″ Hot Plug

The Dell 480GB SSD SATA Read Intensive (345-BDZZ) is a high-performance solid-state drive designed for read-heavy workloads. It features a 480GB capacity, uses SATA III interface (6Gbps), and supports hot swapping for easy installation and maintenance. With sequential read speeds up to 560 MB/s and write speeds up to 470 MB/s, it ensures fast data access. Ideal for Dell PowerEdge servers, this SSD offers enhanced reliability with low power consumption, high endurance (500 TBW), and built-in data protection features. It is suitable for environments requiring fast, reliable storage with minimal downtime.

Specification for the Dell 480GB SSD SATA Read Intensive 6Gbps 512e 2.5in Hot Plug CusKit 345-BDZZ:

---

General Information

• Model Name: Dell 480GB SSD SATA Read Intensive 6Gbps 512e 2.5in Hot Plug CusKit
• Part Number: 345-BDZZ
• Type: Solid State Drive (SSD)
• Capacity: 480 GB
• Form Factor: 2.5-inch
• Interface: SATA III (6Gbps)
• Hot Plug: Supported (can be installed or replaced while the system is running)
• Drive Type: Read Intensive (optimized for workloads where read operations dominate over writes)
• Drive Compatibility: Designed for Dell PowerEdge servers and other systems supporting 2.5-inch SATA drives.

---

Performance Specifications

• Data Transfer Rate:
  • Maximum sequential read: 560 MB/s (typical)
  • Maximum sequential write: 470 MB/s (typical)
• Input/Output Operations Per Second (IOPS):
  • Random read (4K blocks): Up to 80,000 IOPS (typical)
  • Random write (4K blocks): Up to 30,000 IOPS (typical)
• Latency: Low latency due to solid-state technology.

---

Physical & Electrical Characteristics

• Form Factor:
  • 2.5-inch, Height: 7mm (standard for 2.5-inch drives)
• Interface: SATA 3.0 (6Gbps)
• Connector Type: 7-pin SATA data connector, 15-pin SATA power connector
• Drive Type: MLC NAND Flash-based storage
• Power Consumption:
  • Active: 3.5W
  • Idle: 0.3W
  • Low Power: Optimized for energy efficiency
• Temperature:
  • Operating Temperature: 0°C to 70°C (32°F to 158°F)
  • Storage Temperature: -40°C to 85°C (-40°F to 185°F)

---

Reliability and Endurance

• TBW (Total Bytes Written): 500 TBW (typical)
• MTBF (Mean Time Between Failures): 2 million hours (typical)
• Endurance: Rated for intensive read operations, ideal for environments like web servers, caching, and other read-heavy applications.
• ECC (Error Correction Code): Includes advanced ECC for data integrity.

---

Security and Data Protection

• Data Protection: Supports AES 256-bit encryption (Optional, depending on configuration).
• Power Loss Protection: Built-in power loss protection to ensure no data loss during unexpected power-down situations.

---

Environmental & Regulatory Compliance

• Operating Humidity: 5% to 95% RH (Relative Humidity, non-condensing)
• Shock Resistance:
  • Operating: 1500G/0.5ms
  • Non-operating: 1500G/0.5ms
• Vibration Resistance:
  • Operating: 2.17 Grms (5-500Hz)
  • Non-operating: 4.9 Grms (5-800Hz)
• Compliance:
  • RoHS Compliant
  • WEEE Compliant
  • CE, UL, FCC, and other regulatory certifications as applicable.

---

Warranty & Support

• Warranty: 1-year warranty or inherited Dell system warranty
• Support: Includes Dell ProSupport options for hardware support and troubleshooting.
