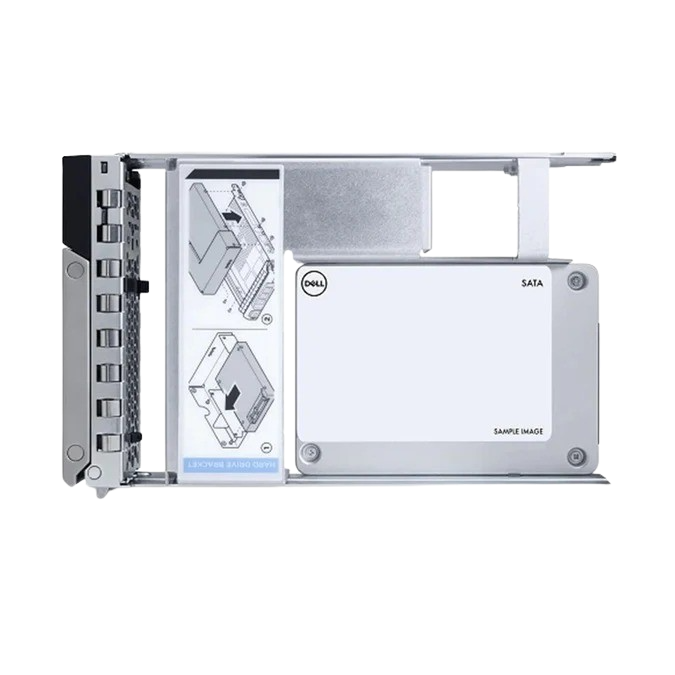

Dell 480GB SATA Read Intensive SSD 6Gbps 3.5″ Hybrid Carrier

The Dell 480GB SSD SATA Read Intensive 6Gbps (345-BEBH)  is a high-performance, 2.5-inch solid-state drive with a 3.5-inch hybrid carrier. It offers fast read and write speeds, making it ideal for read-heavy enterprise applications. With a 5-year warranty, 2 DWPD endurance, and AES-256 encryption support, it ensures reliable, secure storage for demanding workloads. roubleshooting.

Specification for Dell 480GB SSD SATA Read Intensive 6Gbps 512e 2.5in with 3.5in HYB CARR CusKit (345-BEBH)

Key Features:

• Capacity: 480GB
• Form Factor: 2.5-inch SSD with 3.5-inch hybrid carrier kit (HYB CARR)
• Interface: SATA III (6Gbps)
• Technology: Read Intensive SSD
• Sector Size: 512e (Advanced format)
• Endurance: Suitable for read-heavy workloads such as web servers, data analytics, and virtual machines.
• Compatibility: Designed for Dell systems and optimized for a variety of enterprise applications.

---

Performance:

• Sequential Read Speed: Up to 560 MB/s
• Sequential Write Speed: Up to 530 MB/s
• Random Read IOPS: Up to 75,000 IOPS
• Random Write IOPS: Up to 20,000 IOPS

---

Interface and Connectivity:

• SATA Interface: SATA 6Gbps
• Data Transfer Rate: 6Gbps (maximum theoretical)
• Power Consumption (Active): 4.2W (typical)
• Power Consumption (Idle): 0.5W (typical)

---

Reliability and Durability:

• MTBF (Mean Time Between Failures): 2 million hours
• Endurance: Rated for up to 2 DWPD (Drive Writes Per Day) for a 5-year period
• ECC (Error Correction): Supports advanced ECC to maintain data integrity

---

Physical Specifications:

• Form Factor: 2.5 inches, with a 3.5-inch hybrid carrier kit for installation in 3.5-inch drive bays
• Dimensions:
  • SSD (2.5-inch): 69.85mm x 100mm x 7mm (W x L x H)
  • Hybrid Carrier (3.5-inch): 101.6mm x 146mm x 25.4mm (W x L x H)
• Weight: Approximately 0.075 kg (SSD only) / 0.2 kg (with hybrid carrier)

---

Environmental Specifications:

• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5% to 95% relative humidity (non-condensing)
• Vibration Resistance:
  • Operating: 2.17G @ 5-800Hz
  • Non-Operating: 3.13G @ 5-800Hz

---

Data Protection and Security:

• Data Security: AES-256 bit hardware encryption (optional)
• End-to-End Data Protection: Ensures no data loss during unexpected power interruptions or failures
• Wear Leveling: Ensures even wear across the drive to prolong its lifespan

---

Warranty and Support:

• Warranty: 1-year warranty or inherited Dell system warranty
• Support: Dell’s standard enterprise support, including firmware updates and troubleshooting.

---

Use Cases:

• Enterprise Storage Systems: Suitable for web hosting, data analytics, and server storage solutions
• Read-Intensive Applications: Ideal for environments where read workloads dominate, such as email servers, streaming services, and cloud-based data services.

---

Compliance and Certifications:

• Certifications: CE, RoHS, FCC Class B, UL
• Compliance: Meets various regulatory and environmental standards, including energy efficiency certifications.
