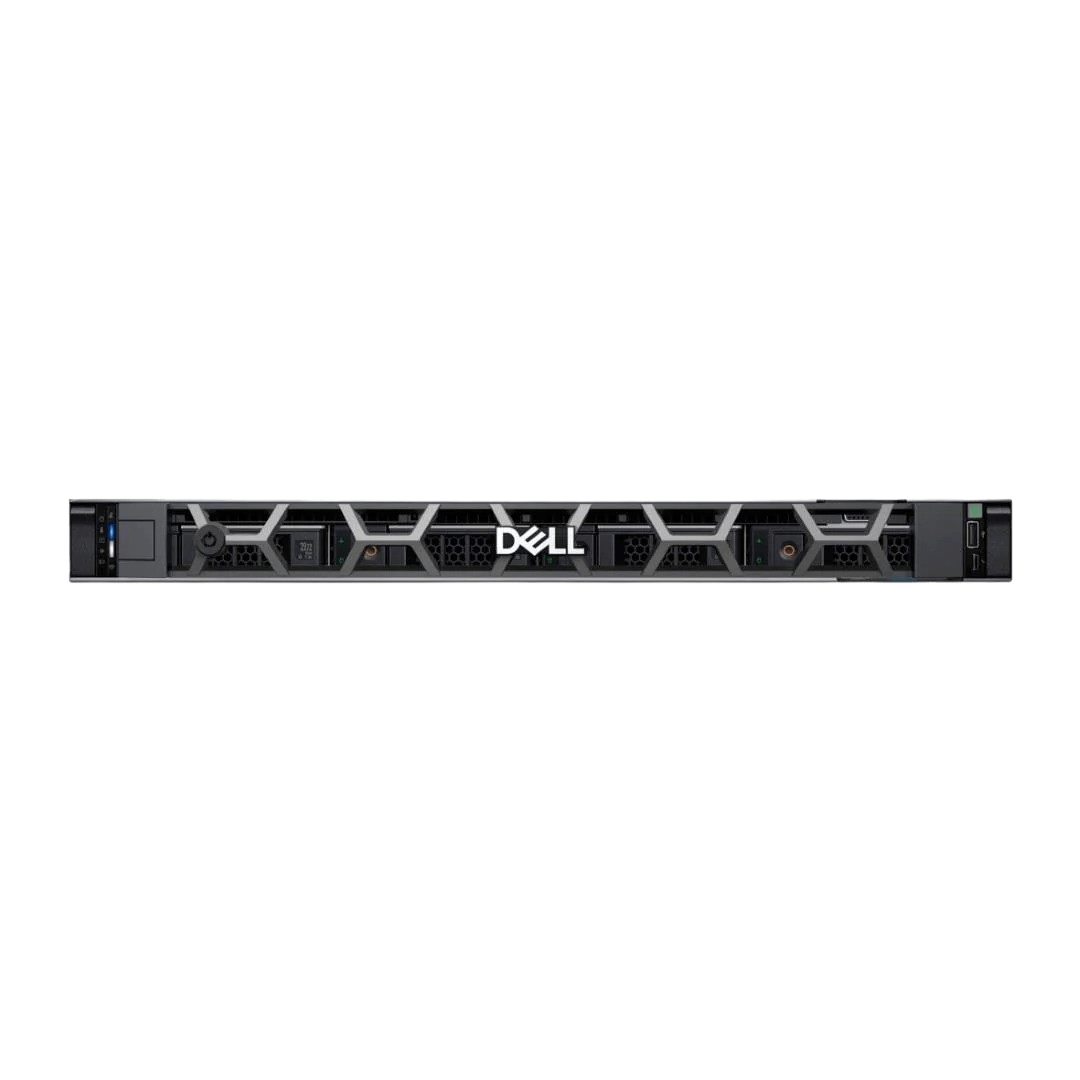

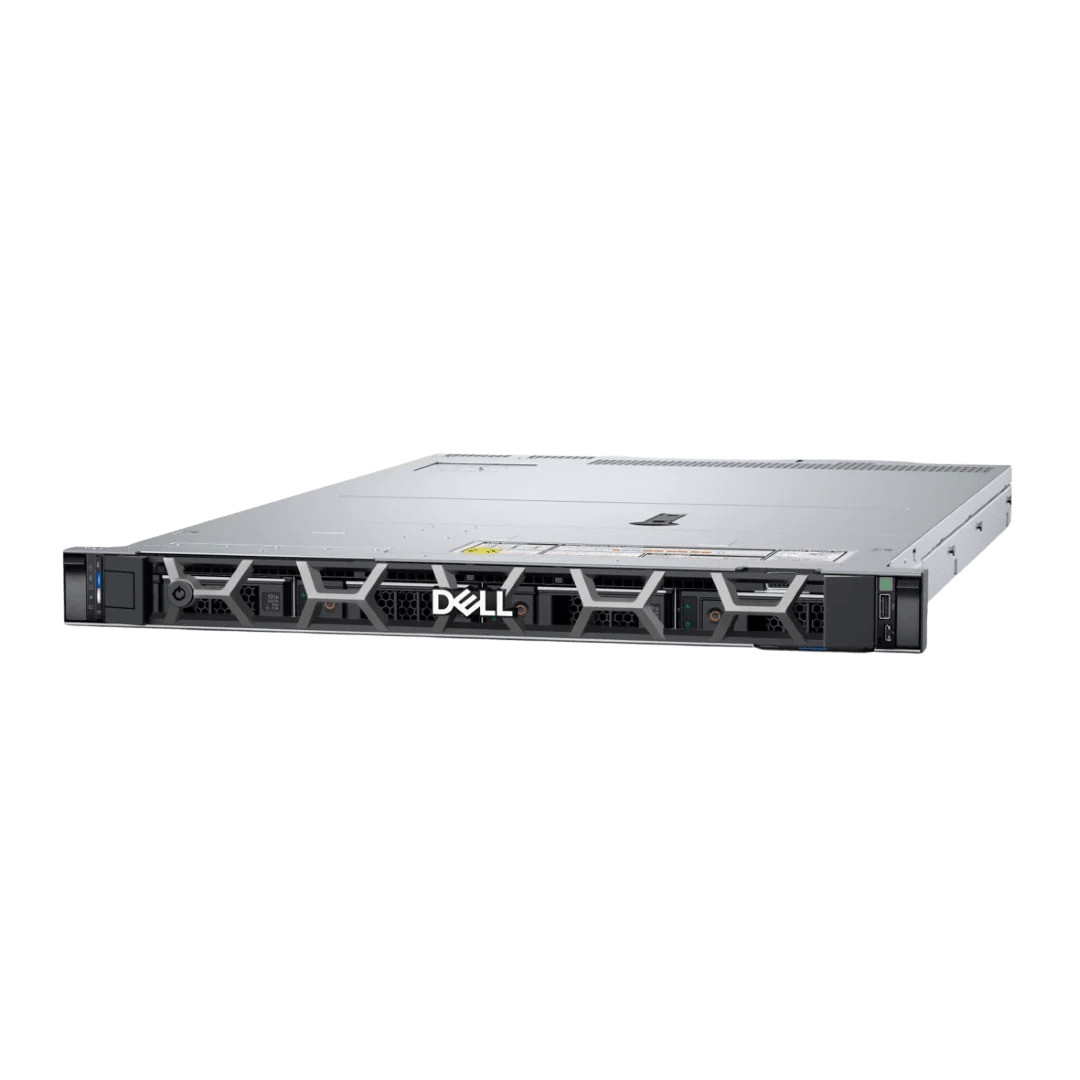

DELL PowerEdge R650XS 1U Rack Server No CPU, Memory, HDD

The DELL PowerEdge R650XS 1U Rack Server designed for flexibility and high performance. It comes without a CPU, memory, or storage, allowing for custom configurations. It supports up to two Intel Xeon Scalable processors, up to 1TB of DDR4 memory, and multiple storage options. The server includes 3 years of ProSupport for advanced technical assistance and next-business-day onsite service. Ideal for businesses needing a customizable server with scalable performance.

SPECIFICATION FOR DELL POWEREDGE R650XS (NO CENTRAL PROCESSING UNIT, NO MEMORY, NO HARD DISK DRIVE, 3 YEAR PROSUPPORT EMEA)

---

Model: DELL POWEREDGE R650XS
Part Number: PER650XS2SPL#M1C
Region: EMEA (Europe, Middle East, and Africa)
Support: 3 Years ProSupport

---

1. Overview

The DELL PowerEdge R650XS is a highly efficient, scalable, and cost-effective 1U rack server optimized for dense and high-performance workloads in modern data centers. This version of the server is provided without a Central Processing Unit (CPU), Memory, or Hard Disk Drives, allowing flexibility to tailor the system to specific workload needs.

---

2. Key Features

• Form Factor: 1U Rack Server
• Processor Support: None included (Supports Intel Xeon Scalable Processors, 3rd Generation, up to 2 CPUs)
• Memory: None included (Supports DDR4 memory, up to 32 DIMMs, up to 1TB of memory)
• Storage: None included (Supports up to 16x 2.5″ or 8x 3.5″ drives, both SSD and HDD options)
• Expansion:
  • PCIe Gen 4 support
  • Multiple network adapter options
• Networking: Integrated 10GbE or higher network adapters
• Management:
  • Integrated Dell Remote Access Controller (iDRAC9) with Lifecycle Controller for management and monitoring
  • OpenManage systems management

---

3. Performance & Scalability

• Processors: Flexible configuration with support for up to two Intel Xeon Scalable processors (3rd generation).
• Memory: Scalable up to 1TB of memory, supporting 32 DIMM slots with ECC and support for various speeds and configurations.
• Storage Options: Supports multiple configurations of SSD and HDD drives, with the ability to configure RAID through hardware RAID controllers (available separately).
• Expansion Slots:
  • Up to 4 PCIe 4.0 slots for expansion cards.
  • Flexible network and GPU card options for increased performance and specialized workloads.

---

4. Support & Warranty

• ProSupport: Includes 3 years of ProSupport, providing:
  • 24×7 access to advanced technicians.
  • Hardware and software troubleshooting assistance.
  • Next-business-day onsite service after remote diagnosis.
  • Proactive monitoring and support via Dell’s SupportAssist technology.
• Warranty: 3-year Next Business Day on-site service after remote diagnosis.

---

5. Power & Efficiency

• Power Supply: Redundant power supply options with high-efficiency certifications (up to 92%).
• Energy Efficiency: Optimized for power-efficient performance while supporting large data center deployments.

---

6. Physical Dimensions

• Height: 1U (44mm)
• Width: 430mm
• Depth: 730mm
• Weight: Typically varies based on configuration.

---

7. Customization

• Processor: Customer must select and install the compatible Intel Xeon Scalable processors.
• Memory: Customer must provide and install the required memory modules.
• Storage: Customer must provide the necessary drives (SSD/HDD) and configure storage arrays as needed.

---

8. Compliance

• Regulatory Certifications:
  • RoHS Compliant
  • Energy Star certified
  • CE Marking for the European market
  • ISO 9001 and ISO 14001 certified manufacturing

---

9. Optional Add-ons (Sold Separately)

• Processors (Intel Xeon Scalable)
• Memory (DDR4)
• Storage drives (HDD or SSD)
• Hardware RAID controllers
• Additional PCIe expansion cards
• Network interface cards

---

Note: As this unit does not come with a CPU, memory, or storage, these components must be sourced and installed separately according to the specific workload and performance requirements.
