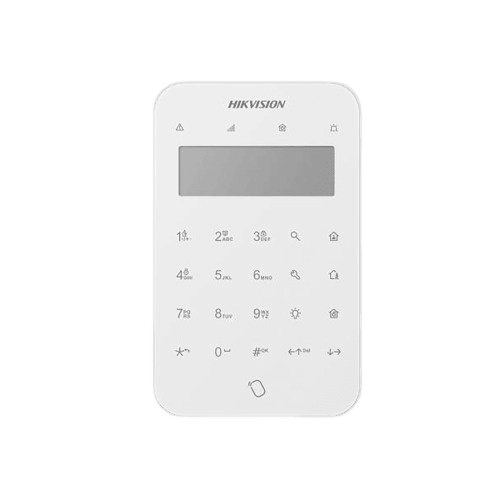

Hikvision AX Pro Series Wireless LCD Keypad

The Hikvision DS-PK1-LT-WE Wireless LCD Keypad offers a user-friendly, secure, and convenient solution for controlling Hikvision’s AX Pro Series alarm systems. With its clear display, long battery life, and secure encryption, it is an excellent option for those looking to easily manage their security system from a single, intuitive device.

General Specifications:

• Display:

  • 2.7-inch LCD screen with clear, backlit display for easy viewing.
  • Resolution: 320 x 240 pixels.

• Communication:

  • Wireless Communication: Communicates with the AX Pro alarm system via 2.4 GHz Wi-Fi.
  • Encryption: Supports AES-128 encryption for secure communication between the keypad and the control panel.

• Control Functions:

  • Arm, disarm, and manage the alarm system via the keypad.
  • Option to configure custom user codes for system control.
  • Up to 100 user codes can be programmed.

• Keypad Layout:

  • 12-key numeric keypad for easy user input.
  • Function buttons for quick access to specific commands like arming or disarming the system.

• Power Supply:

  • Powered by 3 x AA batteries (included).
  • Battery life: Approximately 2 years, depending on usage.

• Indications & Alerts:

  • Visual and audible signals for alarm status.
  • Backlight for visibility in low light environments.

Physical Specifications:

• Dimensions: 130 x 93 x 28 mm.
• Weight: Approximately 0.2 kg.

Environmental Conditions:

• Operating Temperature: -10°C to +55°C (14°F to 131°F).
• Operating Humidity: 10% to 90% (non-condensing).

Security Features:

• Tamper Protection: Anti-tamper protection to prevent unauthorized removal or tampering with the device.
• User Code Management: Supports up to 100 user codes for multiple users.

Software and Integration:

• AX Pro System Integration: Seamlessly integrates with Hikvision’s AX Pro Wireless Alarm System for centralized control.
• App Integration: Can be remotely controlled and monitored via the Hik-Connect app for smartphones.

Key Features:

• Wireless LCD Display: 2.7-inch display with backlight for clear, easy-to-read status.
• Control & Management: Arm/disarm, user code management, and system monitoring via the keypad.
• Long Battery Life: Powered by AA batteries with up to 2 years of battery life.
• Secure Communication: AES-128 encryption for secure wireless communication.
• Tamper Protection: Built-in tamper detection for added security.
• App Control: Integrates with Hik-Connect for remote management.

Applications:

• Ideal for residential, small businesses, and commercial properties requiring an easy-to-use, secure method to control and manage their Hikvision AX Pro Alarm System.
