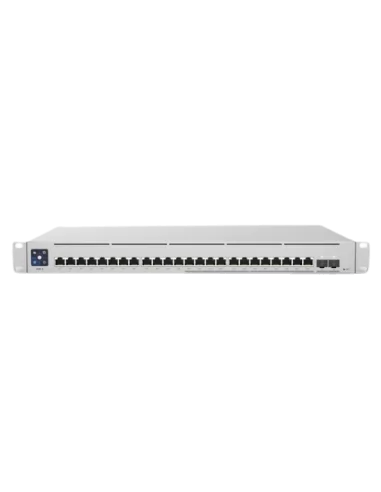

Ubiquiti UniFi – Switch Enterprise 24 400W PoE

The Ubiquiti UniFi Switch Enterprise 24 PoE (USW-Enterprise-24-PoE) is a high-performance, fully managed Layer 3 switch designed to meet the demanding needs of modern enterprise networks. It features 24 Power over Ethernet (PoE+) ports—12 at 2.5GbE and 12 at 1GbE—capable of delivering up to 30W per port, with a total PoE budget of 400W. Additionally, the switch includes two 10G SFP+ ports for high-speed uplink connectivity.

Built for scalability and reliability, the USW-Enterprise-24-PoE offers a switching capacity of 124 Gbps and a forwarding rate of 92.25 million packets per second. Its 1.3-inch LCM color touchscreen provides real-time system and connection insights, facilitating quick diagnostics and management. The switch supports advanced Layer 3 features, including static routing, inter-VLAN routing, and DHCP server/relay, all manageable via the UniFi Network application.

🔧 Hardware Specifications

• Ports:

  • 12 × 1GbE RJ45 PoE+ ports

  • 12 × 2.5GbE RJ45 PoE+ ports

  • 2 × 10G SFP+ uplink ports

• Switching Capacity: 124 Gbps

• Forwarding Rate: 92.25 million packets per second

• Total Non-Blocking Throughput: 62 Gbps

• Max PoE Output: Up to PoE+

• Total PoE Availability: 400W

• Max PoE Wattage per Port: 34.2W

• Power Supply: Internal AC/DC, 550W

•  Input: Universal AC input (100–240V AC, 50/60 Hz)

• DC Input: USP RPS (52V DC, 7.7A)

• Max Power Consumption: 60W (excluding PoE output)

• Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7 inches)

• Weight:

  • Without Mount: 5.1 kg (11.3 lb)

  • With Mount: 5.2 kg (11.5 lb)

• Enclosure Material: SGCC Steel

• Operating Temperature: -5 to 40°C (23 to 104°F)

•  Humidity: 10–90% non-condensing

• Certifications: CE, FCC,

🖥️ Management & Features

• Management Interface: Ethernet In-Band

• Display: 1.3″ LCM color touchscreen with AR switch management

• ESD/EMP Protection:

  • Air: ±16kV

  • Contact: ±12kV

• Modes: SMB Layer 3 PoE GbE switch

• LED Indicators:

  • System: Status

  • SFP+: Link/Activity

🔄 Layer 3 Features

• Routing:

  • Static Routing

  • Inter-VLAN Routing

• DHCP:

  •  Server

  • DHCP Relay

• Management:

  • UniFi Network Application (web and mobile)

🔄 Layer 2 Features

• Aggregation:

  • LACP Port Aggregation

• Spanning Tree:

  • STP & RSTP

• Quality of Service:

  • QoS (DSCP)

• Access Control:

  • 802.1X Control

  • MAC-Based ACLs & Device Isolation

  • DHCP Snooping & Guarding

  • Egress Rate Limit

  • Flow Control

  • Storm Control

  • Multicast & Broadcast Rate Limiting

  • MAC Address Blocking

  • IP-Based ACLs & Network Isolation

  • MAC-Based Port Restriction

  •  Isolation

  • Port Mirroring

  • Jumbo Frames

  • LLDP-MED

  • Voice VLAN

  • Loop Protection

• Multicast Management:

  • Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

  • IGMP Snooping
