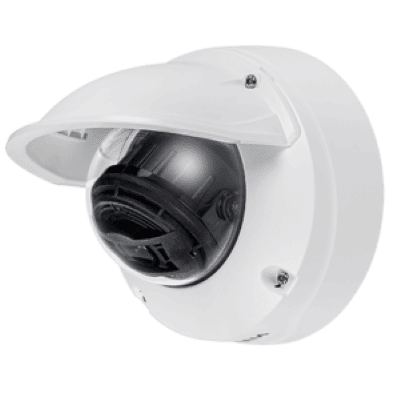

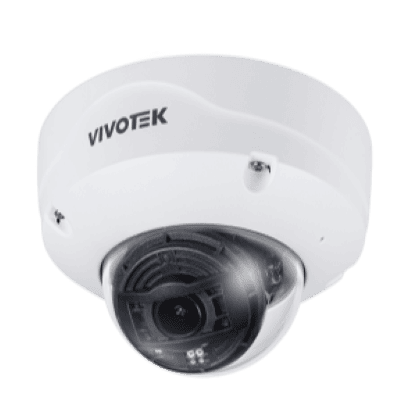

Vivotek 2MP Outdoor Network Dome Camera with Heater

The VIVOTEK FD9365-EHTV-v2 is a newly revamped outdoor fixed dome network camera that delivers 1920×1080 resolution at up to 60 fps. This well-designed, outdoor-ready camera features a built-in microphone, I/O functionality, the most up to date VIVOTEK SNV II, WDR Pro II and Smart IR III technology to deliver clear image quality in both low light and high contrast environments. It also offers a variety of built-in cybersecurity capabilities and AI-powered video analytics with IP66, IP67, IP6K9K, IK10+, NEMA 4X and wide temperature range from -40°C to 60°C without heaters making it ideal for wide-ranging outdoor surveillance scenarios.

Model

• FD9365-EHTV-v2

Camera Features

• Image Sensor: 1/2″ Progressive CMOS
• Max Resolution: 1920 x 1080 (2MP)
• Lens Type: Motorized, Vari-focal, Remote Focus
• Focal Length: 4 ~ 9 mm (equivalent focal length @ 1/2.8″)
• Aperture: F1.3 ~ F2.2
• Iris Type: P-iris
• Field of View:
  • Horizontal: 120° ~ 46°
  • Vertical: 60° ~ 26°
  • Diagonal: 148° ~ 53°
• Shutter Time: 1 sec. to 1/100,000 sec.
• WDR Technology: WDR Pro II
• Day/Night: Yes (Removable IR-cut Filter)
• IR Illuminators: Effective up to 50 meters with Smart IR II
• Minimum Illumination:
  • 0.040 lux @ F1.3 (Color), 50IRE
  • 0.015 lux @ F1.3 (Color), 30IRE
  • <0.005 lux @ F1.3 (B/W)
  • 0 lux with IR on

Pan/Tilt/Zoom

• Pan Range: ±175°
• Tilt Range: 80°
• Rotation Range: ±175°
• ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

Video

• Video Compression: H.265, H.264, MJPEG
• Maximum Frame Rate: 60 fps @ 1920×1080
• Maximum Streams: 3 video streams (up to 8 configurable profiles)
• S/N Ratio: 58 dB
• Dynamic Range: 140 dB

Audio

• Audio Capability: Two-way audio (Full duplex)
• Audio Compression: G.711, G.726, MPEG-2 AAC-LC
• Effective Range: 5 meters

Network

• Users: Live viewing for up to 10 clients
• Protocols: Supports various protocols including HTTPS, IPv4, IPv6, etc.
• ONVIF: Profile G, S, T supported

Power

• Power Input: AC 24V / DC 12V / IEEE 802.3at PoE Class 4
• Power Consumption: Max. 13.11W (IR on)

Dimensions and Weight

• Dimensions: Ø 174 x 123 mm
• Weight: 1.38 kg

Certifications

• Weatherproof Rating: IP66/67
• IK Rating: IK10+

Operating Conditions

• Temperature:
  • Starting: -30°C to 60°C (-22°F to 140°F)
  • Working: -50°C to 60°C (-58°F to 140°F) (IR off), -50°C to 50°C (-58°F to 122°F) (IR on)
• Humidity: 98% RH (non-condensing)

The VIVOTEK FD9365-EHTV-V2 is versatile and suitable for various surveillance applications, including:

1. Retail Environments: Monitoring customer behavior, preventing theft, and ensuring safety.
2. Parking Lots: Enhancing security and monitoring vehicle activity, including license plate recognition.
3. Public Spaces: Surveillance in parks, squares, and transportation hubs for crowd control and safety.
4. Schools and Universities: Providing security for campuses, monitoring entrances, and protecting against unauthorized access.
5. Warehouses and Industrial Facilities: Overseeing operations, monitoring for safety compliance, and deterring theft.
6. Banks and Financial Institutions: Ensuring security in and around ATMs and branches.
7. Critical Infrastructure: Monitoring utility sites, transportation systems, and other critical areas to enhance security.
8. Smart Cities: Integrating with urban infrastructure for traffic management, public safety, and event monitoring.
