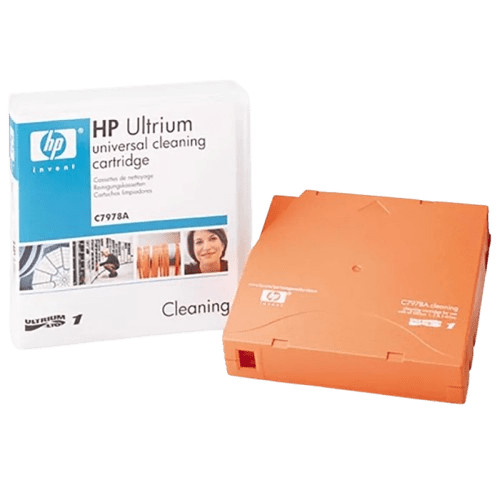

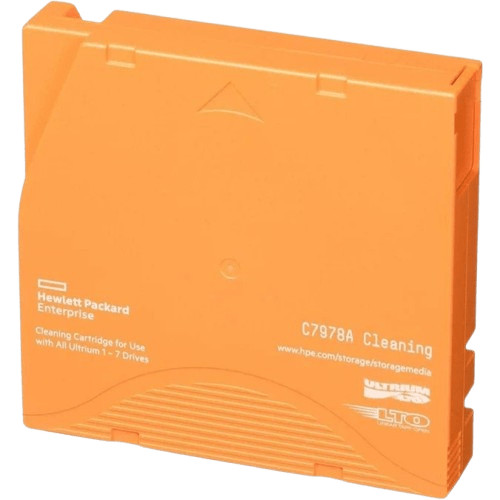

HPE LTO Cleaning Tape Cartridge for LTO-1 to LTO-9 Drives

The HPE LTO Cleaning Tape Cartridge is designed to maintain the performance of LTO tape drives by cleaning the drive heads. Compatible with LTO-1 to LTO-9 drives, it provides up to 50 cleaning cycles per cartridge. The tape ensures reliable operation by removing dust and debris, helping to prevent errors and prolong the lifespan of your tape drive. It features a 120-meter tape length and operates within a range of 10°C to 45°C.

HPE LTO Cleaning Tape Cartridge Specification

Product Name: HPE LTO Cleaning Tape Cartridge

Part Number: (varies by model, typically labeled as C7978A or C7979A, depending on LTO generation)

1. General Description

The HPE LTO Cleaning Tape Cartridge is designed for use with Hewlett Packard Enterprise (HPE) LTO (Linear Tape-Open) tape drives and libraries. This cleaning tape cartridge is essential for maintaining optimal performance by cleaning the tape heads and drive components. It is specifically engineered for use with LTO tape drives to remove dust, dirt, and debris, ensuring proper operation and extending the life of the tape drive.

2. Key Features

• Compatibility: Compatible with all LTO tape drives and libraries (LTO-1, LTO-2, LTO-3, LTO-4, LTO-5, LTO-6, LTO-7, LTO-8, and LTO-9).
• High-Quality Cleaning: Effectively removes dust, dirt, and particles from the tape drive heads, which can degrade the performance of the drive and lead to data read/write errors.
• Durability: Each cleaning tape is designed for multiple uses (up to 50 uses per cartridge).
• Ease of Use: The cartridge is easy to load into the drive and is automatically recognized by the drive for cleaning operations.
• Reliable Performance: Ensures the longevity of the drive by maintaining optimal head cleanliness and avoiding unnecessary wear on tapes.

3. Physical Specifications

• Tape Format: LTO Cleaning Tape
• Tape Length: Approximately 120 meters
• Tape Width: Standard LTO width (12.65 mm)
• Cartridge Size: Standard LTO tape cartridge form factor (approximately 105mm x 105mm x 21mm)
• Weight: Approximately 0.1 kg (varies slightly by model)

4. Environmental Conditions

• Operating Temperature: 10°C to 45°C (50°F to 113°F)
• Storage Temperature: -40°C to 65°C (-40°F to 149°F)
• Relative Humidity (Operating): 20% to 80% (non-condensing)
• Relative Humidity (Storage): 10% to 90% (non-condensing)

5. Usage Instructions

• Load the cleaning cartridge into the tape drive as per the manufacturer’s instructions.
• Initiate the cleaning process from the drive’s software interface or via the drive’s on-board controls.
• After completing the cleaning cycle, the tape will be ejected automatically.
• The cleaning tape should be replaced once the drive reports that cleaning is required (usually after 50 cleaning cycles).

6. Performance and Warranty

• Usage Lifespan: Designed for up to 50 cleaning operations per cartridge.
• Warranty: Typically covered by the same warranty as other HPE products (1-year limited warranty or as per the warranty terms for the specific product series).

7. Ordering Information

• HPE Part Number: Typically C7978A (LTO Cleaning Tape for LTO-1 to LTO-4), C7979A (LTO Cleaning Tape for LTO-5 to LTO-8), but varies by generation.

Note: The number of cleaning cycles supported and specific drive compatibility may vary slightly between different LTO generations and cartridge versions. Always refer to the specific documentation for the LTO drive and cartridge being used.

Conclusion

The HPE LTO Cleaning Tape Cartridge is an essential tool for maintaining the cleanliness and optimal performance of LTO tape drives. It is designed to be compatible with multiple generations of LTO drives and offers reliable and efficient cleaning to ensure the longevity and efficiency of your backup systems.
