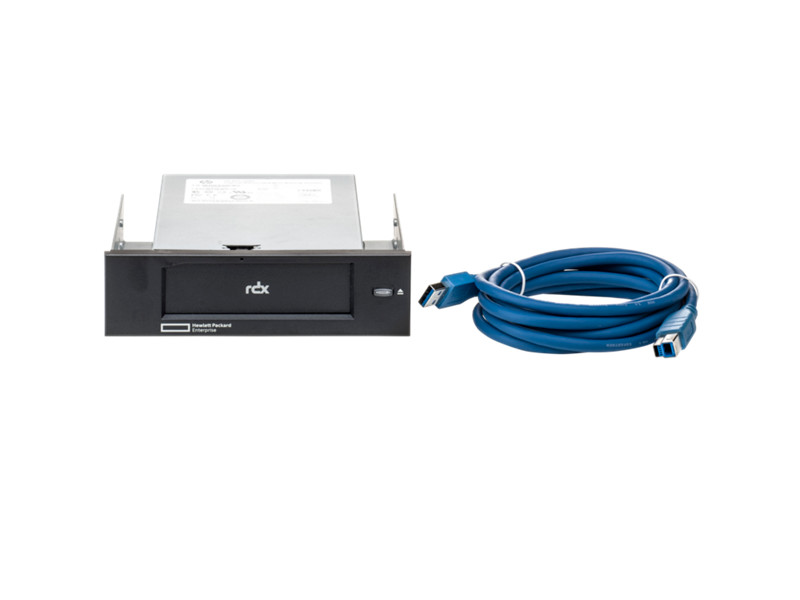

HPE RDX USB 3.0 Internal Docking Station Removable Backup

The HPE RDX USB 3.0 Internal Docking Station is an internal device that allows you to use HPE RDX removable disk cartridges for backup and data storage. It connects via USB 3.0 to the host system, offering high-speed data transfer rates of up to 5Gbps. This docking station is compatible with various RDX cartridge capacities (500GB to 4TB) and is designed to fit in a 3.5-inch drive bay. It is ideal for secure, scalable data backup solutions in small to medium-sized businesses. The device is hot-swappable and supports encryption for data security.

HPE RDX USB 3.0 Internal Docking Station Specifications

General Information:

• Model Number: HPE RDX USB 3.0 Internal Docking Station
• Product Type: Internal docking station for HPE RDX removable disk cartridges
• Form Factor: 3.5-inch internal drive bay

Connectivity:

• Interface: USB 3.0 (SuperSpeed), backward compatible with USB 2.0
• Connector Type: USB Type-A (for data transfer)
• Data Transfer Rate: Up to 5Gbps with USB 3.0 (up to 480Mbps with USB 2.0)
• Host Interface: USB 3.0 port on the motherboard or compatible expansion card

Performance:

• Data Transfer Speed: Supports high-speed data transfer, optimized for backup and data retrieval with RDX removable disks
• Access Time: Fast random access to the RDX cartridge for quick data backup and restore operations

Power:

• Power Supply: Draws power from the system’s power supply (dependent on host system)
• Power Requirements: Typically, 5V DC via USB 3.0, with an additional power connector from the power supply unit for enhanced power stability

Compatibility:

• RDX Cartridges Supported: Compatible with HPE RDX 500GB, 1TB, 2TB, 3TB, and 4TB removable disk cartridges
• Operating System Support: Works with Windows, Linux, and other systems supporting USB 3.0
• Backup Software Compatibility: Compatible with HPE RDX Backup Software or other third-party backup solutions
• Drive Bays: Designed for 3.5-inch drive bays but can be used in 5.25-inch bays with an adapter (not included)

Physical Dimensions:

• Height: 1.0 inches (25.4mm)
• Width: 4.0 inches (101.6mm)
• Depth: 5.8 inches (147.3mm)
• Weight: Approximately 0.5 pounds (227g)

Operating Environment:

• Operating Temperature: 5°C to 50°C (41°F to 122°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 20% to 80% non-condensing
• Vibration (Operating): 0.25G peak, 5–500Hz
• Shock (Operating): 40G peak, 2ms

Security Features:

• Data Encryption: Supports encryption for secure backups when used with encrypted RDX cartridges
• Password Protection: Optional software-based password protection when used with compatible backup software

Key Features:

• Hot Swappable: Allows for easy cartridge swapping without shutting down the system
• Durability: Designed for continuous operation with removable disk cartridges
• Portability: The removable RDX disks allow for offsite backup storage, enabling secure data protection.

Included Components:

• Docking Station
• USB Cable (USB 3.0 Type-A to Type-B)
• Mounting Screws for 3.5-inch bay installation
• Documentation and Quick Start Guide

Warranty:

• Warranty: Typically, 1-year warranty
